Diagnostic Procedure
For diagnostic procedure, see
Fig 1
and
Fig 2
.

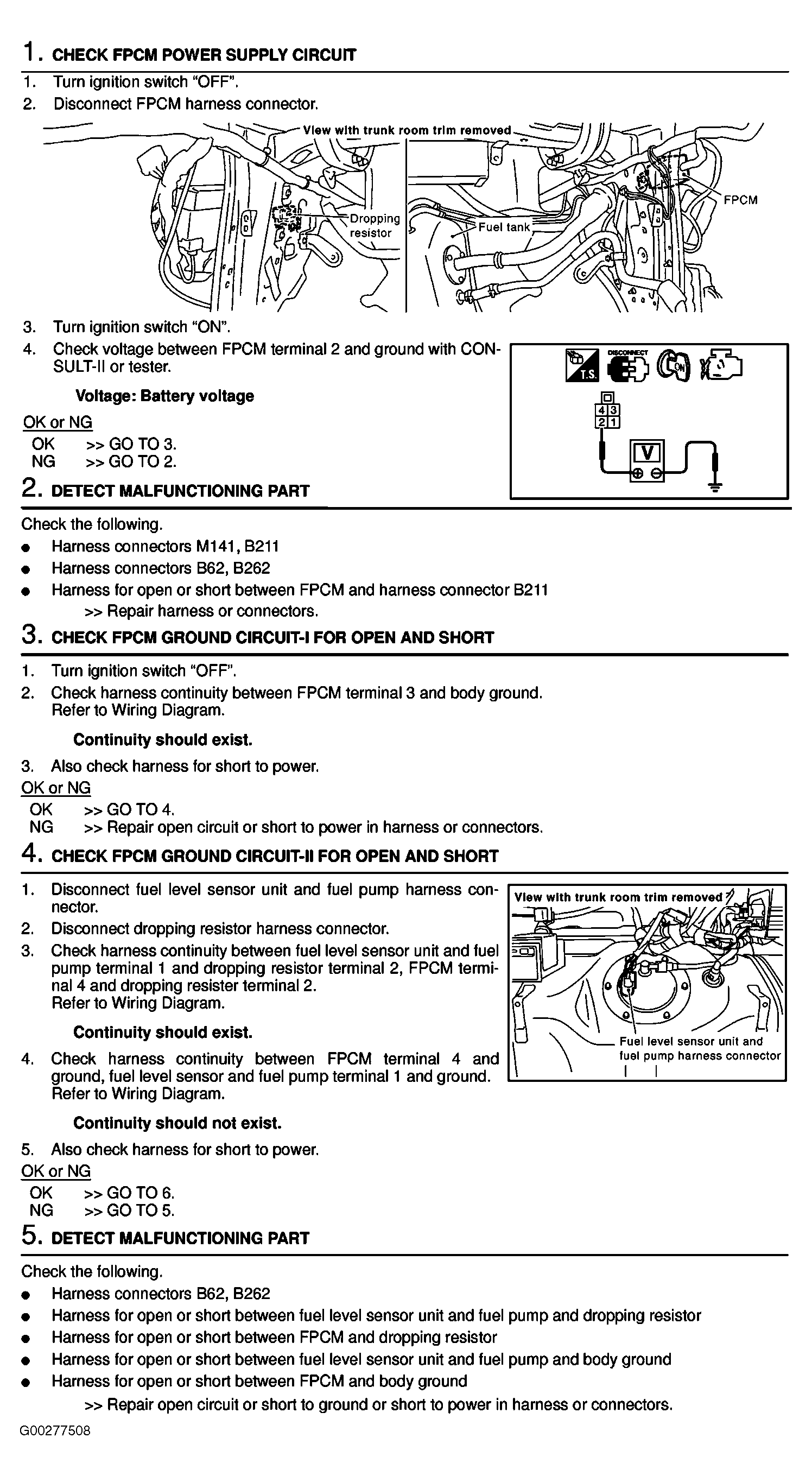

Fig 1: Diagnostic Procedure (Steps 1-5)
Courtesy of NISSAN MOTOR CO., U.S.A.

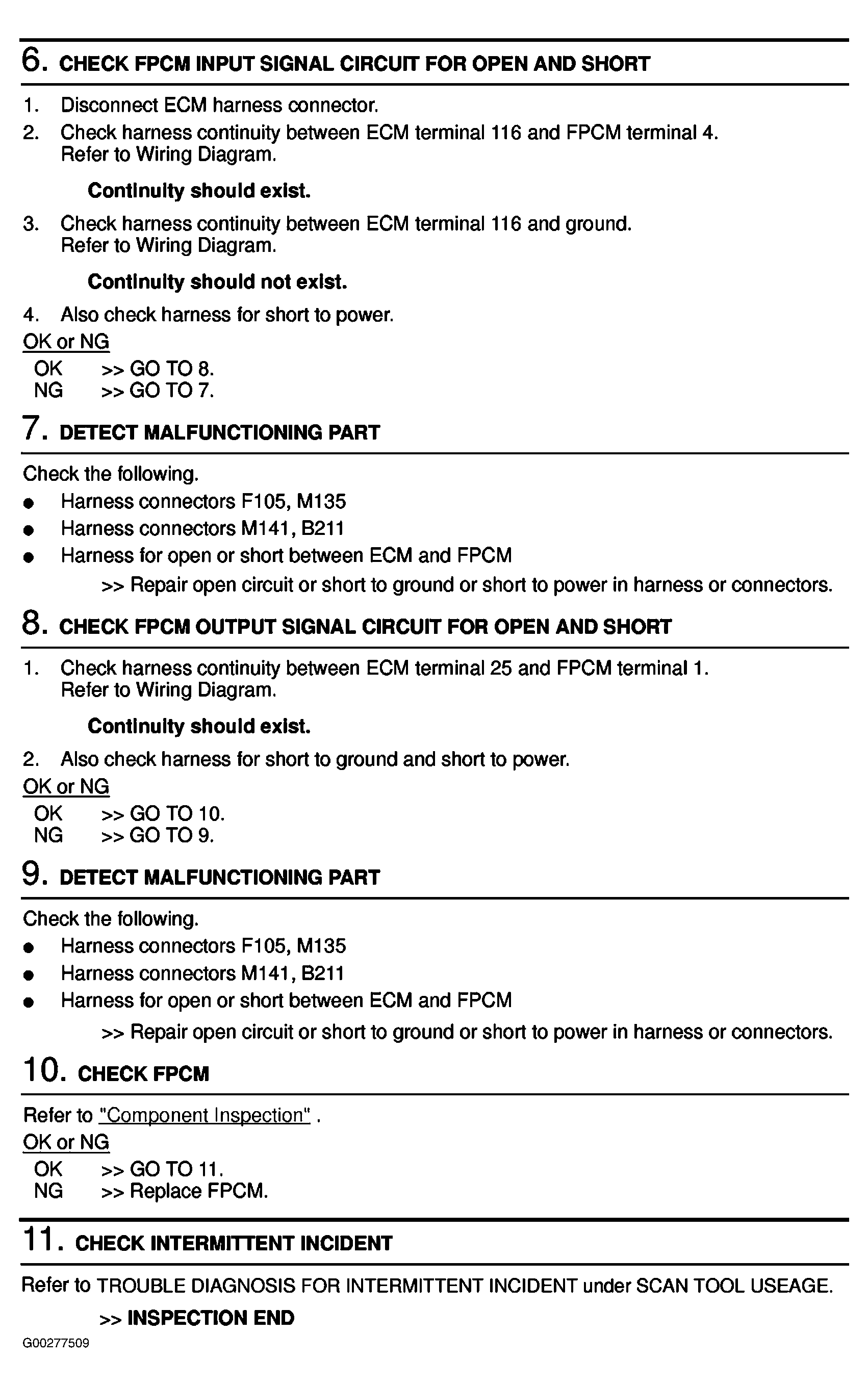

Fig 2: Diagnostic Procedure (Steps 6-11)
Courtesy of NISSAN MOTOR CO., U.S.A.
