Overall Function Check
For overall function check, see
Fig 1
.

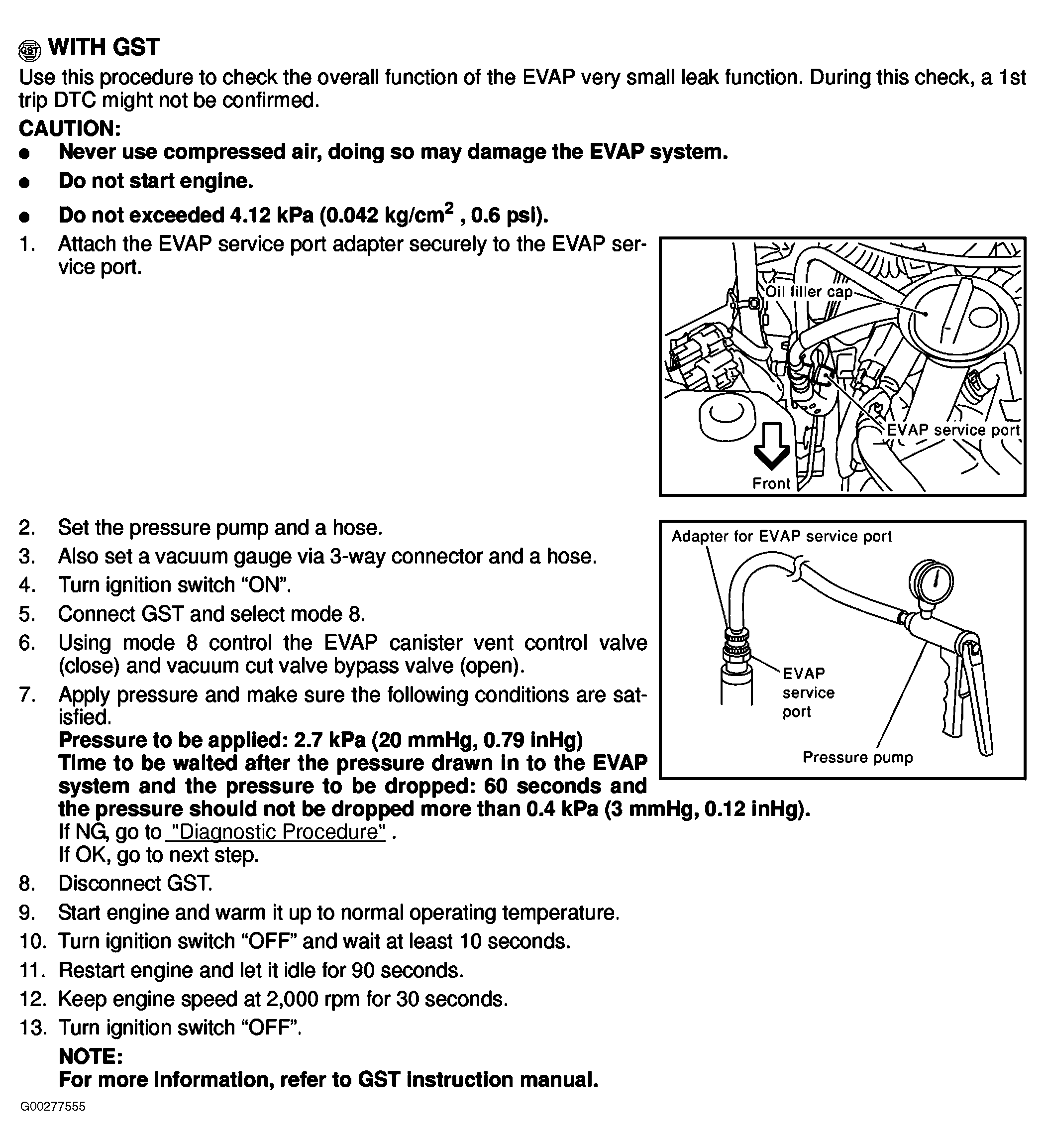

Fig 1: Overall Function Check
Courtesy of NISSAN MOTOR CO., U.S.A.
