On-Board Diagnostics: Notes
ECM detects malfunctions related to engine sensors or actuators. OBD-II monitors emission related components and can store Diagnostic Trouble Codes (DTCs), 1st trip DTCs, freeze-frame data, 1st trip freeze-frame data and System Readiness Test (SRT) information. Using a scan tool, this data and DTC information can be retrieved to assist in diagnosing problems. The Malfunction Indicator Light (MIL) can be used for code retrieval and fuel feedback monitoring.

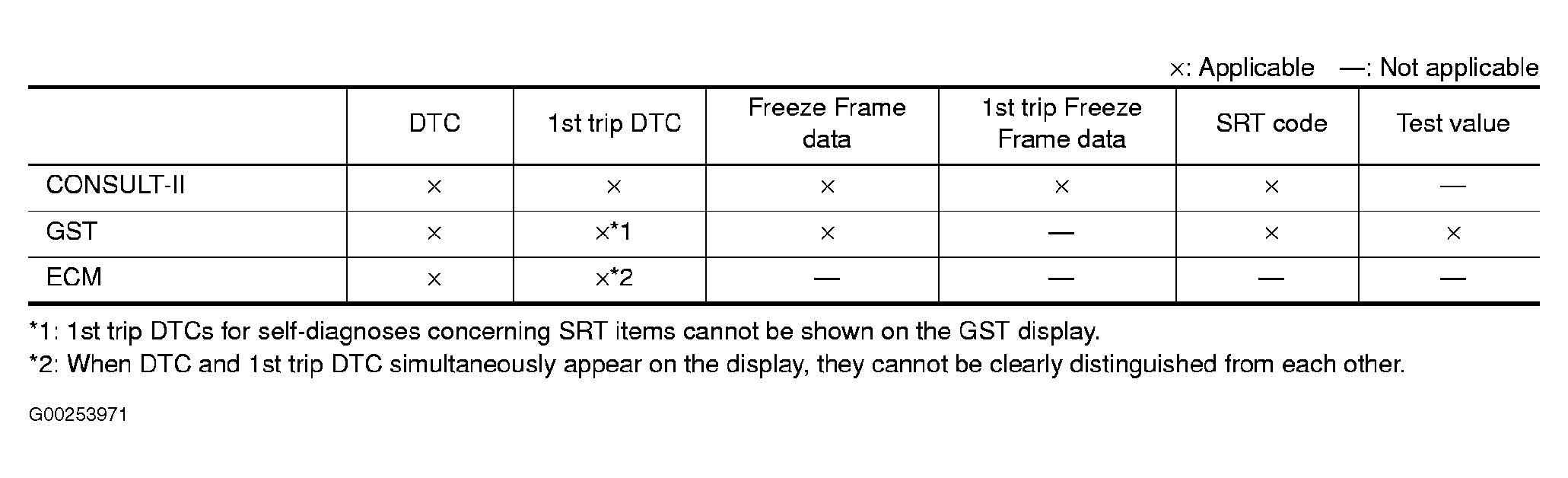

When a malfunction is detected for the 1st time, the 1st trip DTC and 1st trip freeze frame data are stored in ECM memory. However, in most instances, MIL will not be illuminated. If the same malfunction is detected on the next trip (under similar conditions), MIL will be illuminated and a DTC is stored (2nd trip detection logic). If a misfire or fuel system malfunction should occur during 1st trip, MIL may be illuminated or flash. DTC and freeze-frame information will be stored to aid in diagnostics by specifying operating conditions when DTC was set. Some 1st trip DTC freeze frame data is not viewable with Generic Scan Tool (GST). See Fig 1 .
