Driving Patterns

NOTE: Driving patterns are also referred to as drive cycles.

For driving patterns and explanation of driving patterns, see Fig 1 -Fig 4 .

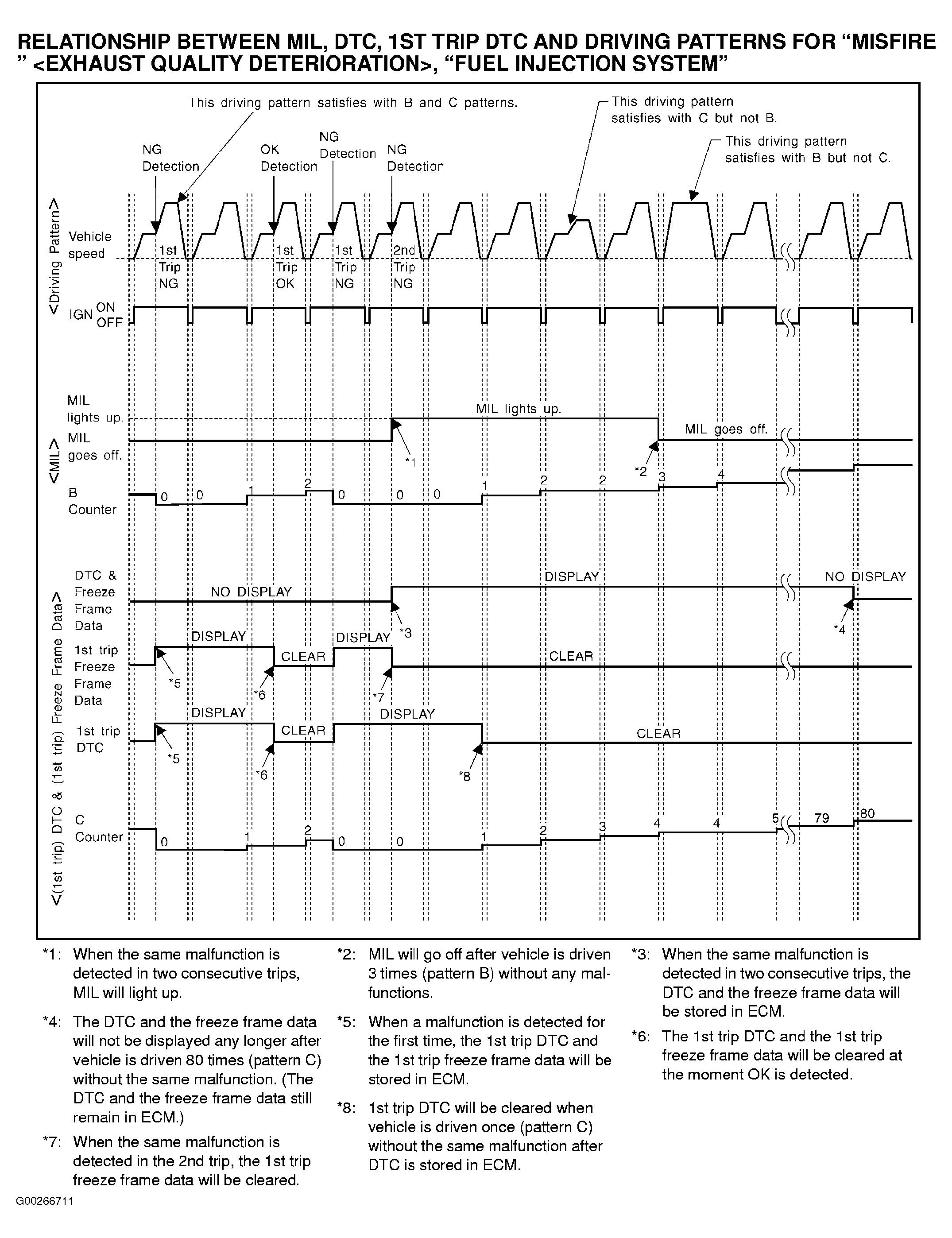

Fig 1: Relationship Between MIL, DTC, 1ST Trip DTC & Driving Patterns For Misfire & Fuel Injection System
G00266711Courtesy of NISSAN MOTOR CO., U.S.A.

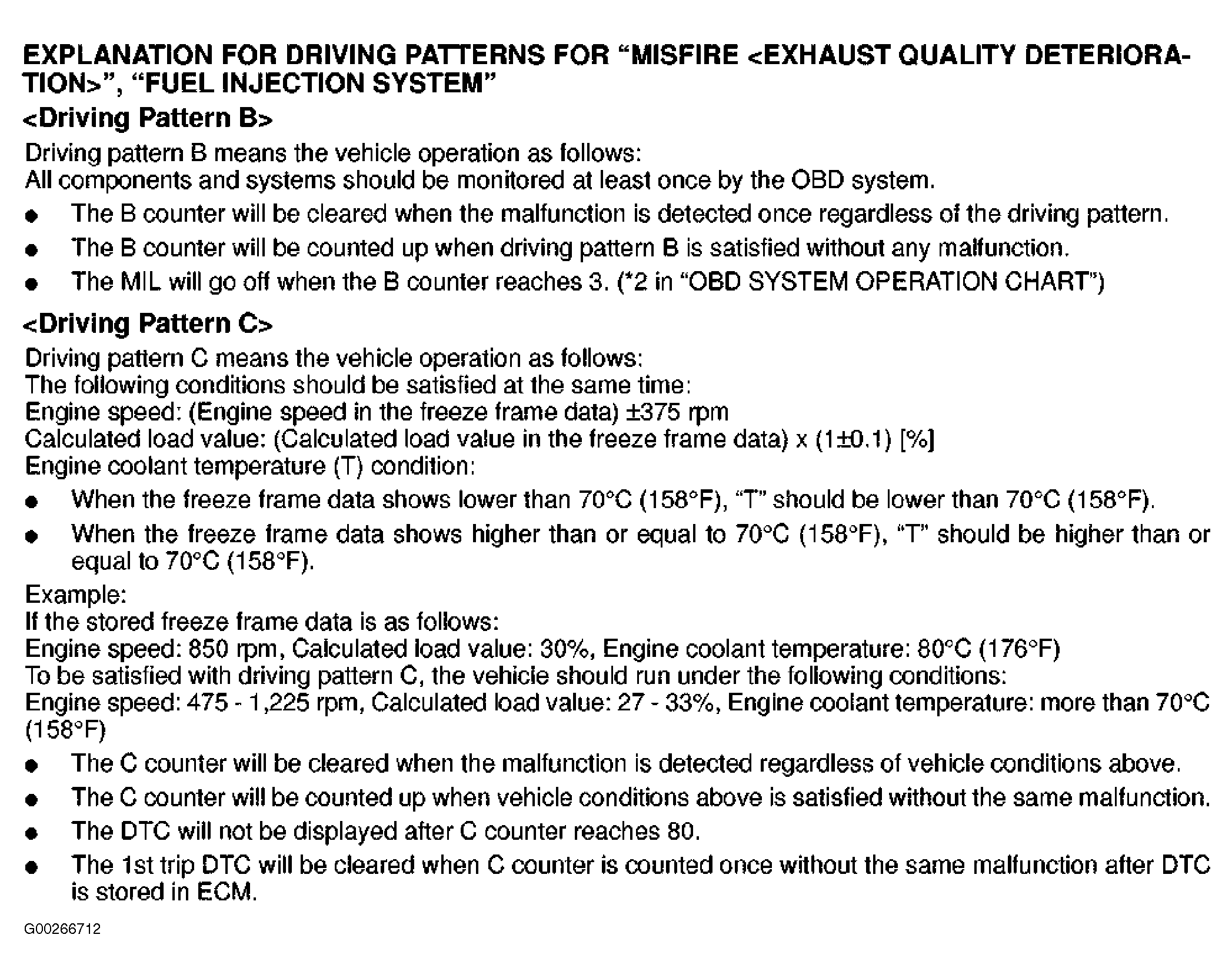

Fig 2: Explanation For Driving Patterns For Misfire & Fuel Injection System
G00266712Courtesy of NISSAN MOTOR CO., U.S.A.

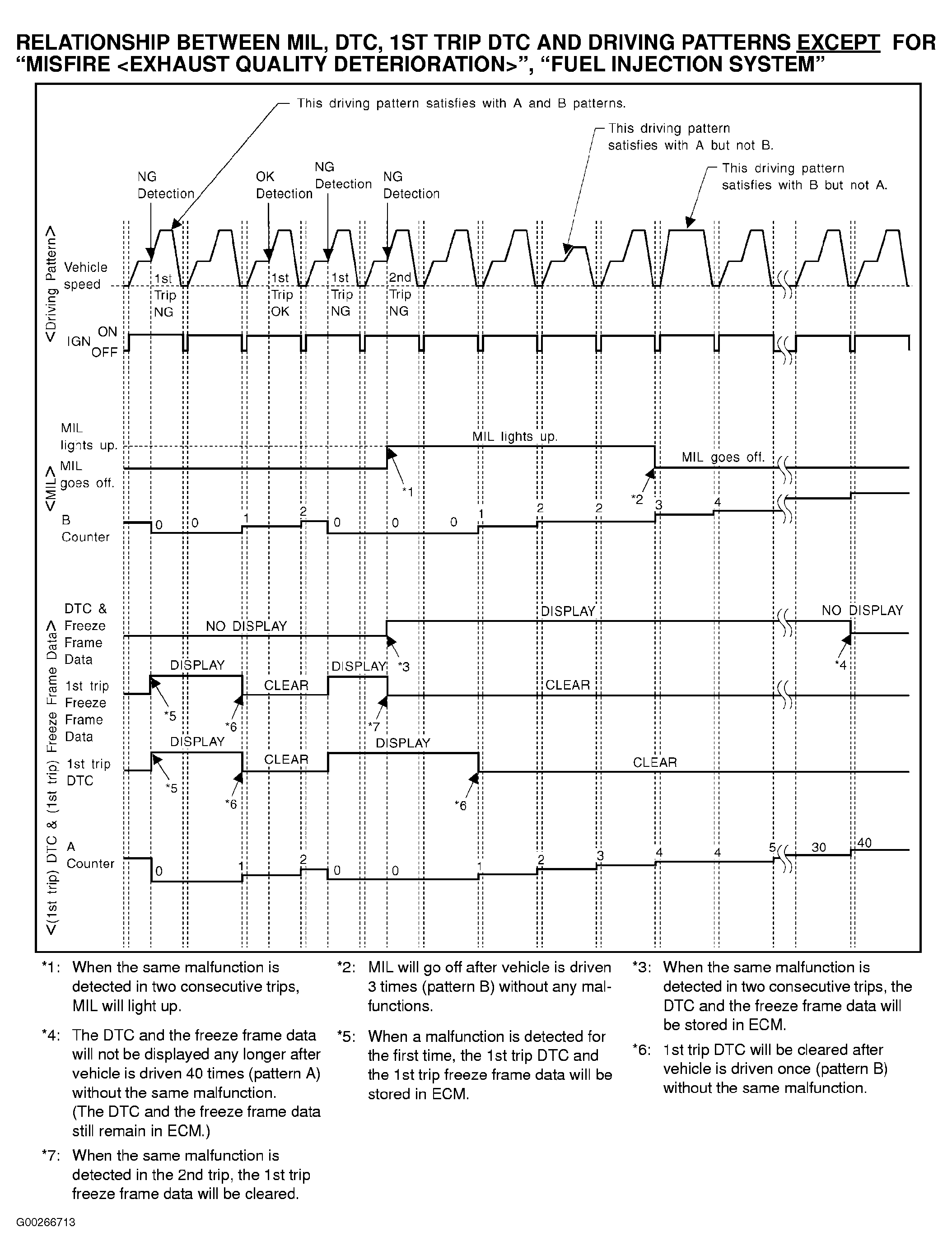

Fig 3: Relationship Between MIL, DTC, 1ST Trip DTC & Driving Patterns Except For Misfire & Fuel Injection System
G00266713Courtesy of NISSAN MOTOR CO., U.S.A.

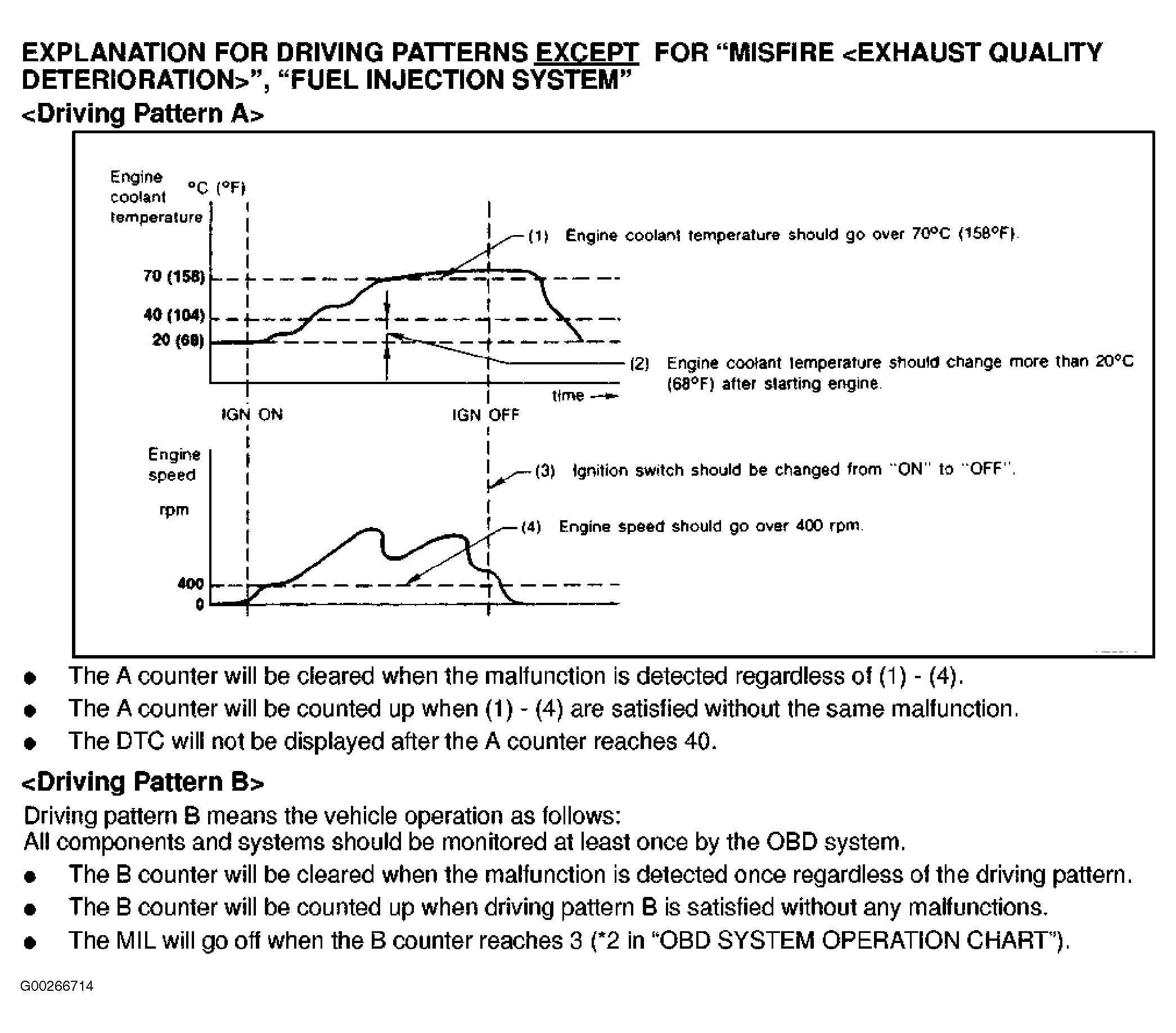

Fig 4: Explanation For Driving Patterns Except For Misfire & Fuel Injection System
G00266714Courtesy of NISSAN MOTOR CO., U.S.A.
