Setting SRT Codes

To set all SRT codes as complete, drive vehicle according to procedure shown in illustrations. See Fig 1 and Fig 2 . Perform driving procedure one or more times. If driving procedure is interrupted, repeat procedure. Operate vehicle with shift lever in "D" position and overdrive turned on.

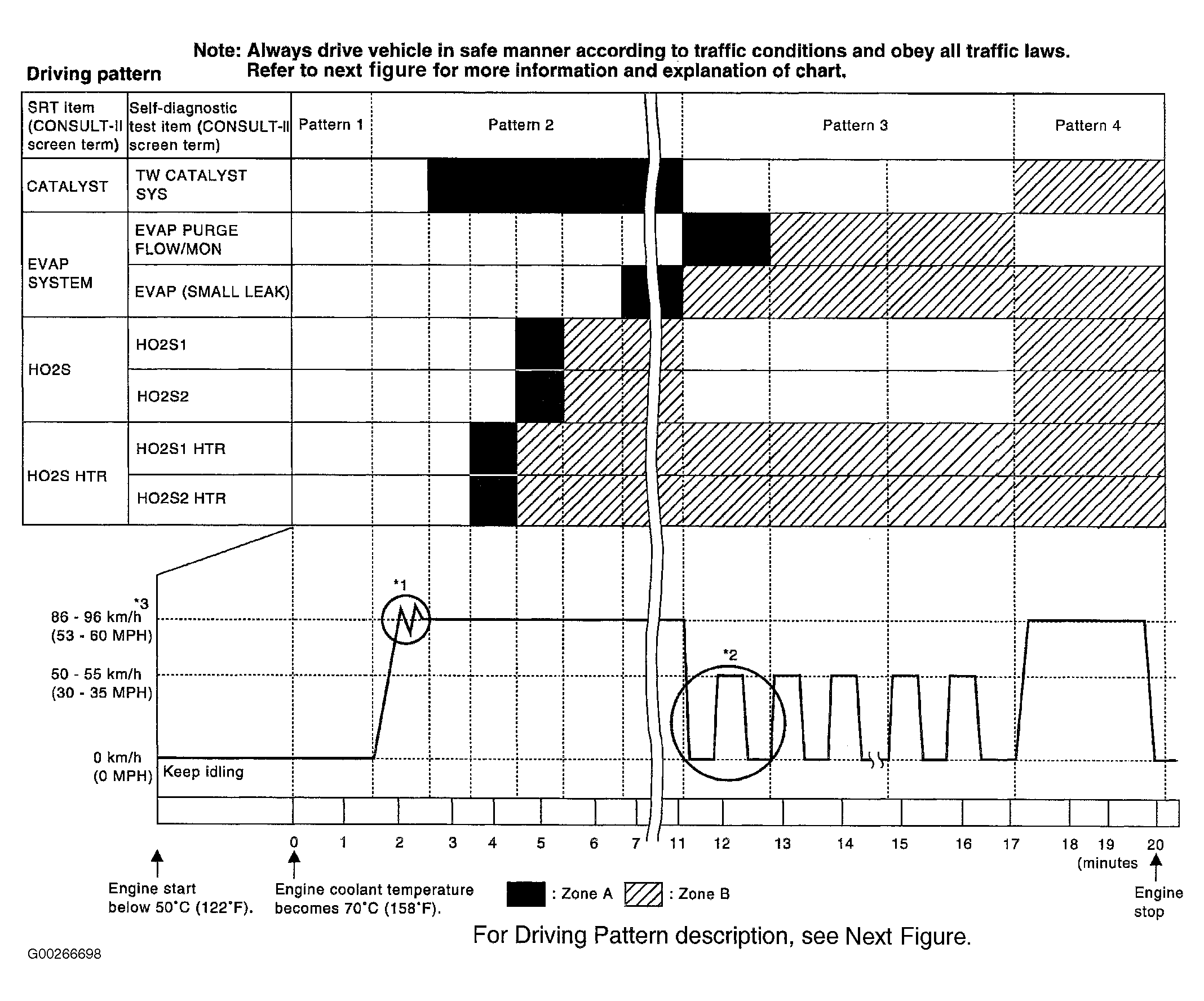

Fig 1: View Of Driving Pattern For Setting System Readiness Test (SRT) Codes

Courtesy of NISSAN MOTOR CO., U.S.A.

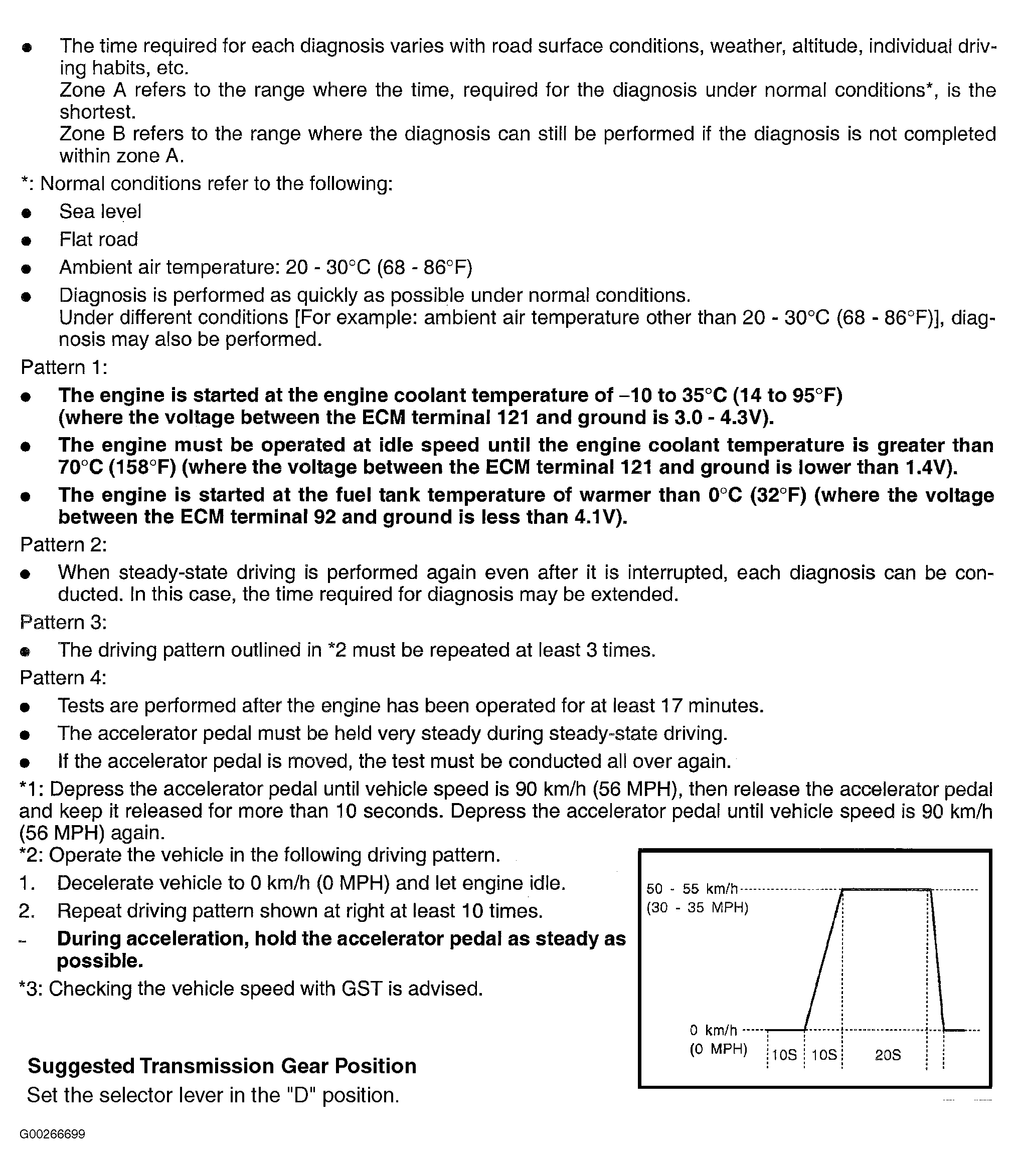

Fig 2: Description Of Driving Patterns

Courtesy of NISSAN MOTOR CO., U.S.A.
