Toe-In Inspection

Measure toe-in using the following procedure.

1. Bounce front of vehicle up and down to stabilize the posture.
2. Push vehicle straight ahead about 5 m (16 ft).
3. Put a mark on base line of the tread (rear side) of both tires at the same height of hub center. These are measuring points.

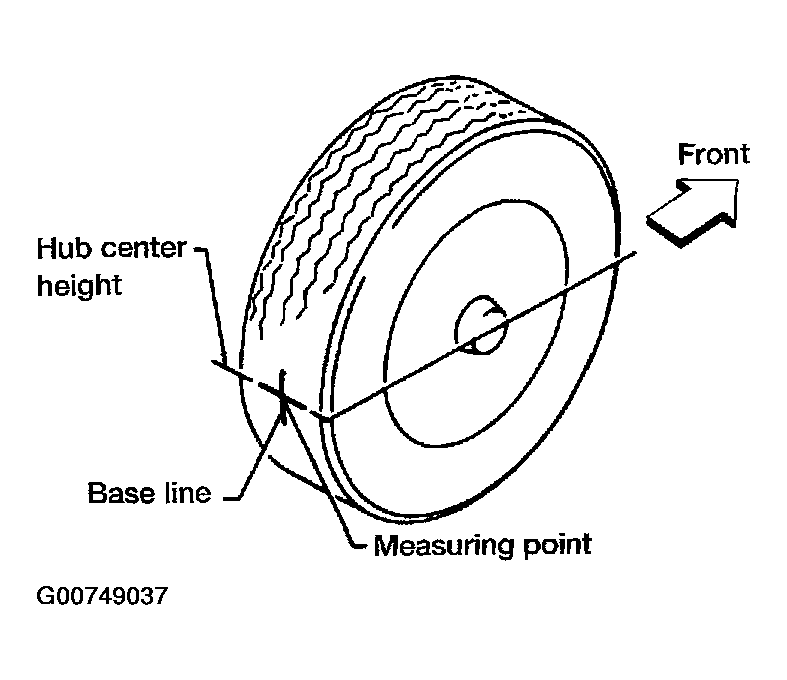

   Fig 1: Measuring Points

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Measure distance "A" (rear side).
5. Push vehicle slowly ahead to rotate wheels 180 degrees (1/2 turn).

   If wheels have rotated more than 180 degrees (1/2 turn), try the above procedure again from the beginning. Never push vehicle backward.

6. Measure distance "B" (front side).
   • Standard value
   • Total toe-in :Refer to  SPECIFICATIONS  .

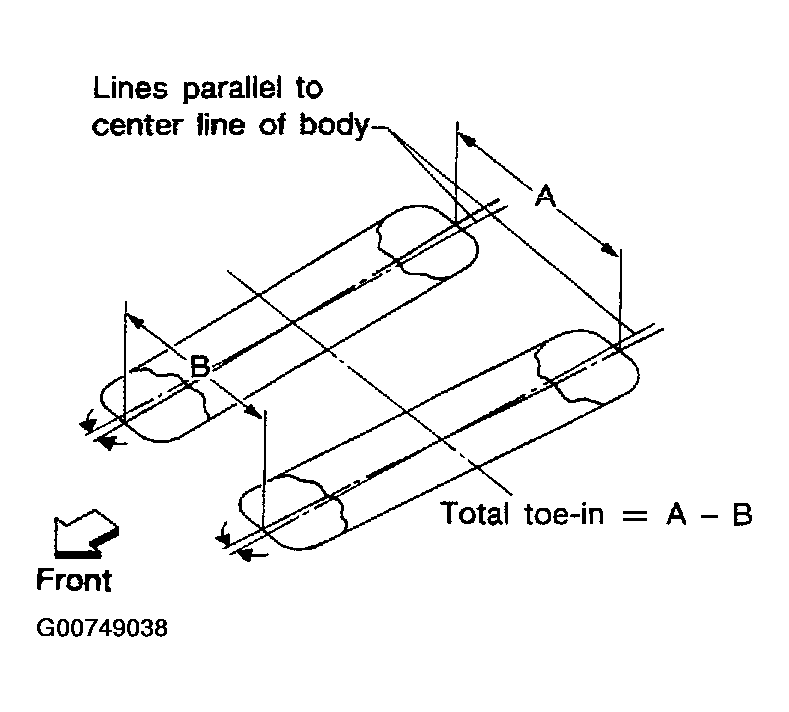

   Fig 2: Lines Parallel To Centerline Of Body

   Courtesy of NISSAN MOTOR CO., U.S.A.
