Control Valve

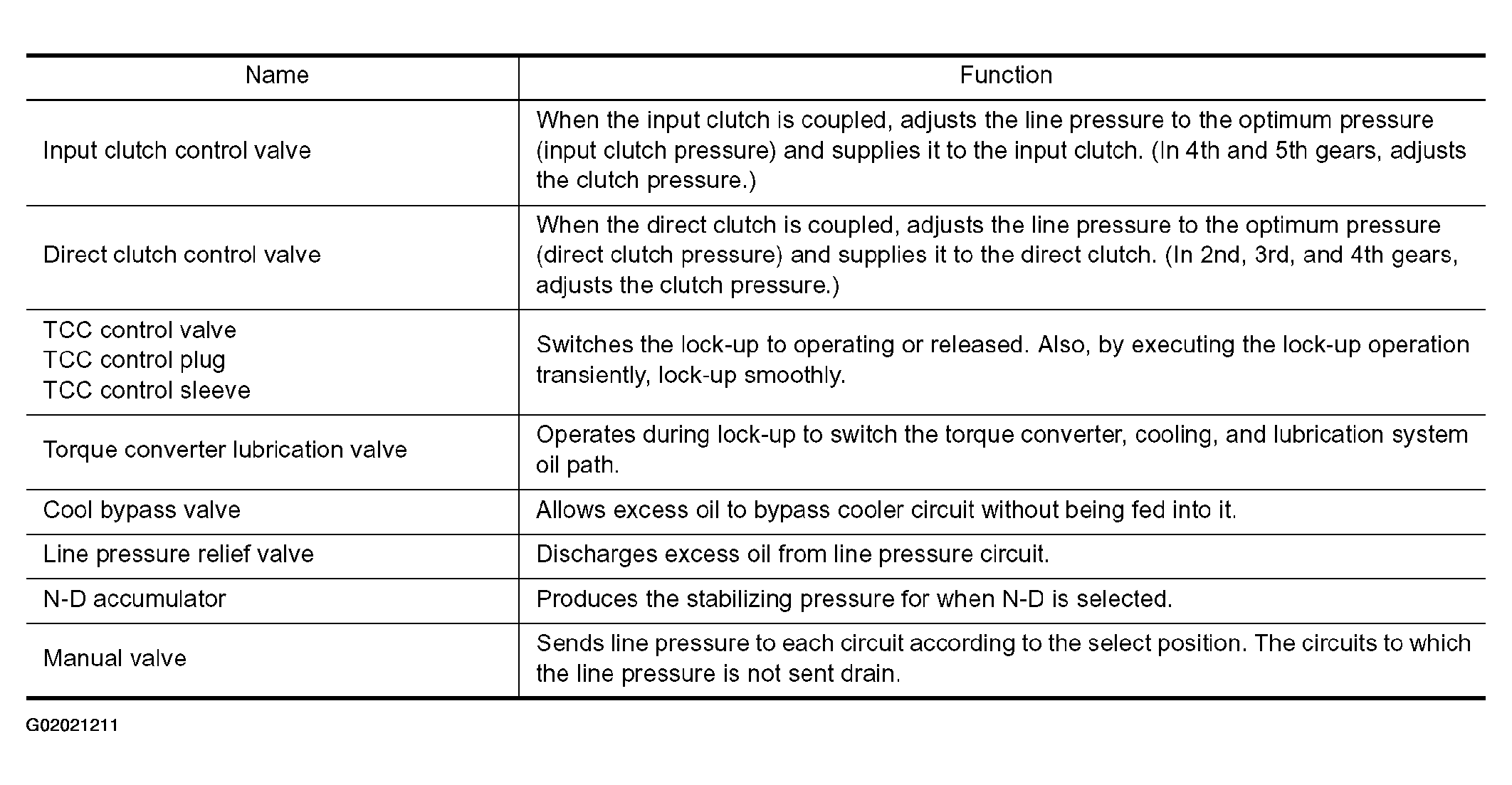

Fig 1: Control Valve Function Chart (1 of 2)
G02021211Courtesy of NISSAN MOTOR CO., U.S.A.

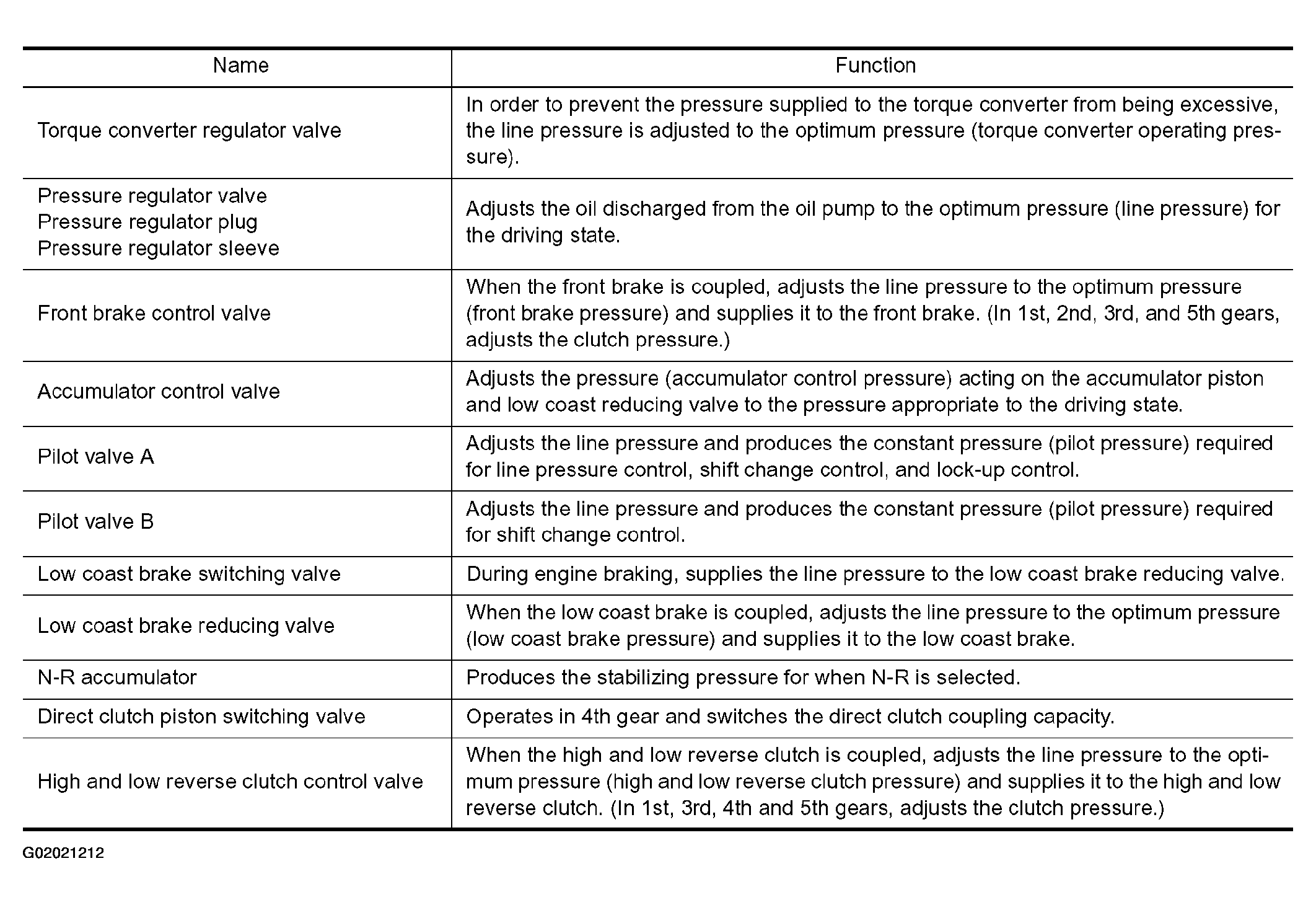

Fig 2: Control Valve Function Chart (2 of 2)
G02021212Courtesy of NISSAN MOTOR CO., U.S.A.

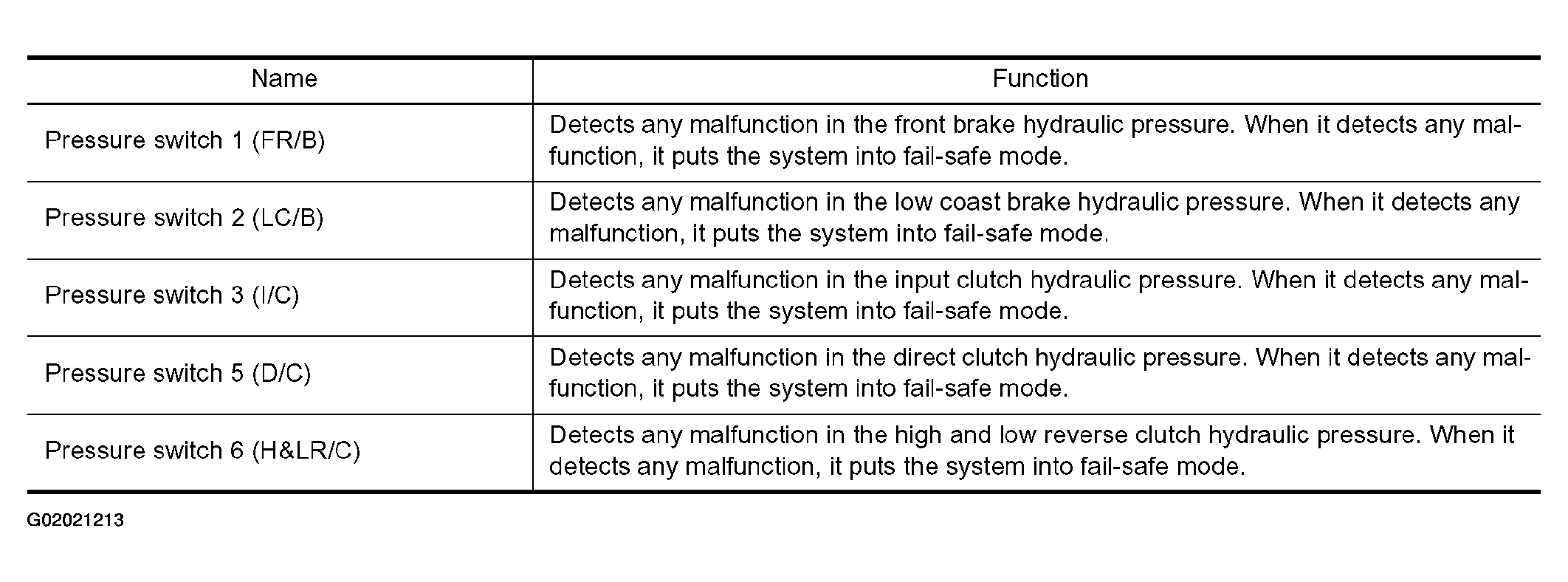

Fig 3: Pressure Switch Function Chart
G02021213Courtesy of NISSAN MOTOR CO., U.S.A.
