Cross-Sectional View

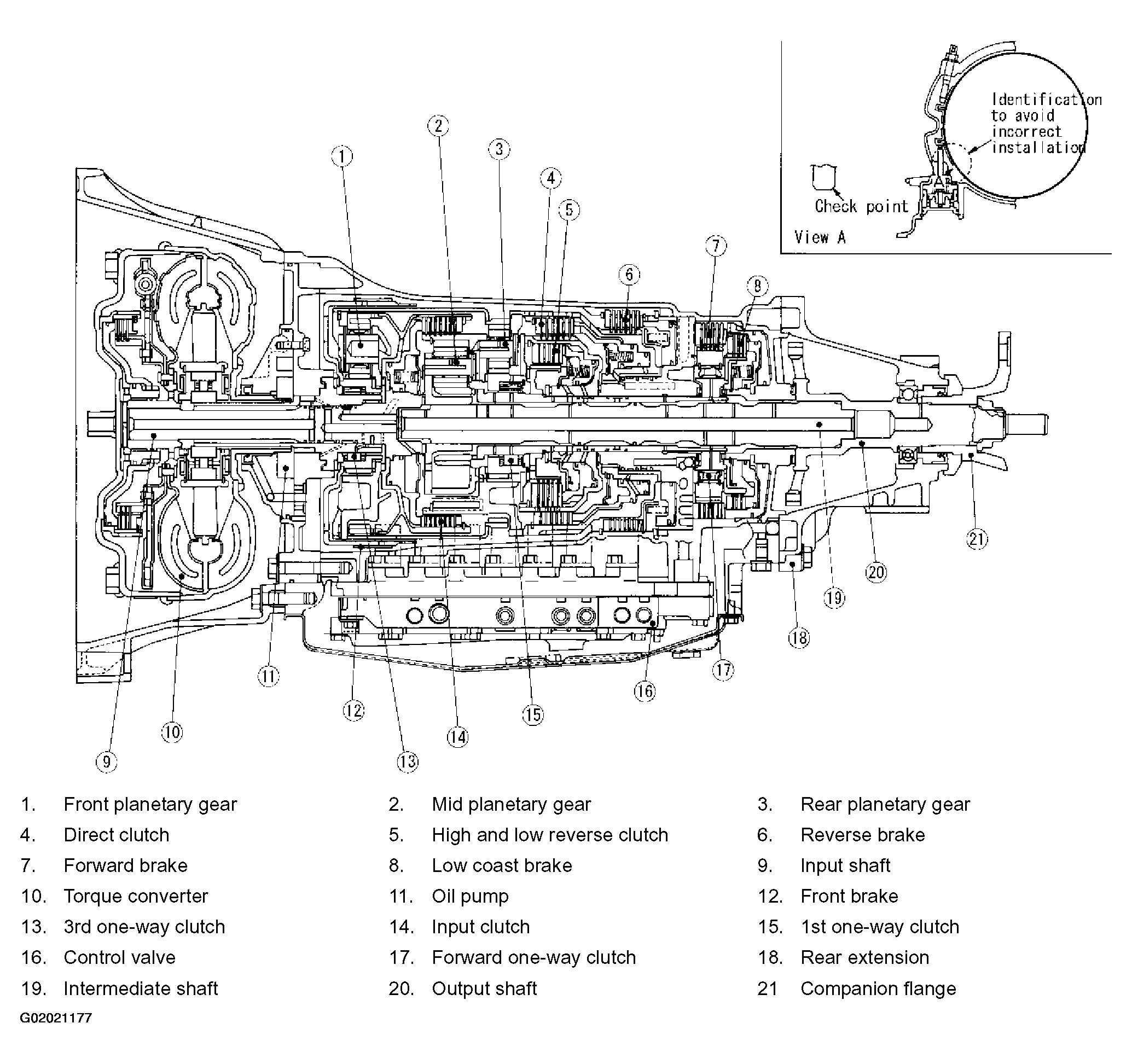

Fig 1: A/T Control System Cross-Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
