Key unlock
Check operation by applying battery voltage to key switch and key lock solenoid harness connector.
CAUTION:
Be careful not to cause burnout of the harness.

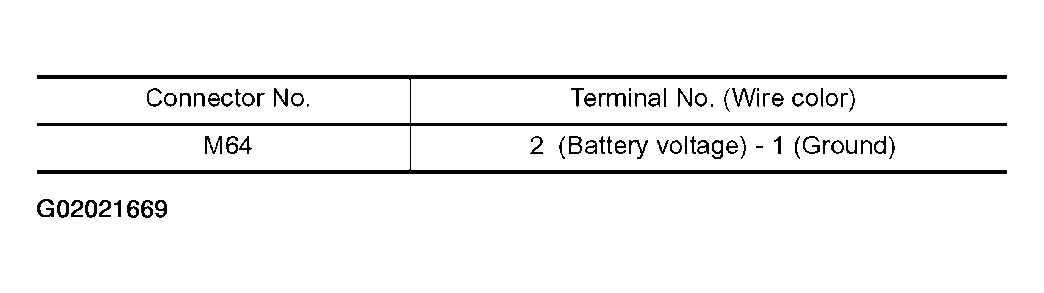

Fig 1: Key Unlock Connector Terminal Voltage Table
Courtesy of NISSAN MOTOR CO., U.S.A.

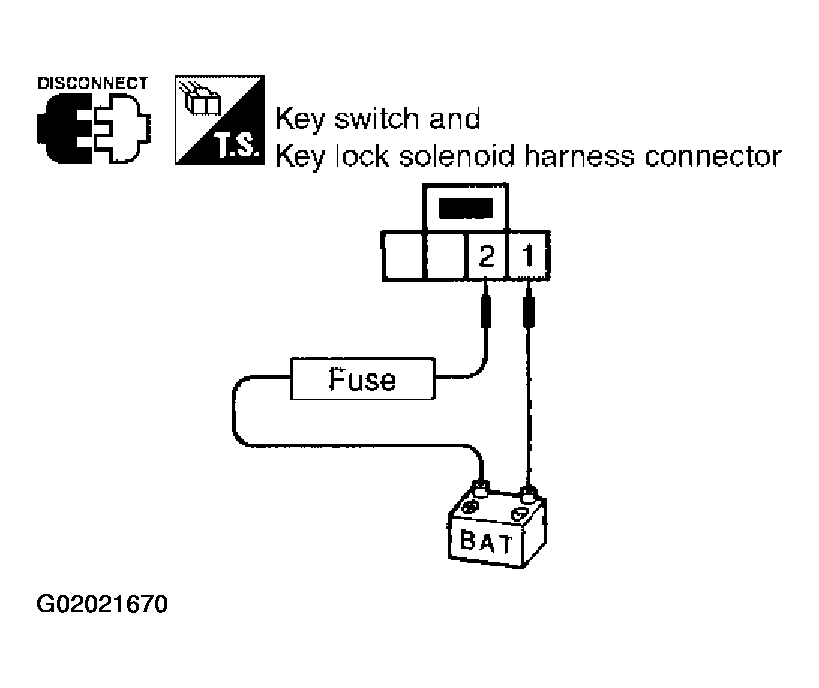

Fig 2: Inspecting Key Unlock
Courtesy of NISSAN MOTOR CO., U.S.A.
