Key Switch
Check continuity between terminals of the key switch and key lock solenoid harness connector.

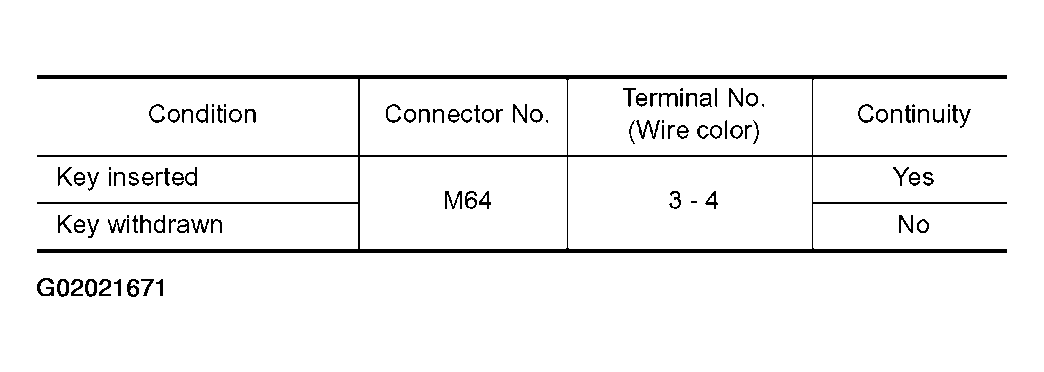

Fig 1: Key Switch Connector Terminal Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.

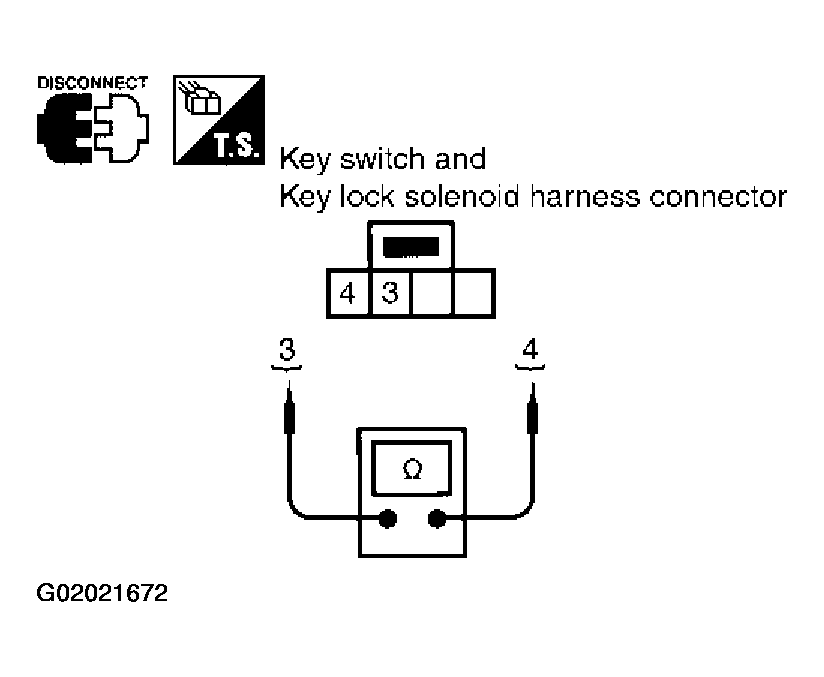

Fig 2: Inspecting Key Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
