Stop Lamp Switch
Check continuity between terminals of the stop lamp switch harness connector.

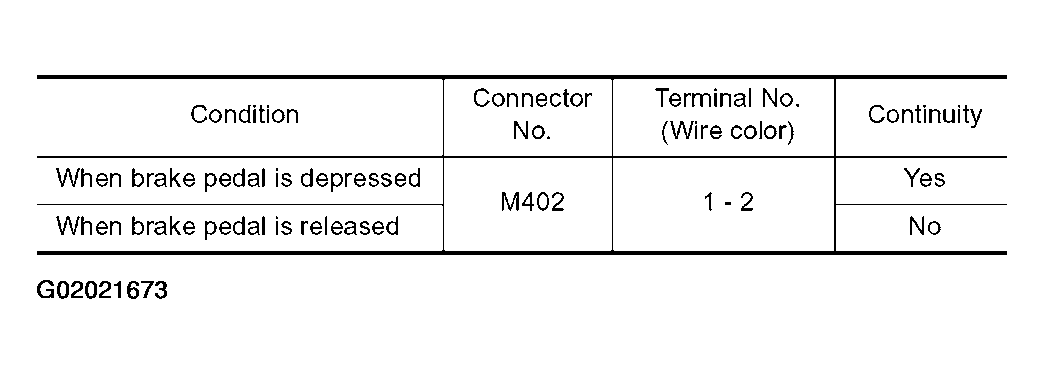

Fig 1: Stop Lamp Switch Connector Terminal Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.

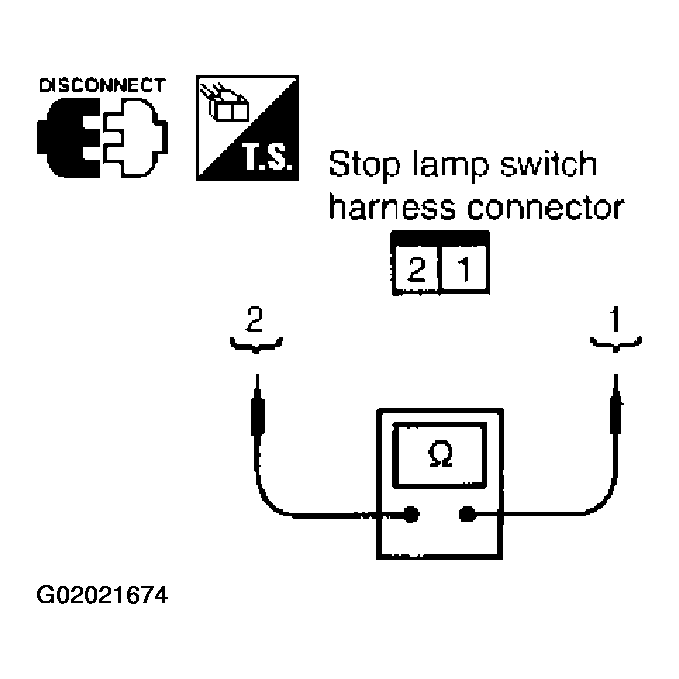

Fig 2: Inspecting Stop Lamp Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Check stop lamp switch after adjusting brake pedal. Refer to "BRAKE PEDAL ".
