Control Valve Assembly: Installation

  1. Install fluid temperature sensor 2 in bracket.

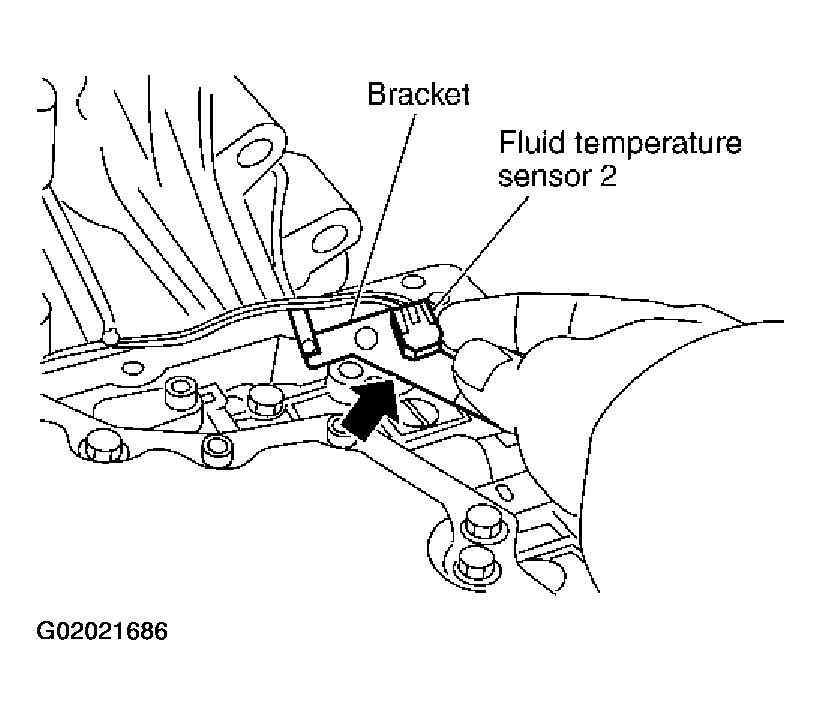

    Fig 1: Control Valve Assembly Installation Procedure (1 Of 13)
    G02021686Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install fluid temperature sensor 2 in control valve assembly. (With bracket.)
    1. 7.9 N.m (0.81 kg-m, 70 in-lb)

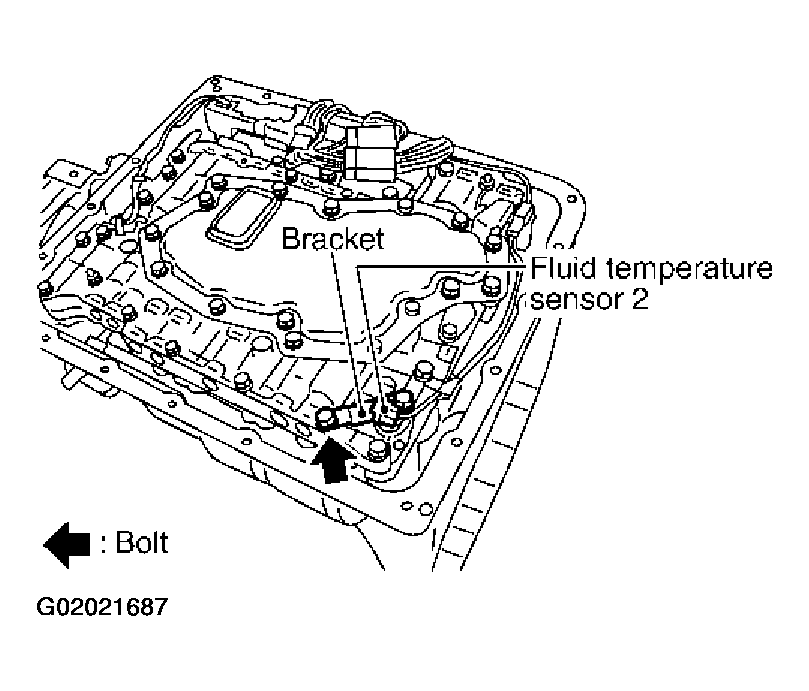

    Fig 2: Control Valve Assembly Installation Procedure (2 Of 13)
    G02021687Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install control valve assembly.
      CAUTION:
      • Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve assembly.
      • Make sure that turbine sensor securely installs turbine sensor hole.
      • Assemble it so that manual valve cutout is engaged with manual plate projection.

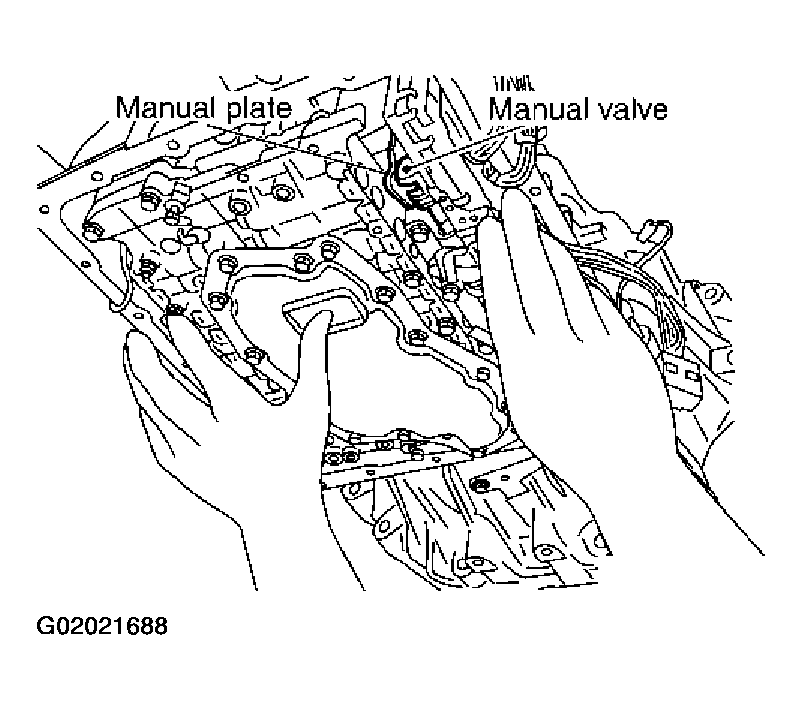

      Fig 3: Control Valve Assembly Installation Procedure (3 Of 13)
      G02021688Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Install control valve assembly in transmission case.
    2. Install bolts A, B and C in control valve assembly.

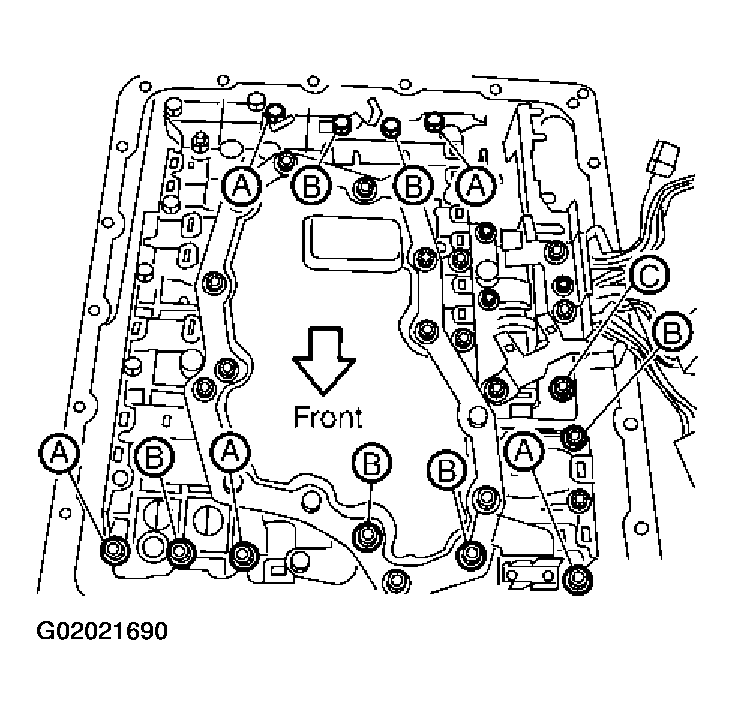

      Fig 4: Control Valve Assembly Installation Procedure (5 Of 13)
      G02021690Courtesy of NISSAN MOTOR CO., U.S.A.

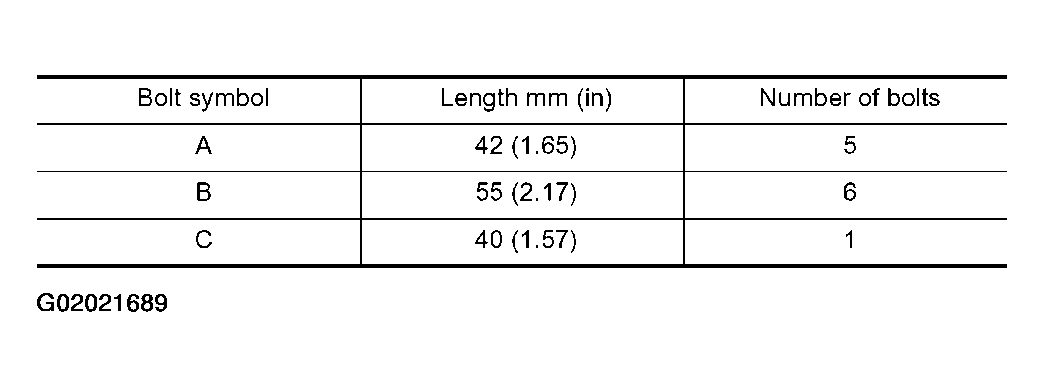

      Fig 5: Control Valve Assembly Installation Procedure (4 Of 13)
      G02021689Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
      1. 7.9 N.m (0.81 kg-m, 70 in-lb)

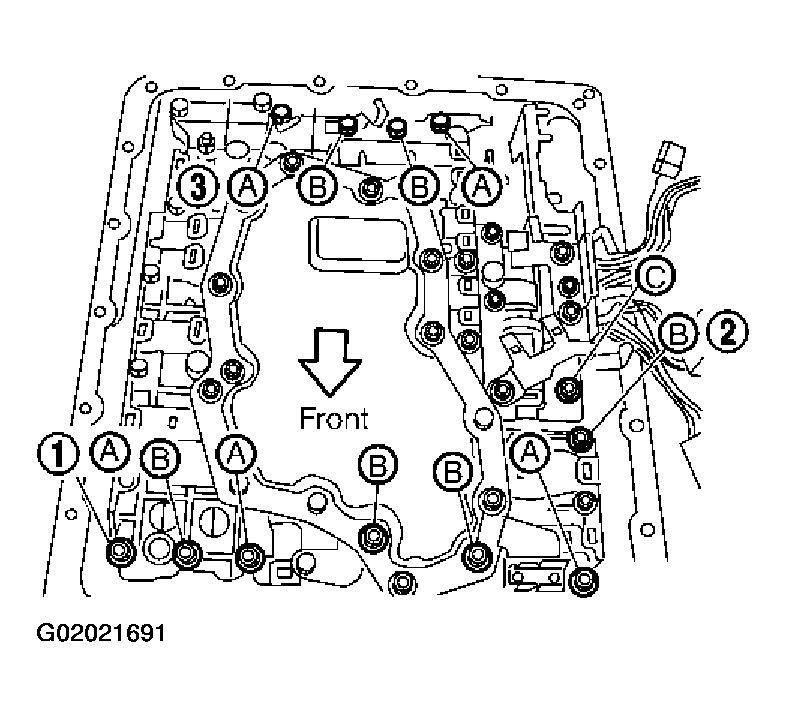

      Fig 6: Control Valve Assembly Installation Procedure (6 Of 13)
      G02021691Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install terminal cord assembly connectors in bracket.

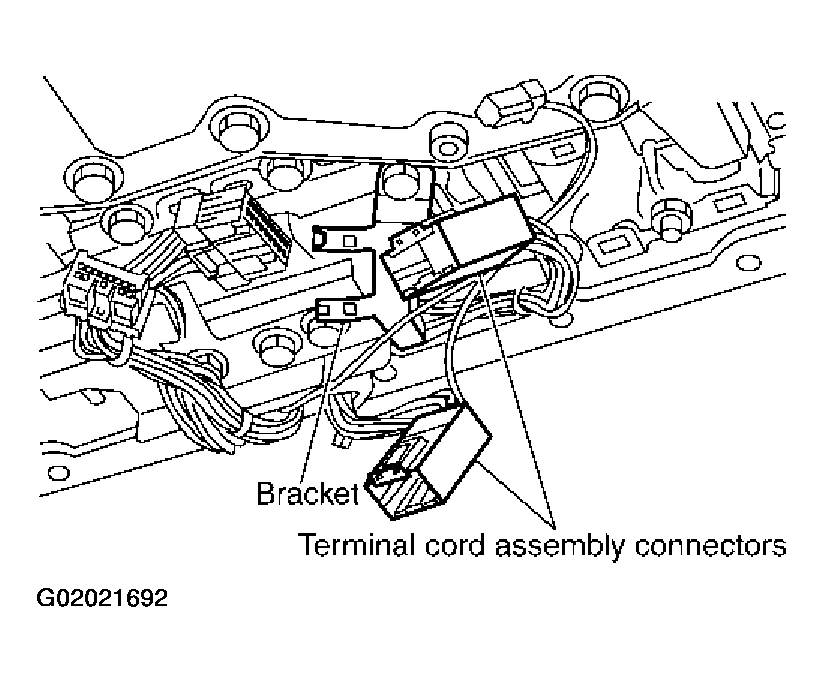

    Fig 7: Control Valve Assembly Installation Procedure (7 Of 13)
    G02021692Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Connect terminal cord assembly connectors.

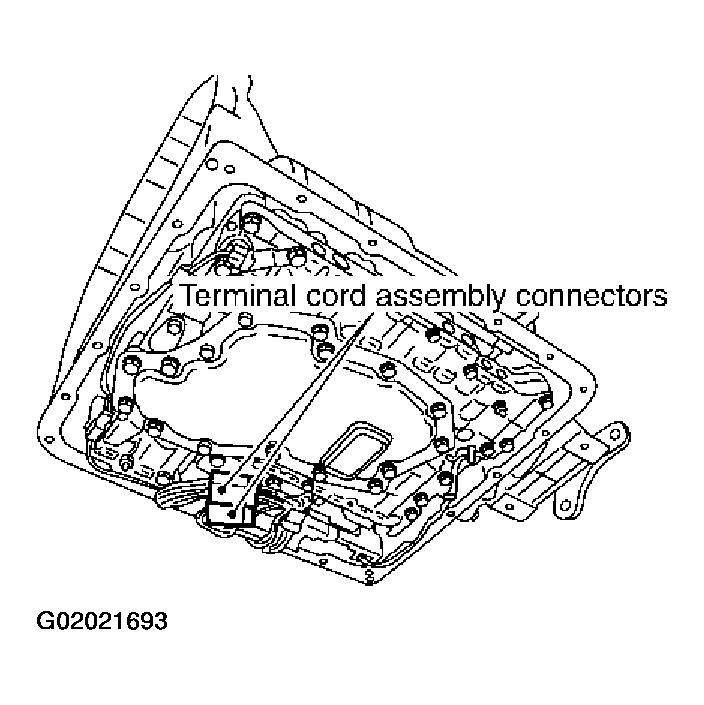

    Fig 8: Control Valve Assembly Installation Procedure (8 Of 13)
    G02021693Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Connect fluid temperature sensor 2 connector.

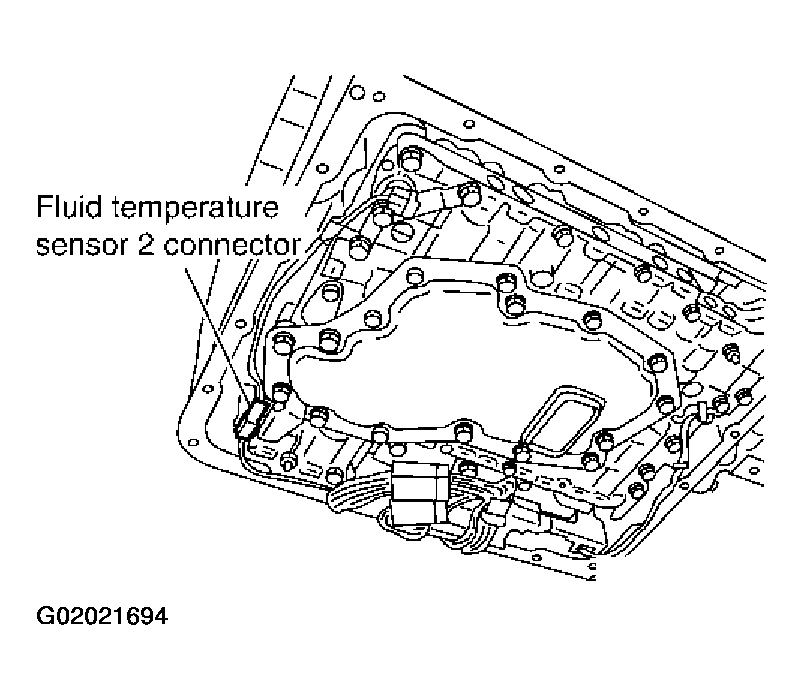

    Fig 9: Control Valve Assembly Installation Procedure (9 Of 13)
    G02021694Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Connect revolution sensor connector.

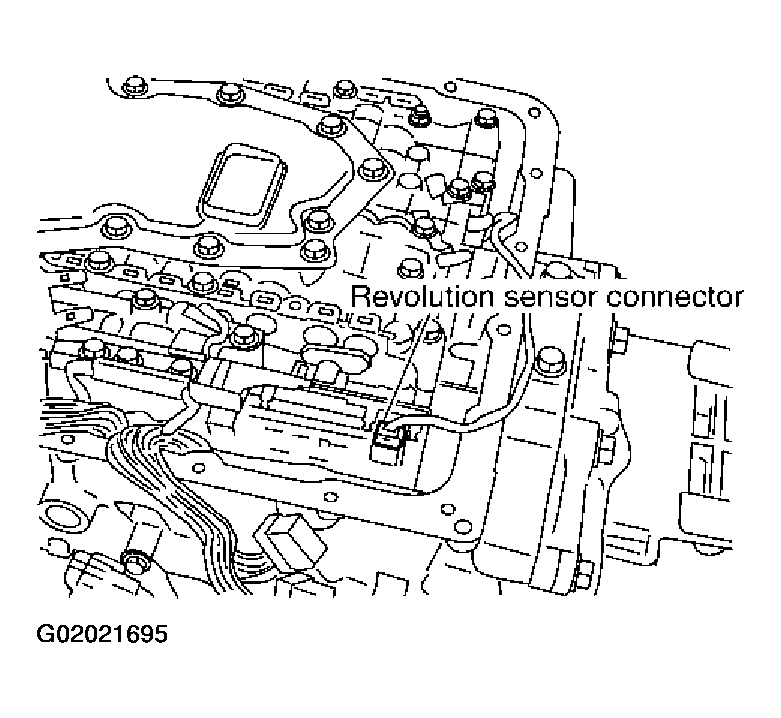

    Fig 10: Control Valve Assembly Installation Procedure (10 Of 13)
    G02021695Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Securely fasten terminal harness with clip.

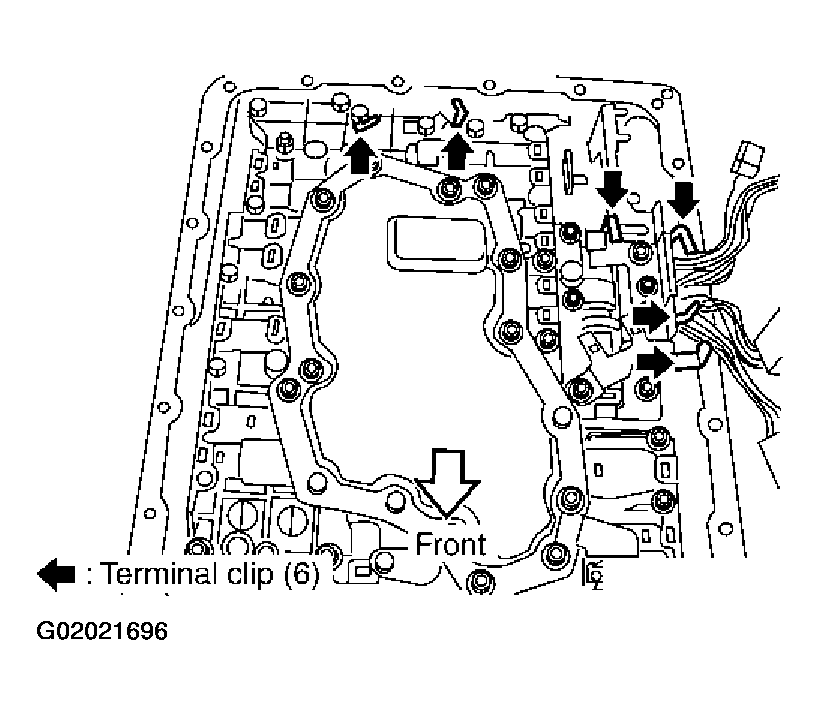

    Fig 11: Control Valve Assembly Installation Procedure (11 Of 13)
    G02021696Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install oil pan on transmission case.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
    1. Install oil pan gasket on oil pan.
      2. CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.

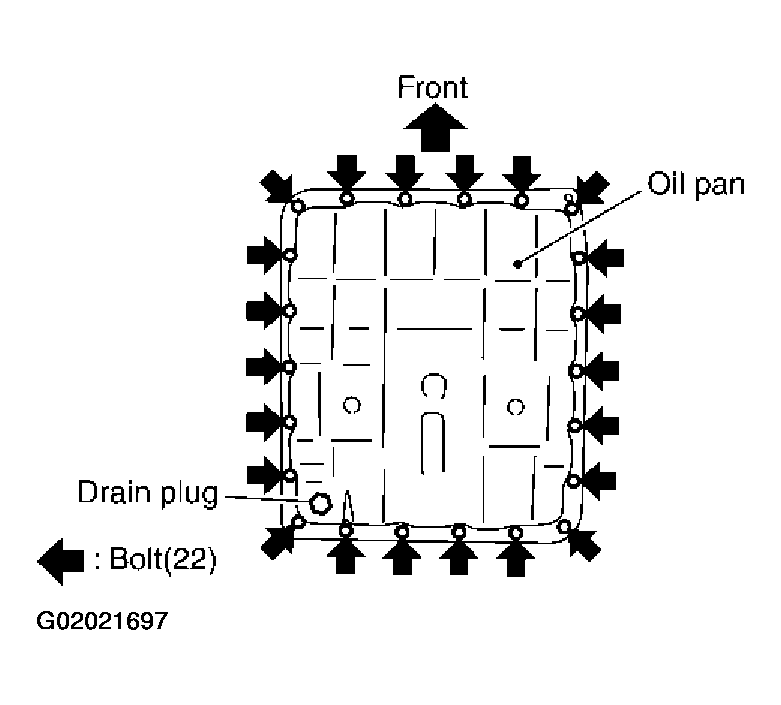

      Fig 12: Control Valve Assembly Installation Procedure (12 Of 13)
      G02021697Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install oil pan on transmission case. (With oil pan gasket)
      3. CAUTION: Do not reuse oil pan mounting bolts.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
    1. 7.9 N.m (0.81 kg-m, 70 in-lb)

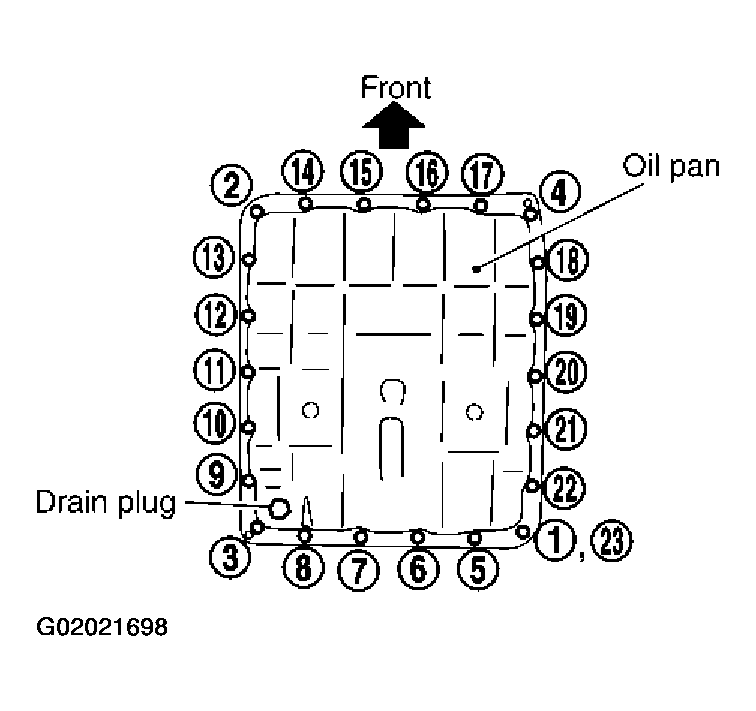

    Fig 13: Control Valve Assembly Installation Procedure (13 Of 13)
    G02021698Courtesy of NISSAN MOTOR CO., U.S.A.
    10. CAUTION: Do not reuse drain plug gasket.
  10. Install drain plug on oil pan.
    1. 34 N.m (3.5 kg-m, 25 ft-lb)
  11. Pour ATF into transmission assembly.
  12. Connect heated oxygen sensor 2 harness connector.
  13. Connect the negative battery terminal
    • After completing installation, check fluid leakage and fluid level of transmission assembly. Refer to "CHECKING A/T FLUID ".
