EEPROM Erasing Patterns

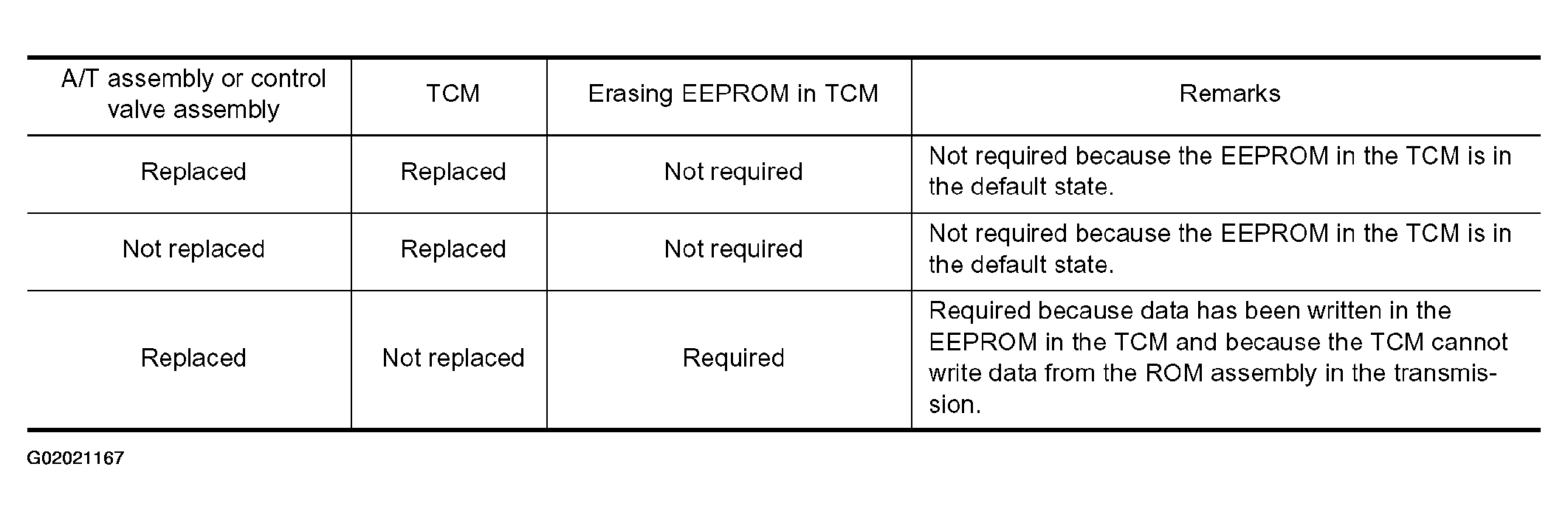

Fig 1: EEPROM Erasing Pattern Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
