Control Device Removal and Installation: Notes

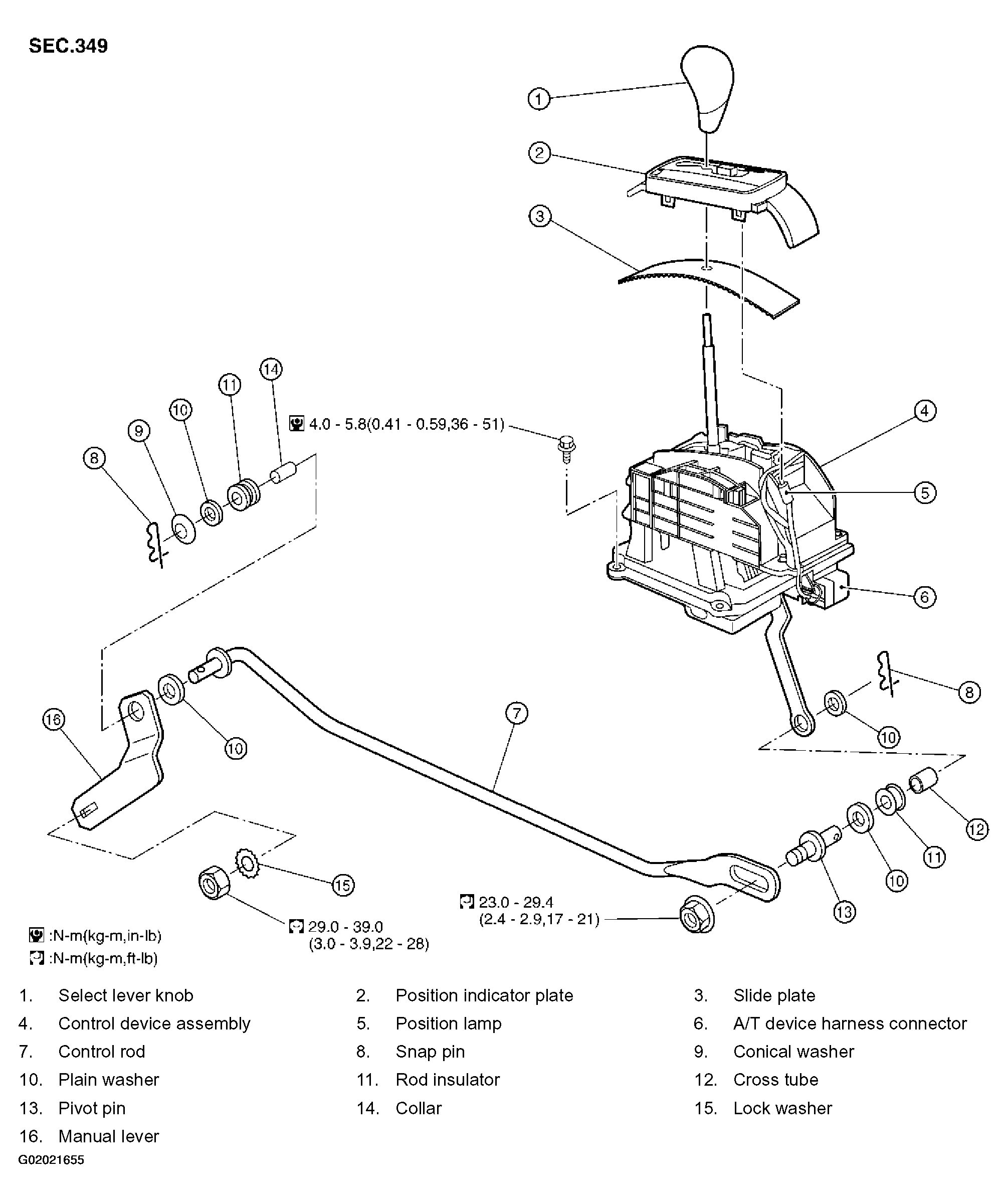

Fig 1: Exploded View Of Shift Control System Components
G02021655Courtesy of NISSAN MOTOR CO., U.S.A.
