Door Switch Check

With CONSULT-II

• Check door switch in "DATE MONITOR" mode with CONSULT-II.
  1. When door is opened : DOOR SW ON
  2. When door is closed : DOOR SW OFF

Without CONSULT-II

• Check all door switches in switch monitor mode.

  Refer to Remote keyless entry system "SWITCH MONITOR ".

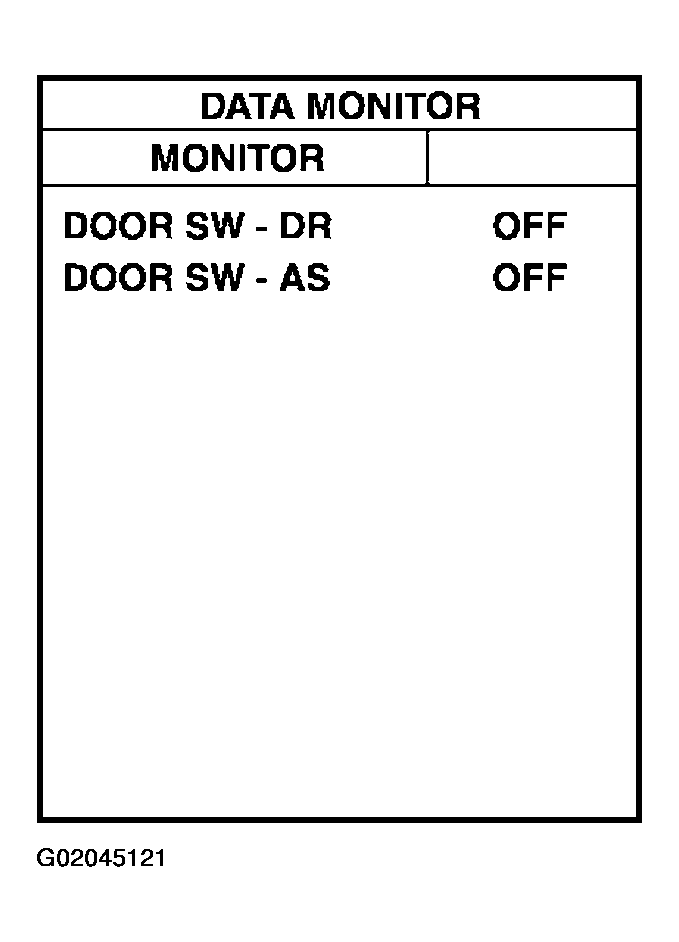

  Fig 1: Checking Door Switch Input Signal With CONSULT-II

  Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK >> Door switch is OK.
2. NG >> GO TO 2

1. Turn ignition switch OFF.
2. Disconnect door switch connector.
3. Check continuity between following terminals and ground.

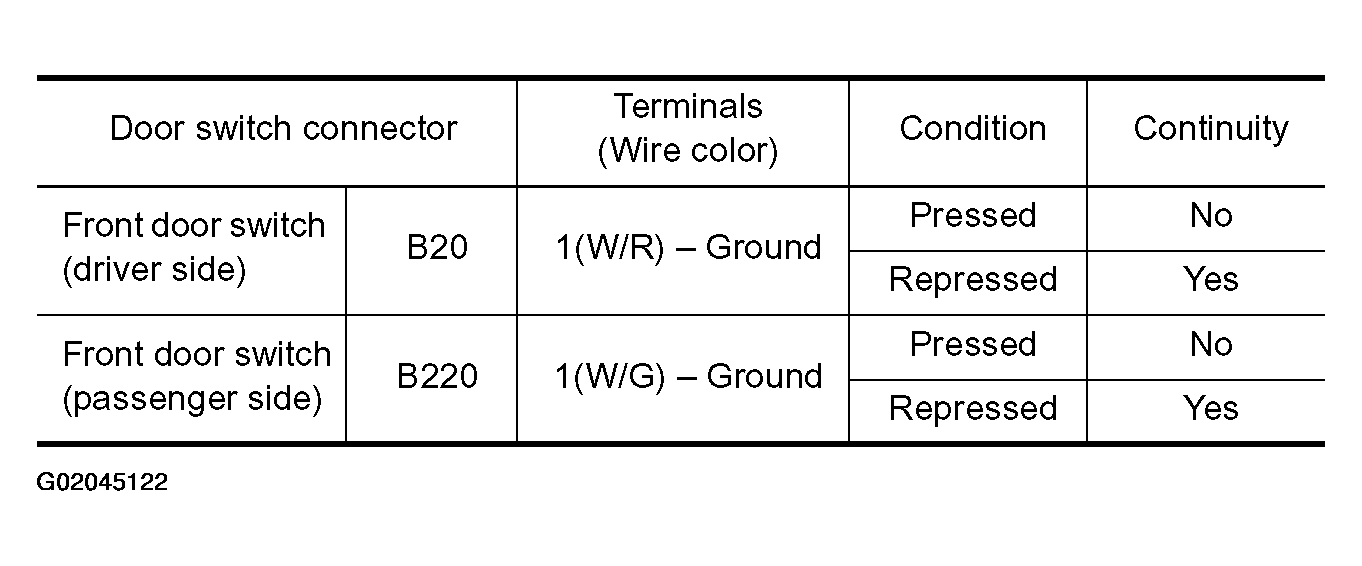

   Fig 2: Door Switch Connector Terminal Continuity Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK >> Repair or replace following item, when there is a malfunction.
   • Door switch ground condition
   • Harness for open or short between door switch and BCM
2. NG >> Replace door switch.

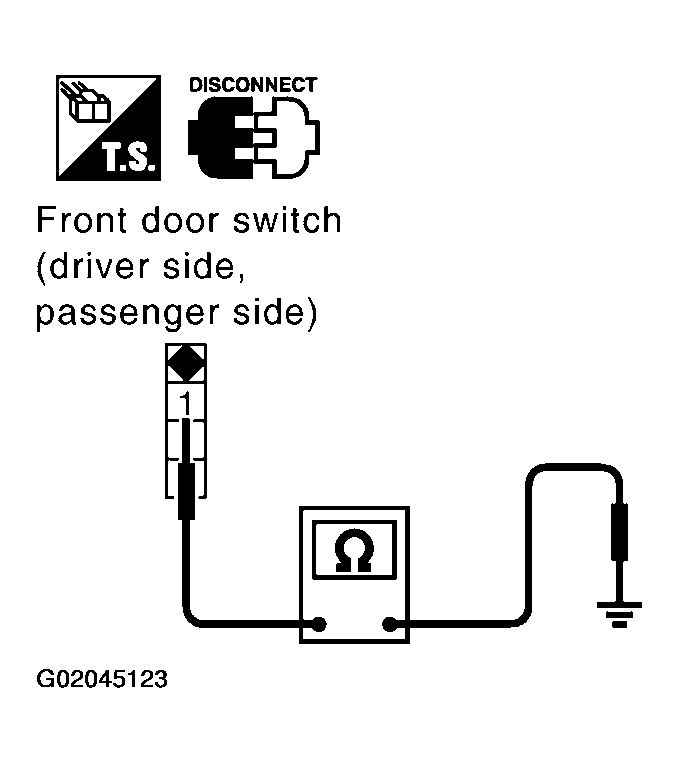

Fig 3: Checking Door Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
