Power Window System: Schematic

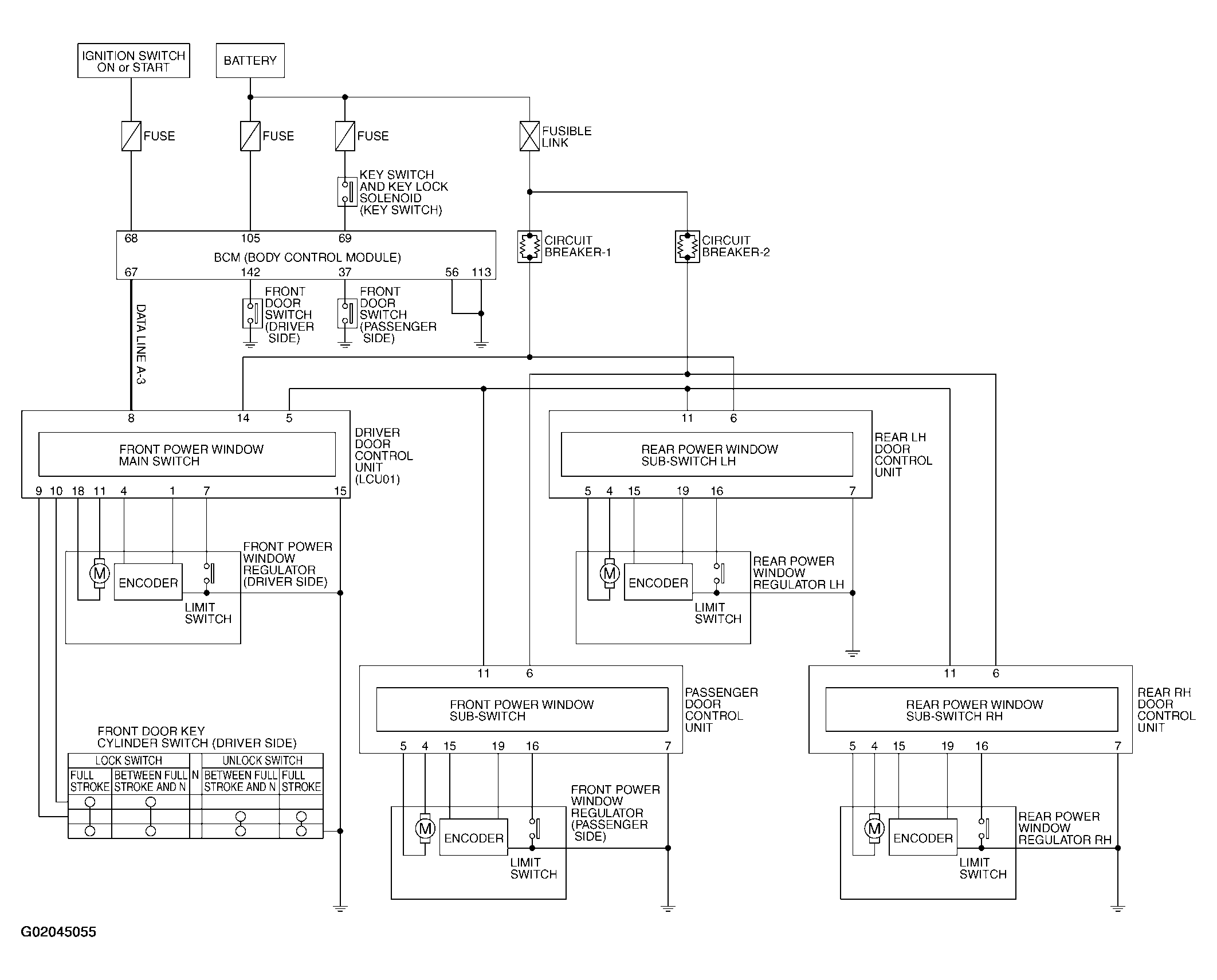

Fig 1: Power Window System Schematic Diagram

G02045055

Courtesy of NISSAN MOTOR CO., U.S.A.
