Terminals and Reference Value for Passenger, Rear LH, RH Door Control Unit

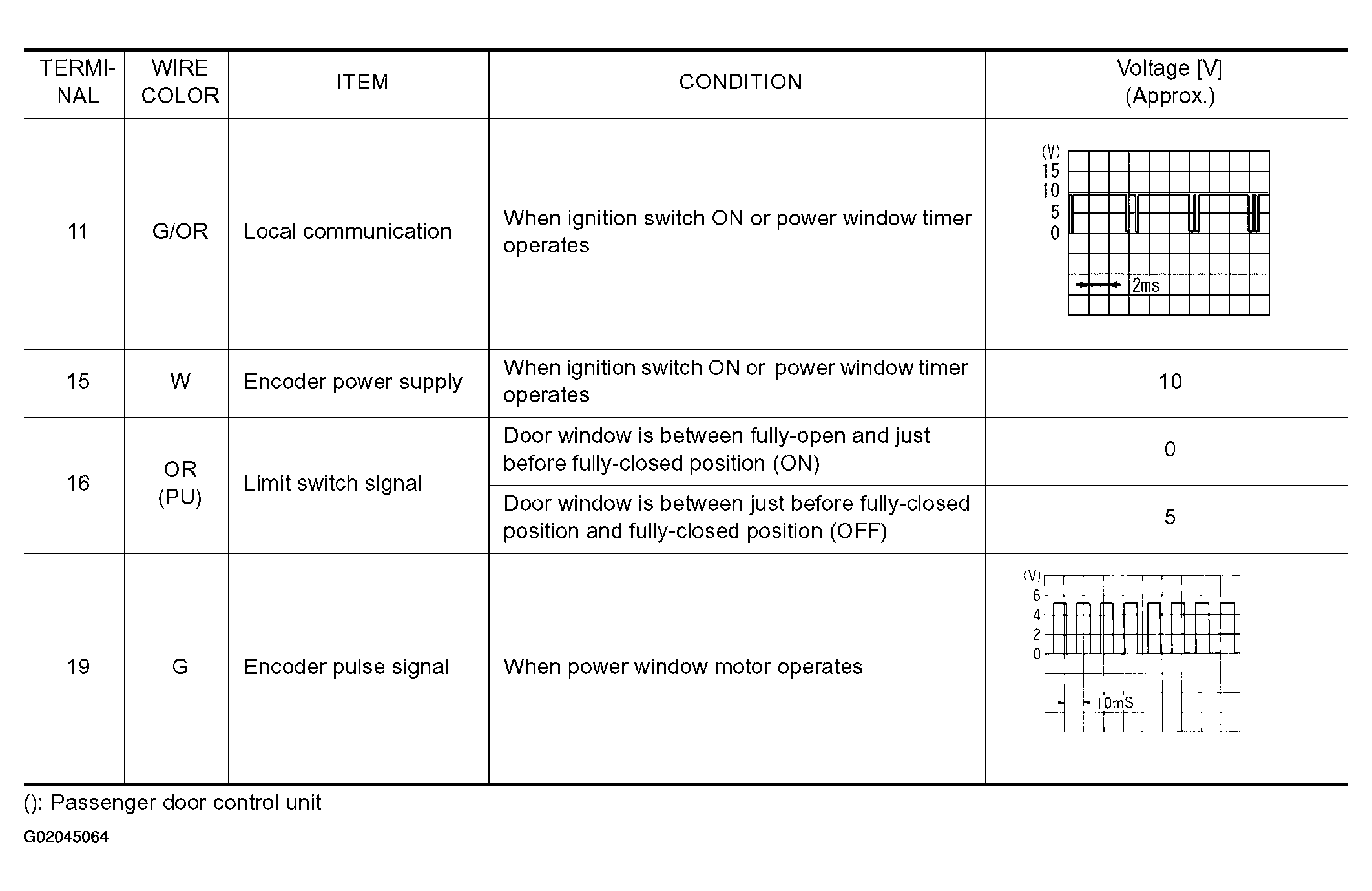

Fig 1: Terminals And Reference Value Chart (Passenger, Rear LH, RH Door Control Unit) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

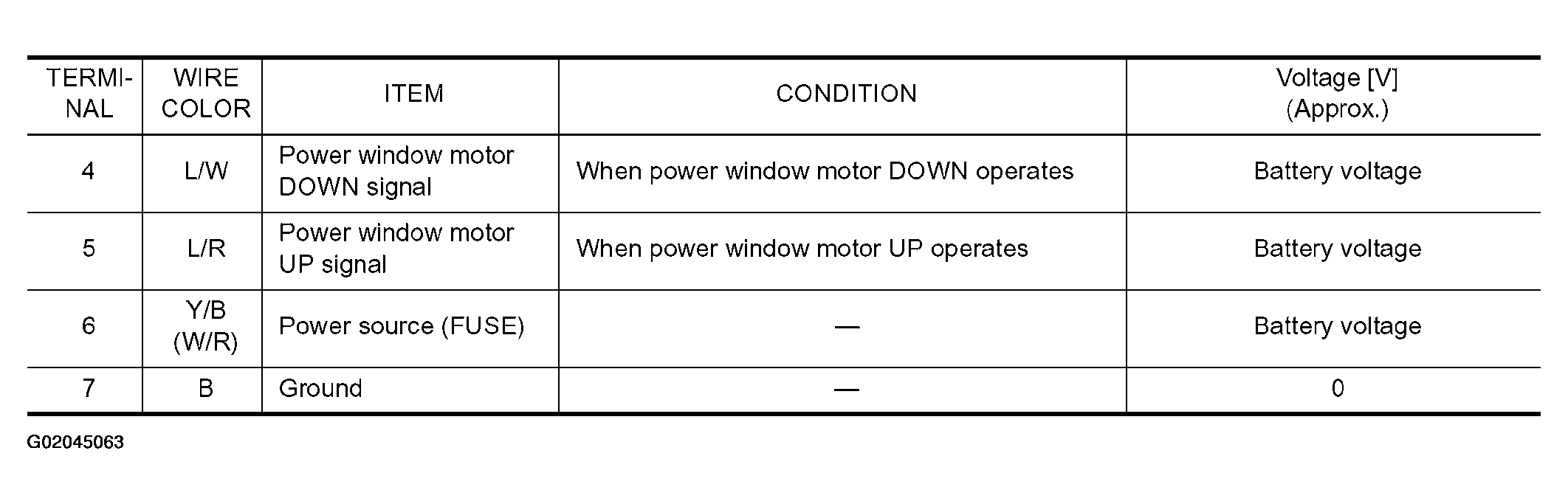

Fig 2: Terminals And Reference Value Chart (Passenger, Rear LH, RH Door Control Unit) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
