Wiring Diagram-DEF-

NOTE: For wiring diagram references to PG-POWER , see POWER DISTRIBUTION and GROUND DISTRIBUTION .

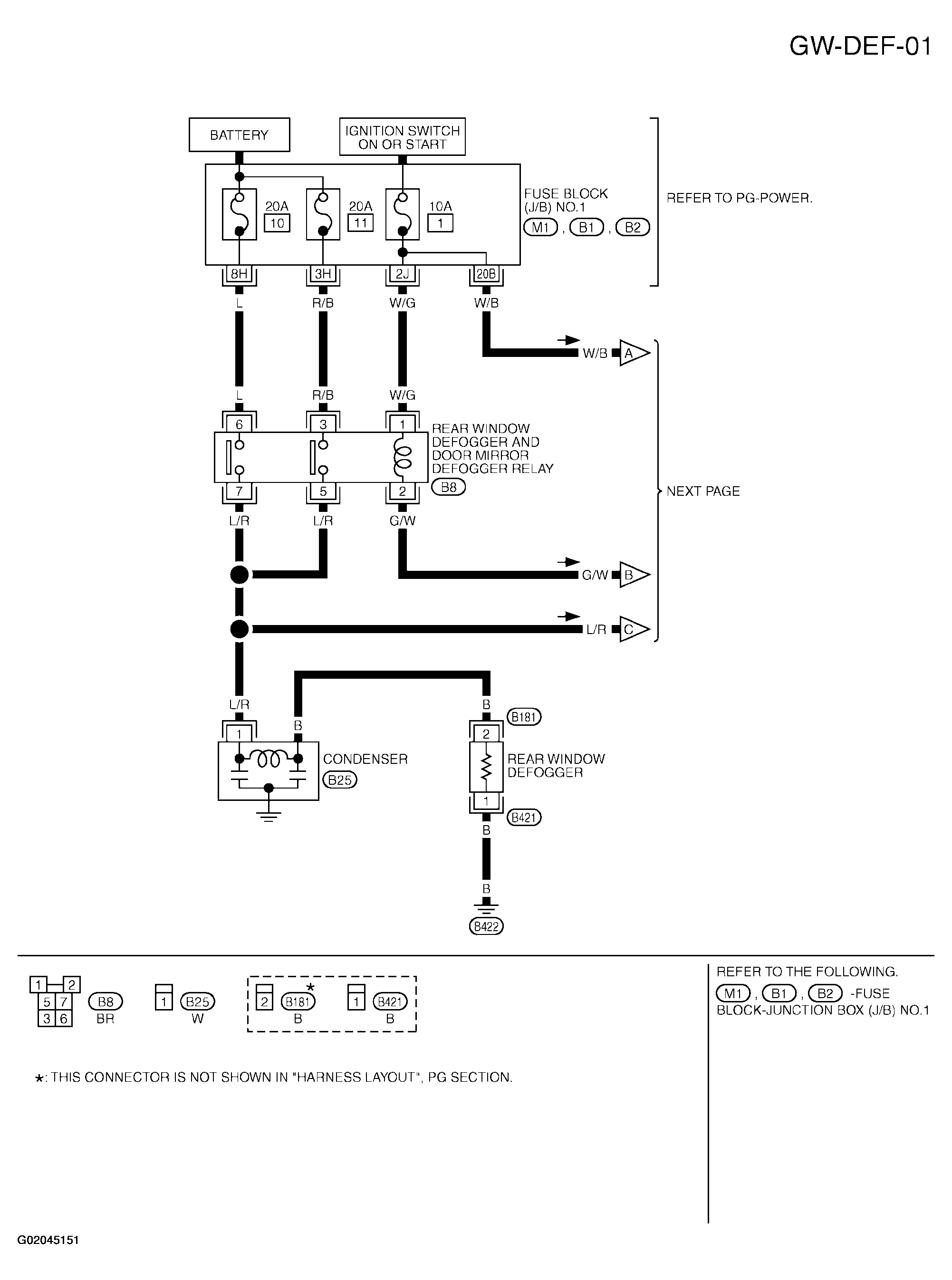

Fig 1: Rear Window Defogger Wiring Diagram And Identifying Connectors (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

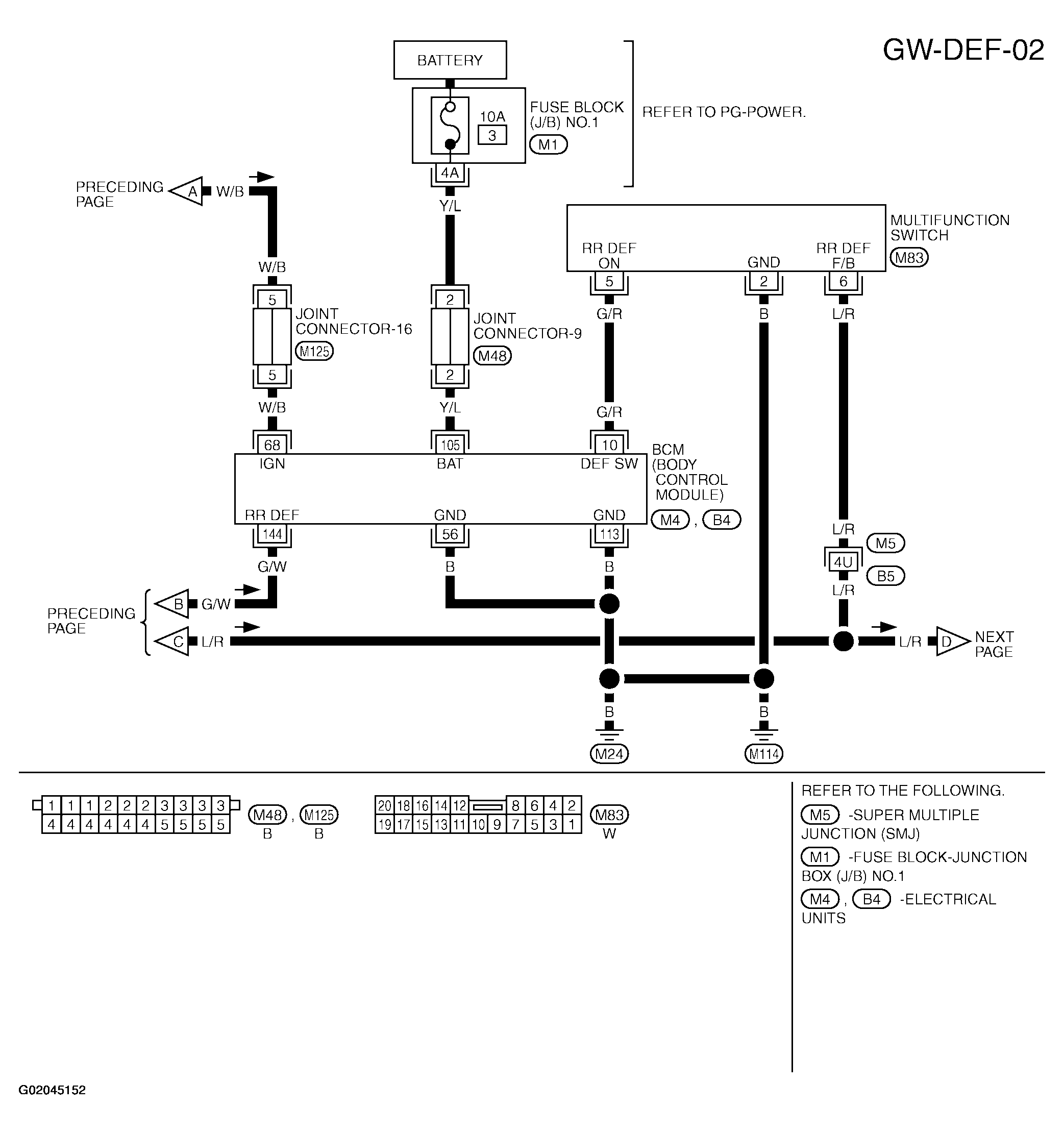

Fig 2: Rear Window Defogger Wiring Diagram And Identifying Connectors (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

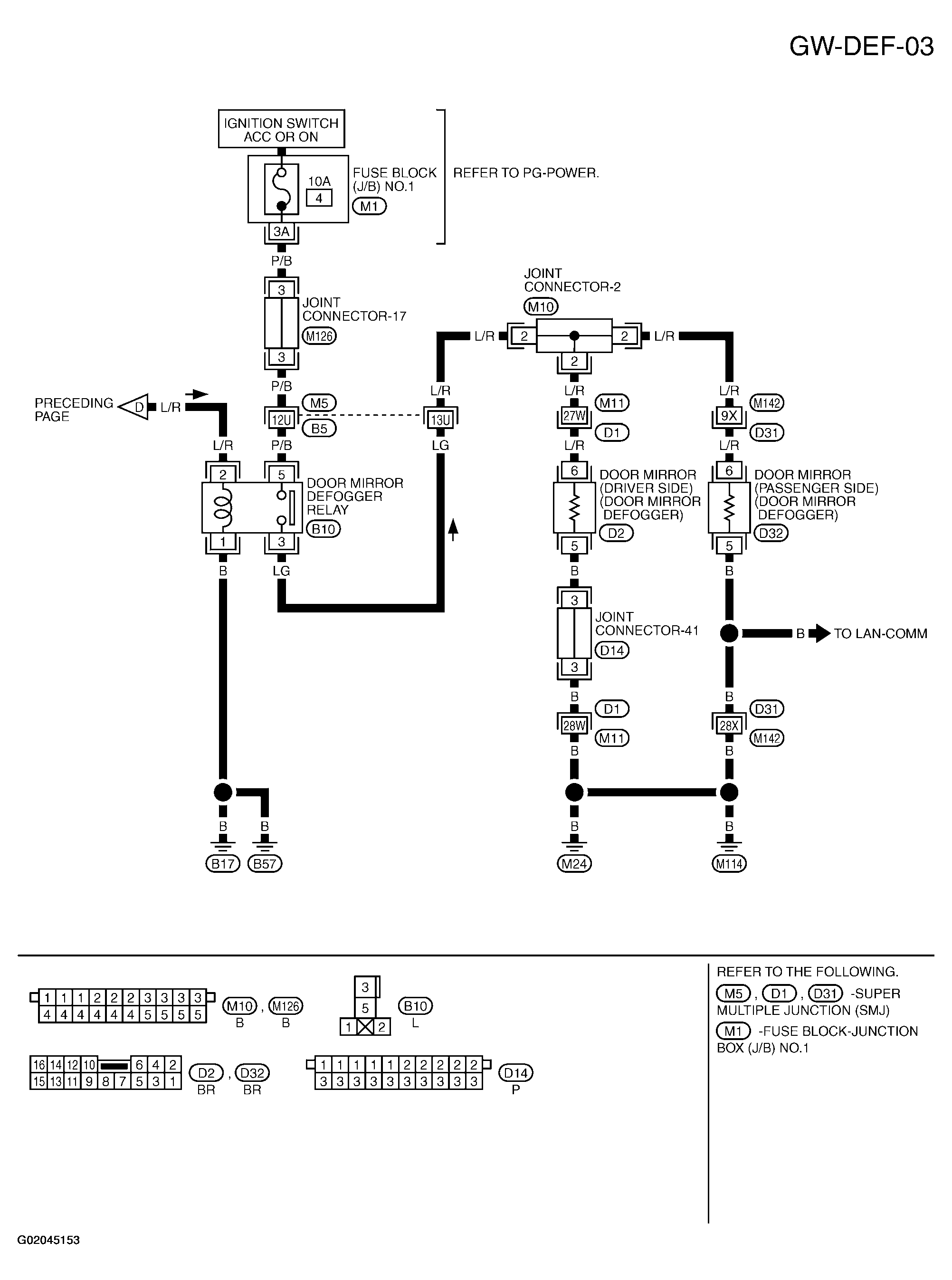

Fig 3: Rear Window Defogger Wiring Diagram And Identifying Connectors (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
