Repair and Diagnosis
>>
Brakes
>>
Brakes Control Systems
>>
Brake Control System
>>
Can Communication
>>
System Description
>>
For ICC Models
>>
Input/Output Signal Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Input/Output Signal Chart

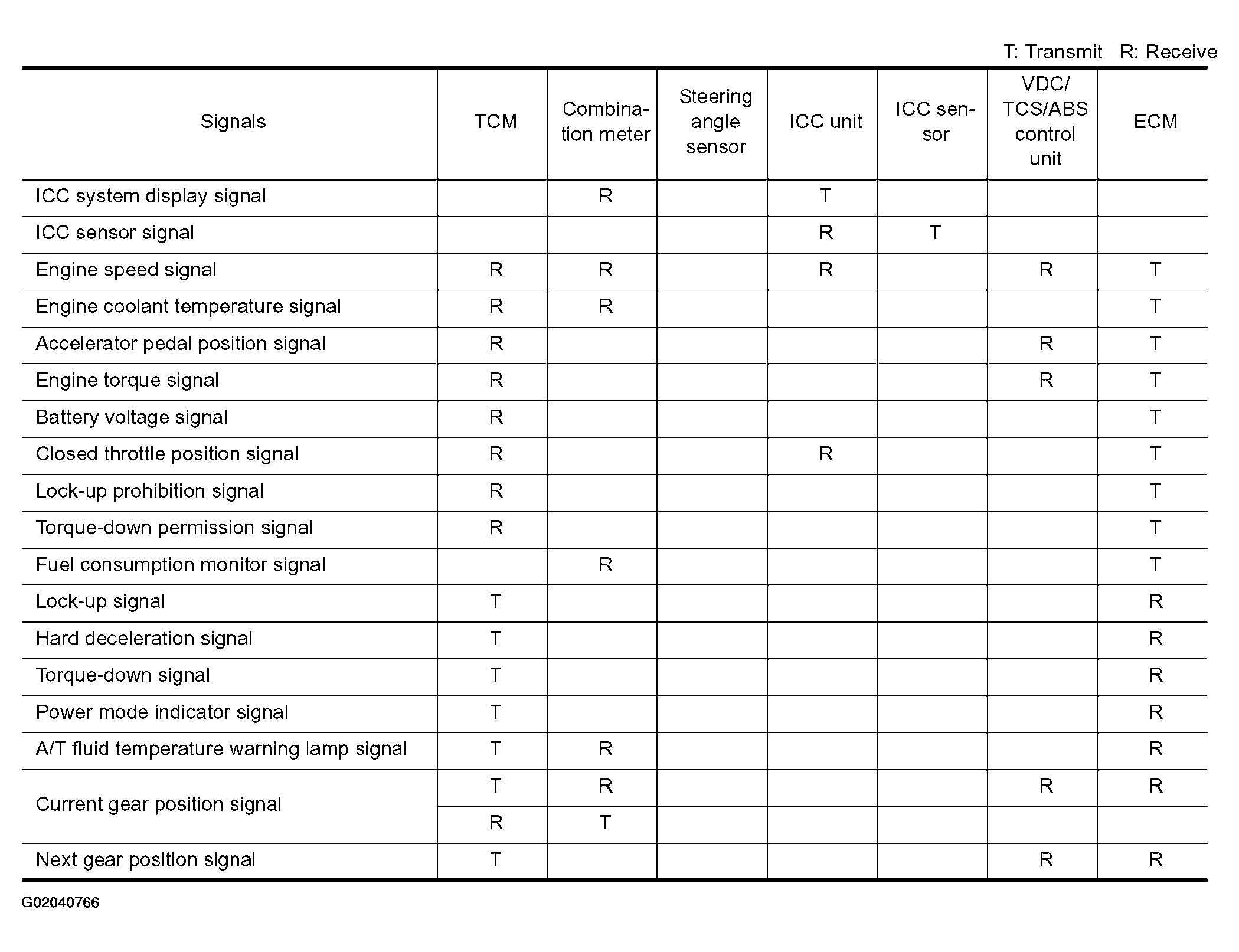

Fig 1: Input/Output Signal Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

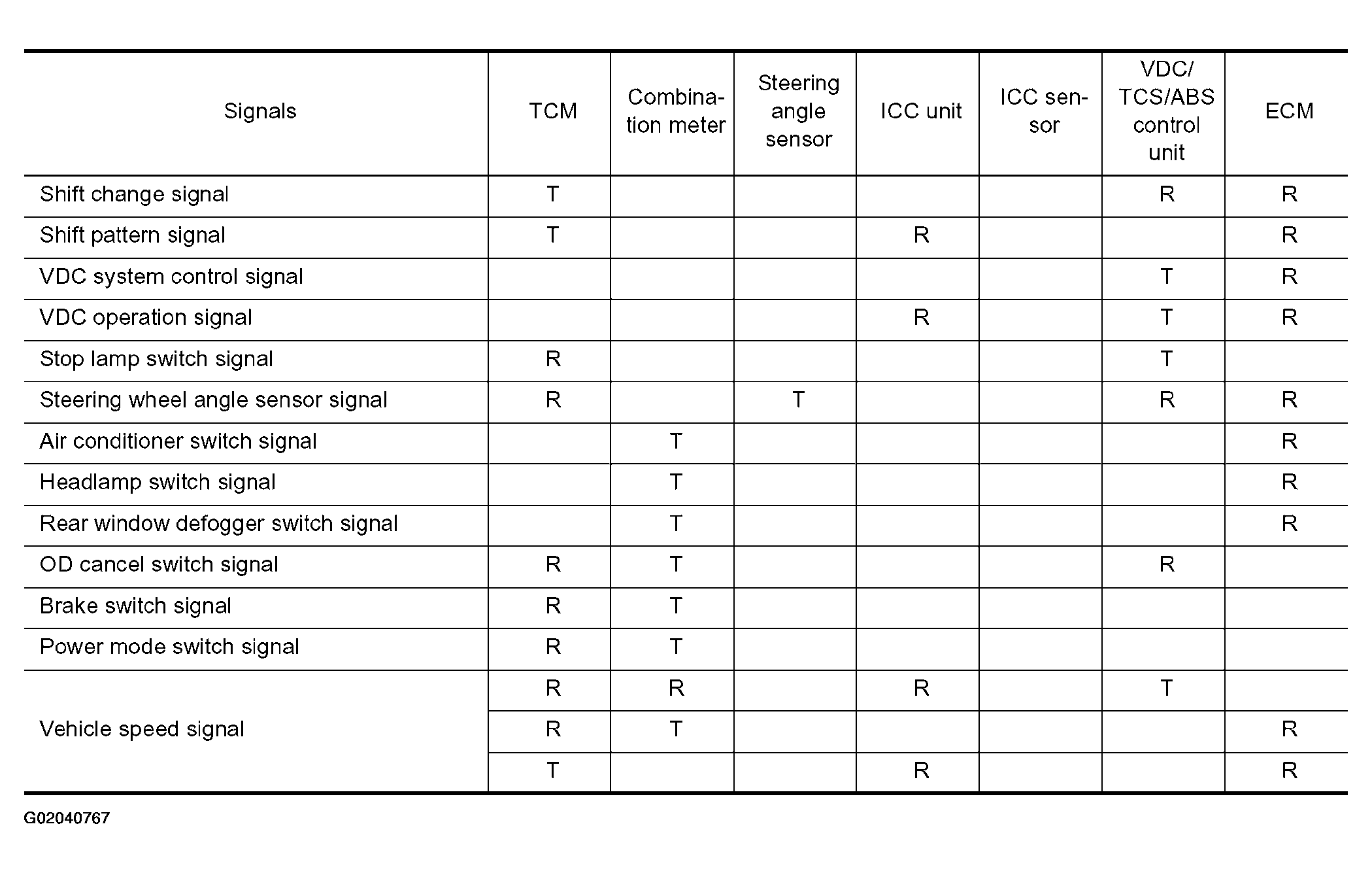

Fig 2: Input/Output Signal Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
