Can System

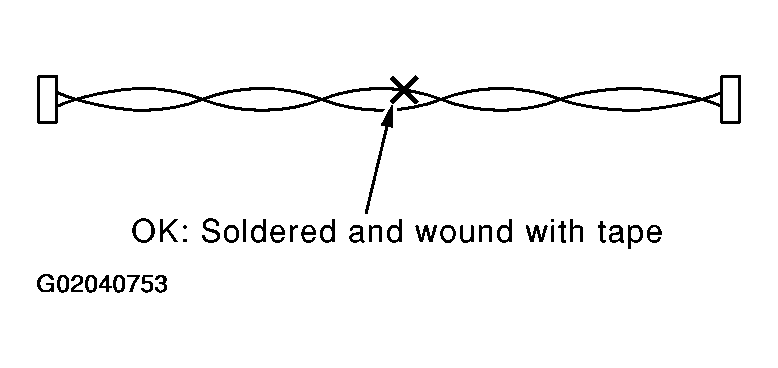

Area to be repaired shall be soldered, and wrapped with a tape (be sure that fraying of twisted wire shall be within 110 mm 4.33 in).

Fig 1: Precaution For Harness Repair (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

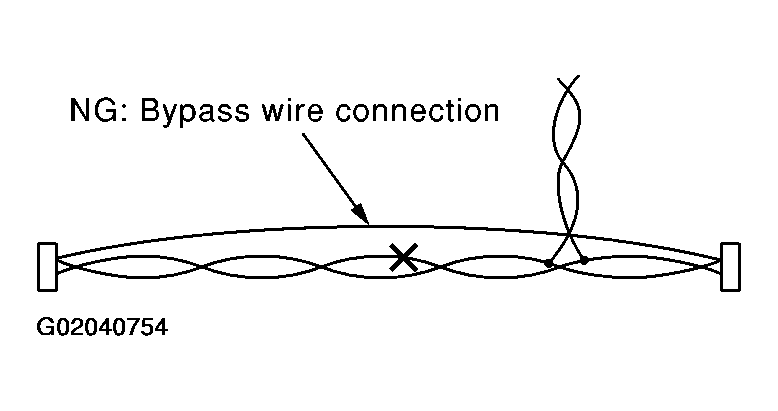

Do not make a bypass connection to repaired area. (If it is done, branch part will be removed and characteristics of twisted wire will be lost.)

Fig 2: Precaution For Harness Repair (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
