Consult-II Main Function

In a diagnosis function (main function), there are "WORK SUPPORT", "SELF-DIAGNOSTIC RESULTS", "DATA MONITOR", "CAN DIAG SUPPORT MNTR", "ACTIVE TEST", "FUNCTION TEST", "ECU PART NUMBER".

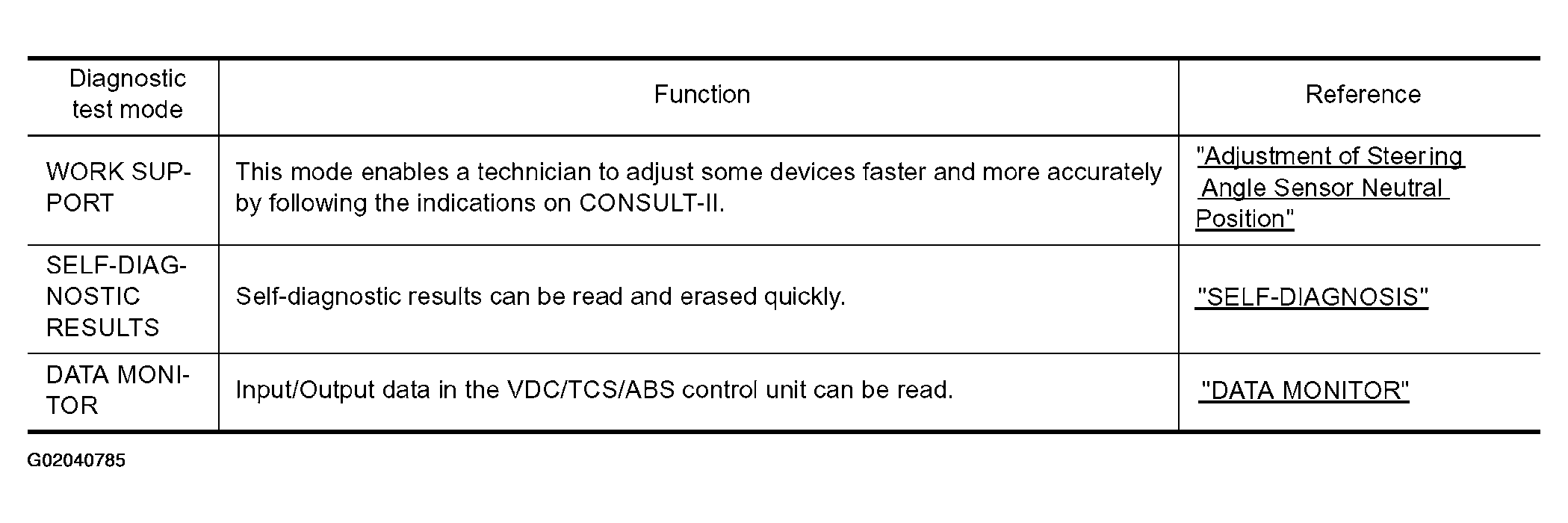

Fig 1: Consult II Function Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

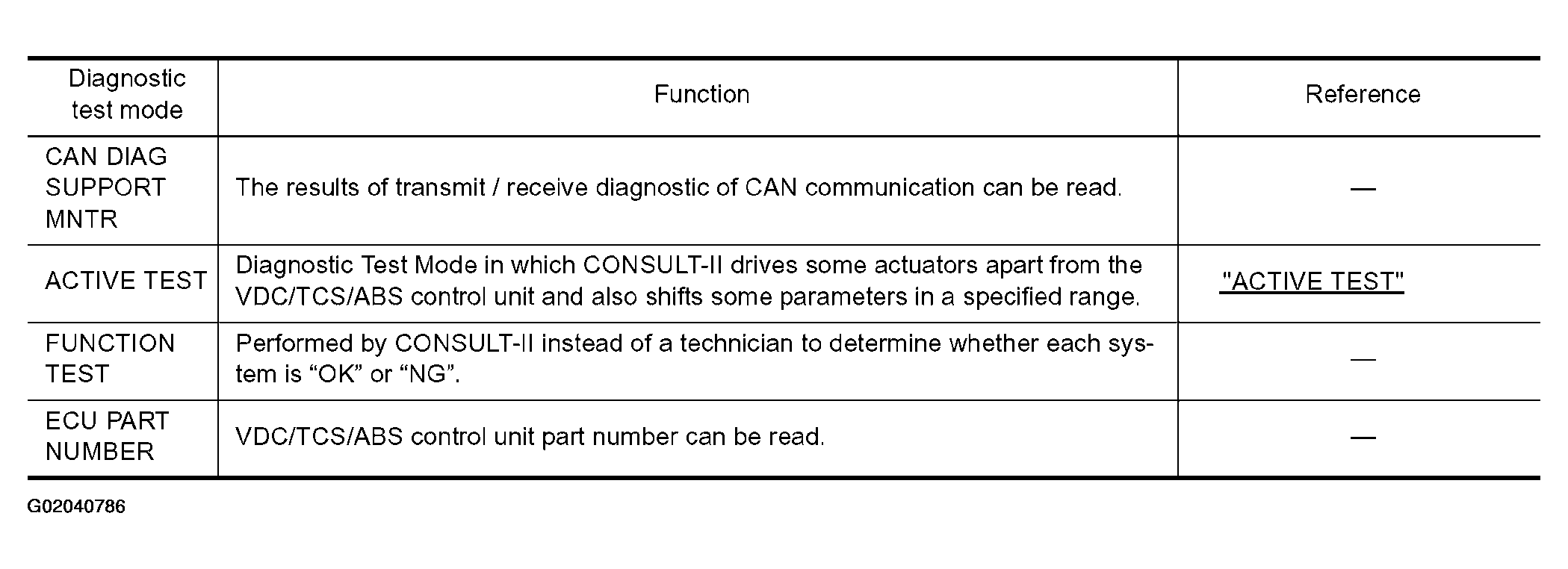

Fig 2: Consult II Function Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
