Removal and Installation: Notes

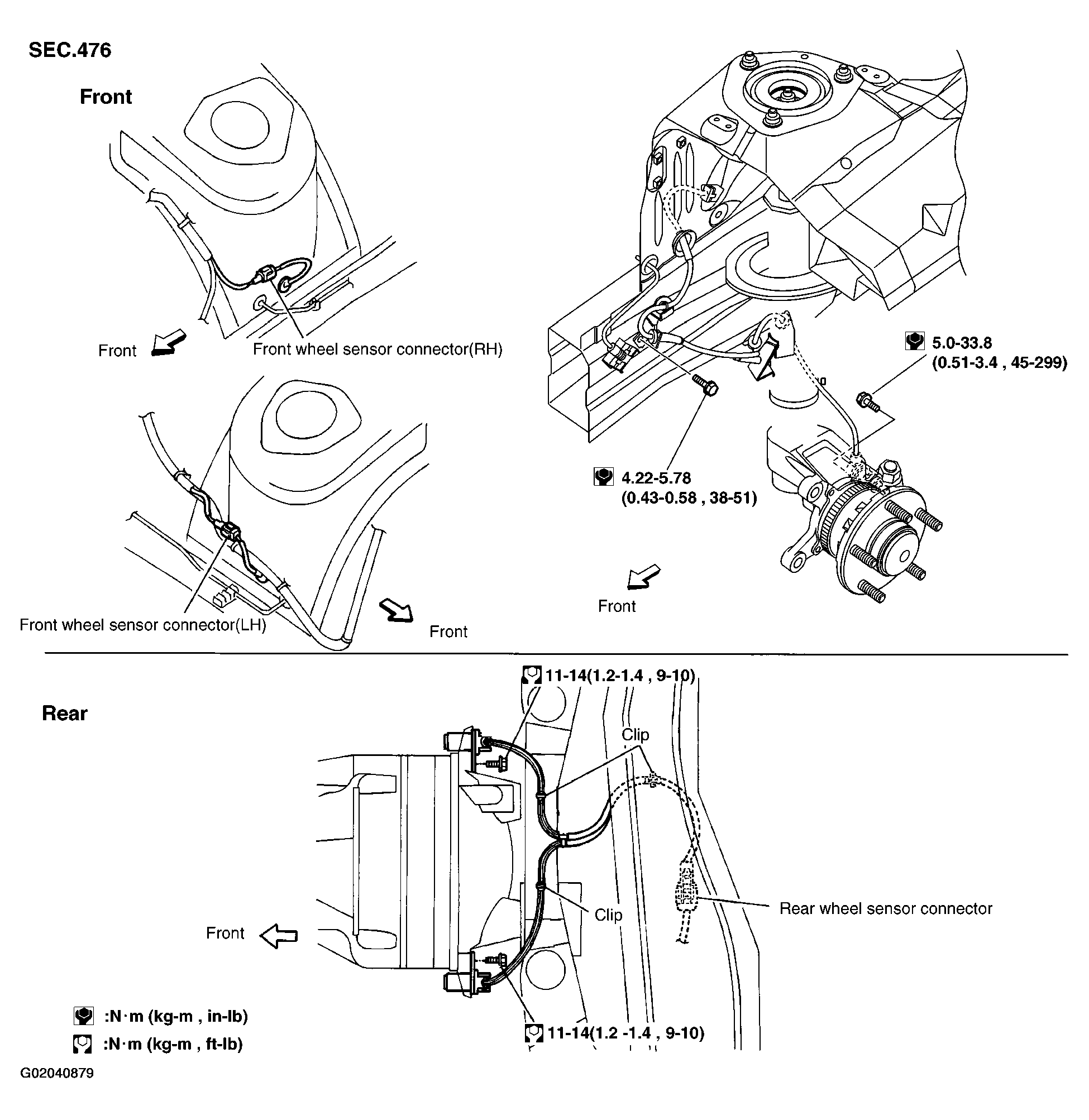

Fig 1: Removing And Installing Wheel Sensors

G02040879

Courtesy of NISSAN MOTOR CO., U.S.A.
