Work Flow

NOTE: For diagnostic procedure 1, see DIAGNOSTIC PROCEDURE 1, CHECK "L" TERMINAL CIRCUIT  . For diagnostic procedure 2, see DIAGNOSTIC PROCEDURE 2, CHECK "B" TERMINAL CIRCUIT  . For diagnostic procedure 3, see DIAGNOSTIC PROCEDURE 3, CHECK "L" TERMINAL CIRCUIT  . For diagnostic procedure 4, see DIAGNOSTIC PROCEDURE 4, CHECK "B" TERMINAL CIRCUIT  . For diagnostic procedure 5, see DIAGNOSTIC PROCEDURE 5, CHECK "S" TERMINAL CIRCUIT  .

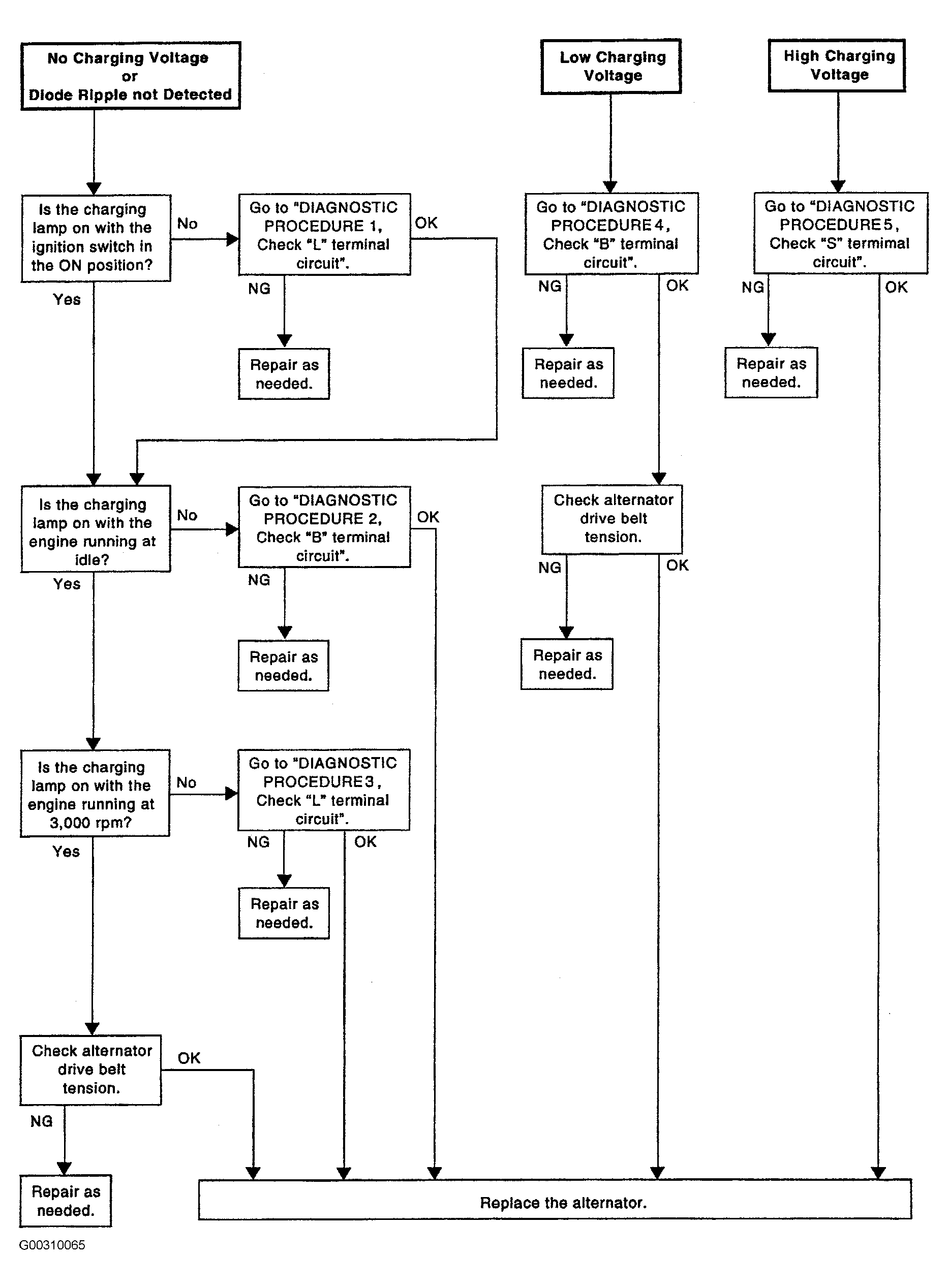

Fig 1: Identifying Work Flow
G00310065Courtesy of NISSAN MOTOR CO., U.S.A.
