Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

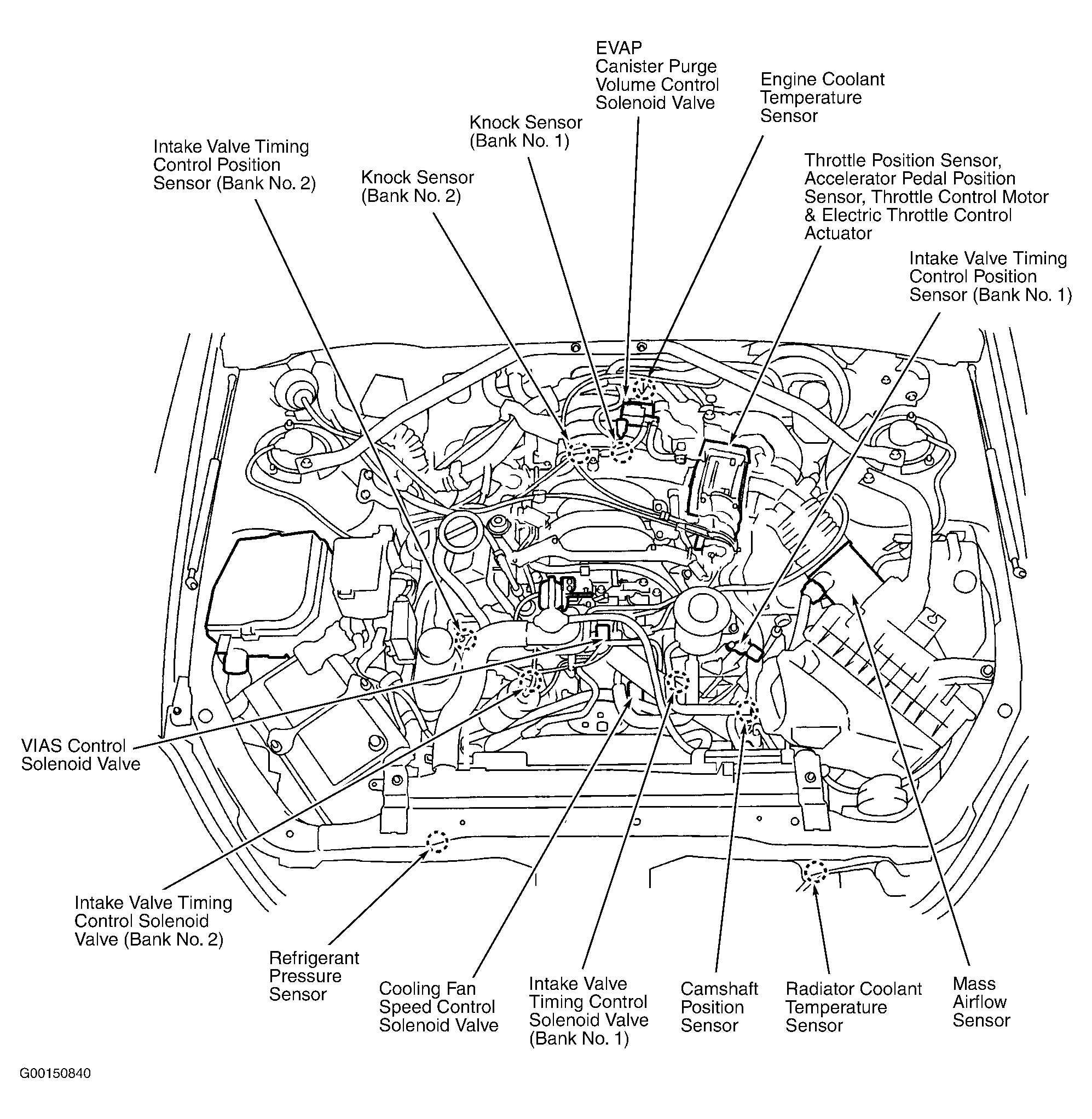

Fig 1: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

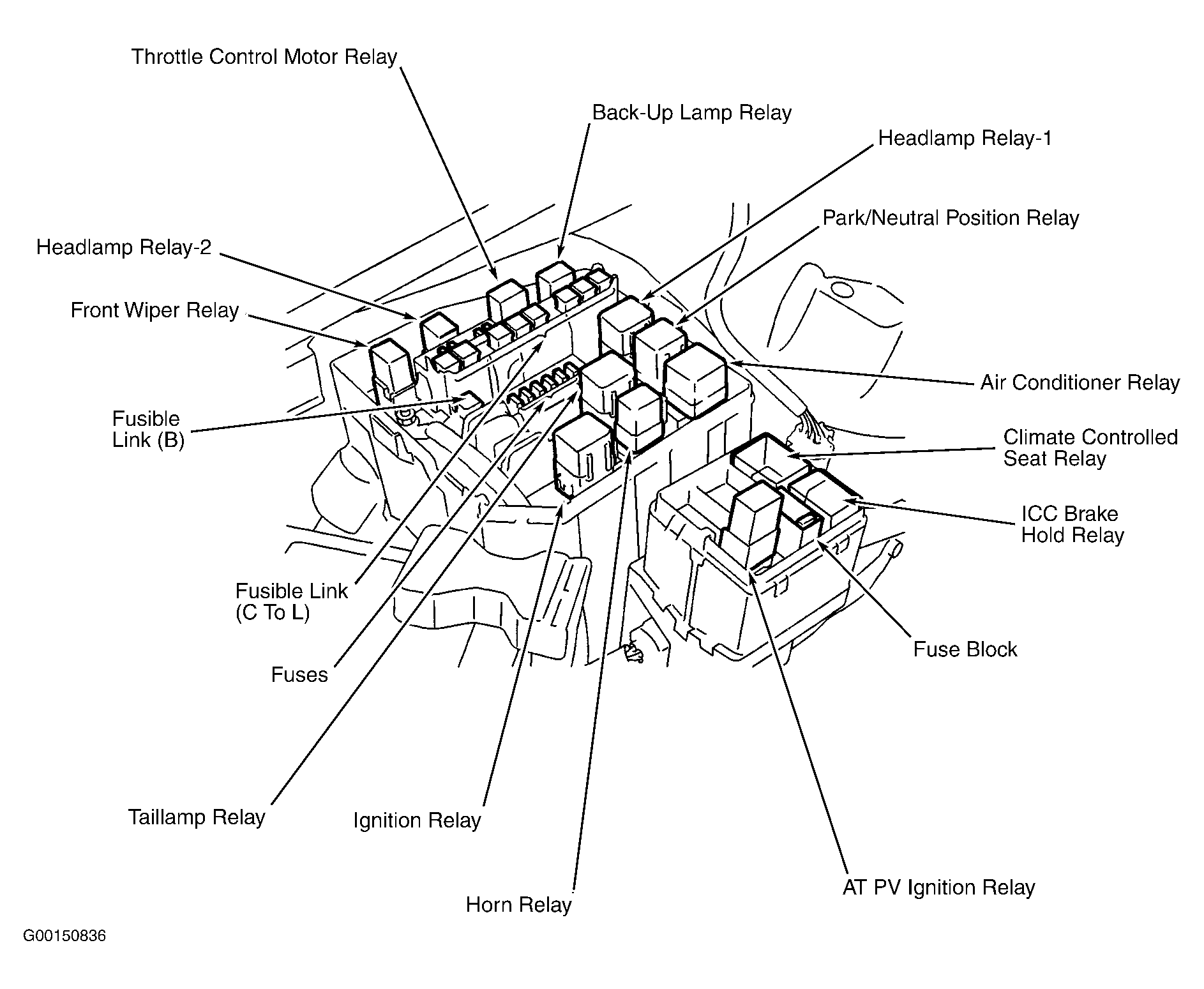

Fig 2: Engine Room Box

Courtesy of NISSAN MOTOR CO., U.S.A.

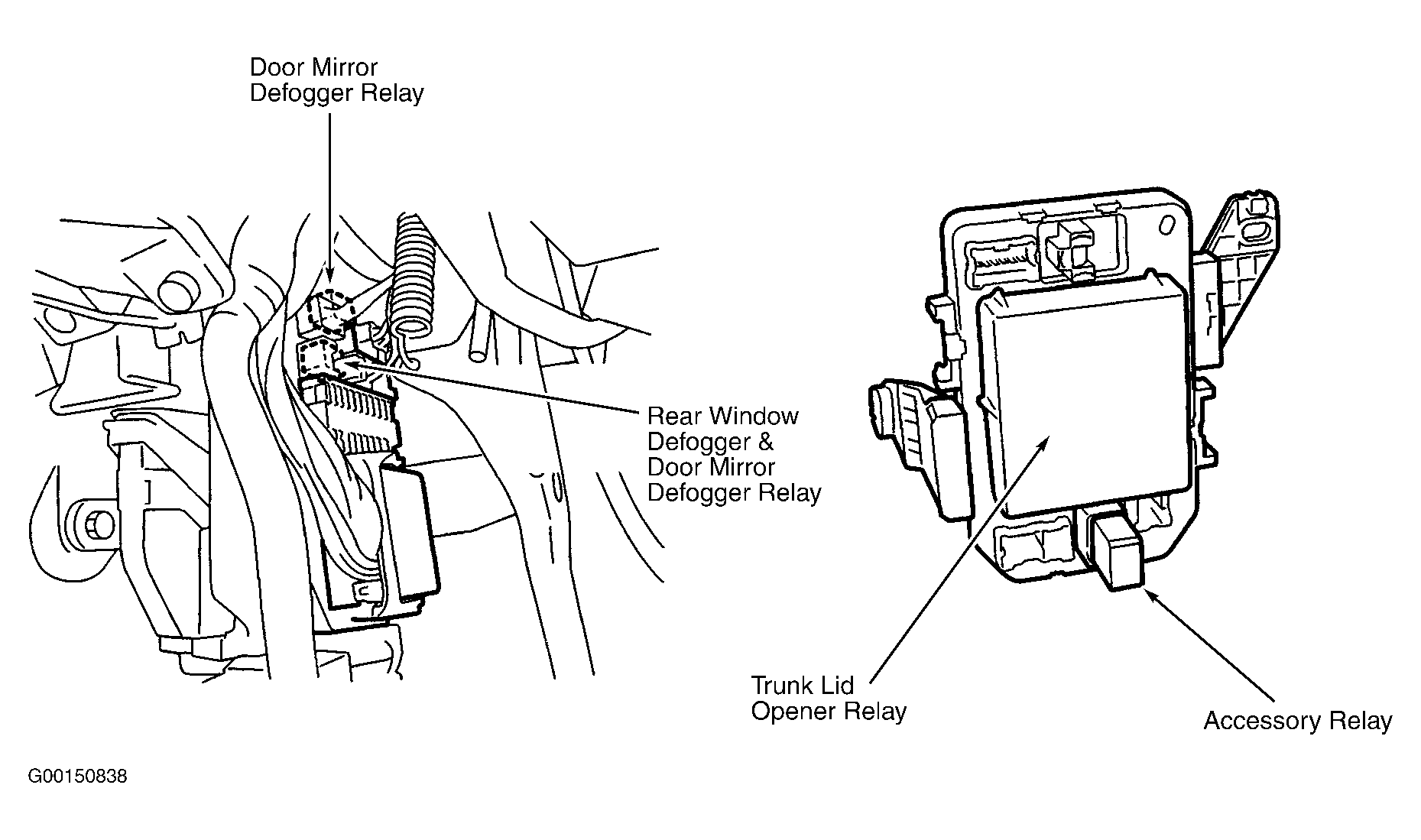

Fig 3: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

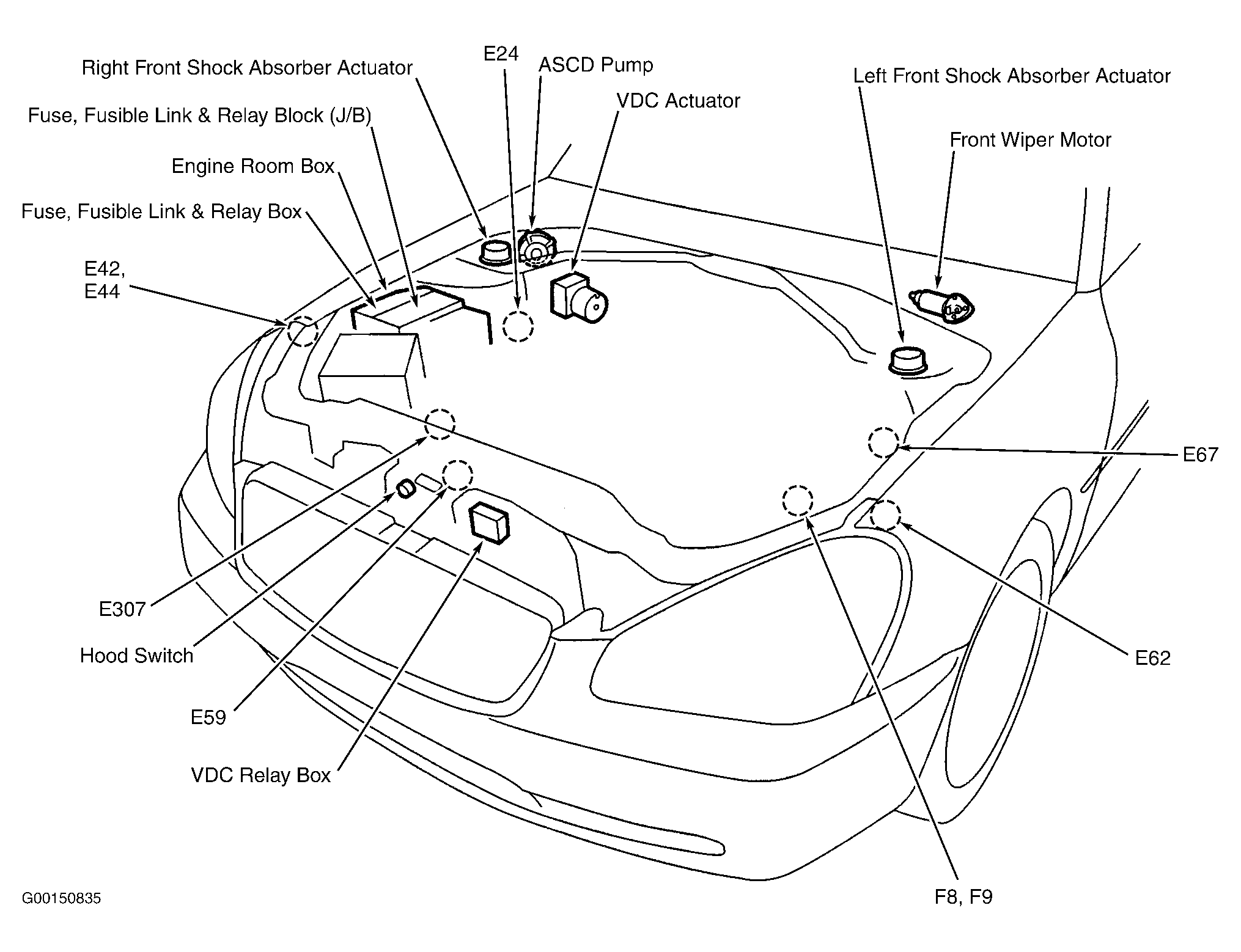

Fig 4: Left Side Of Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

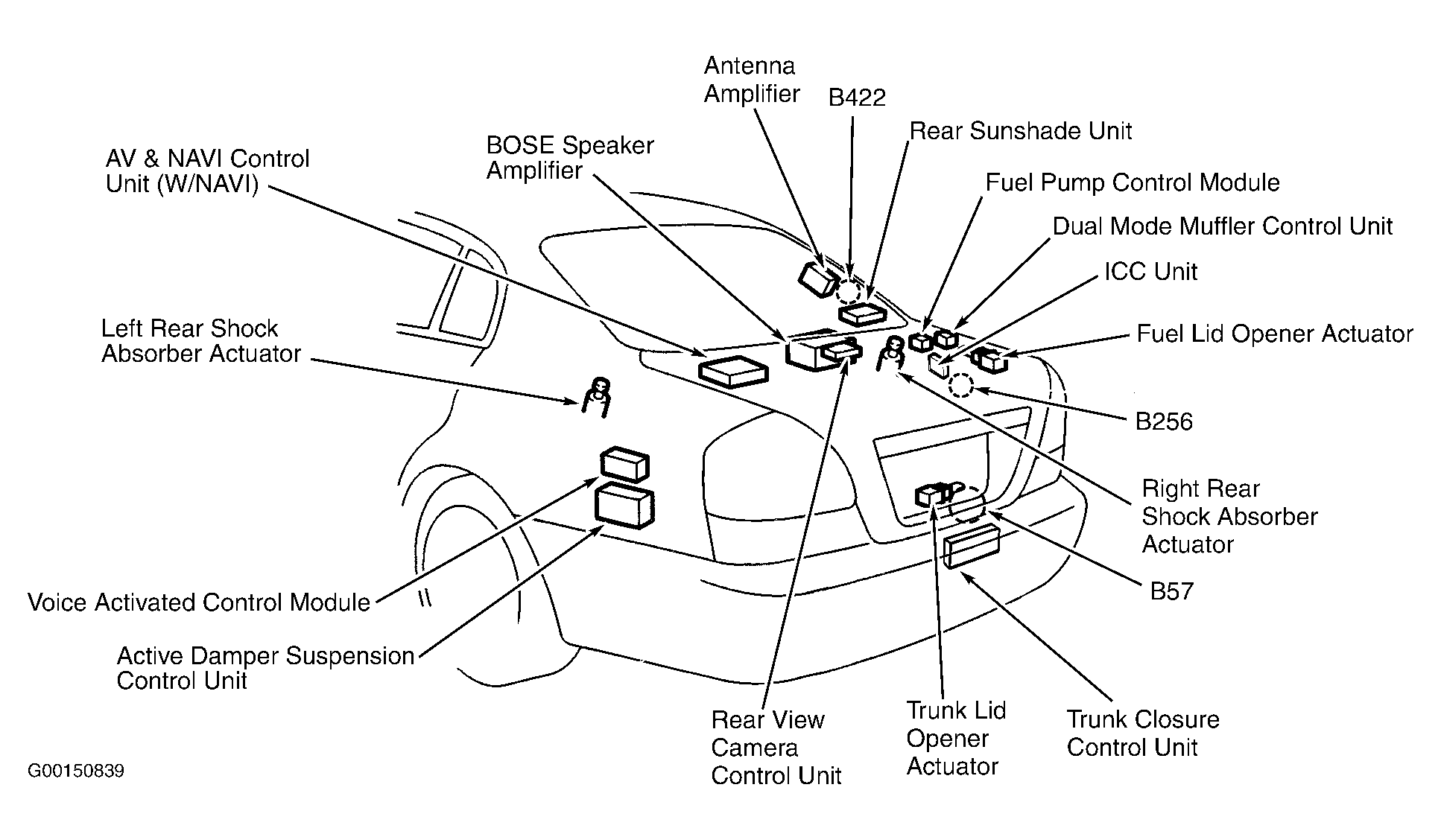

Fig 5: Luggage Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

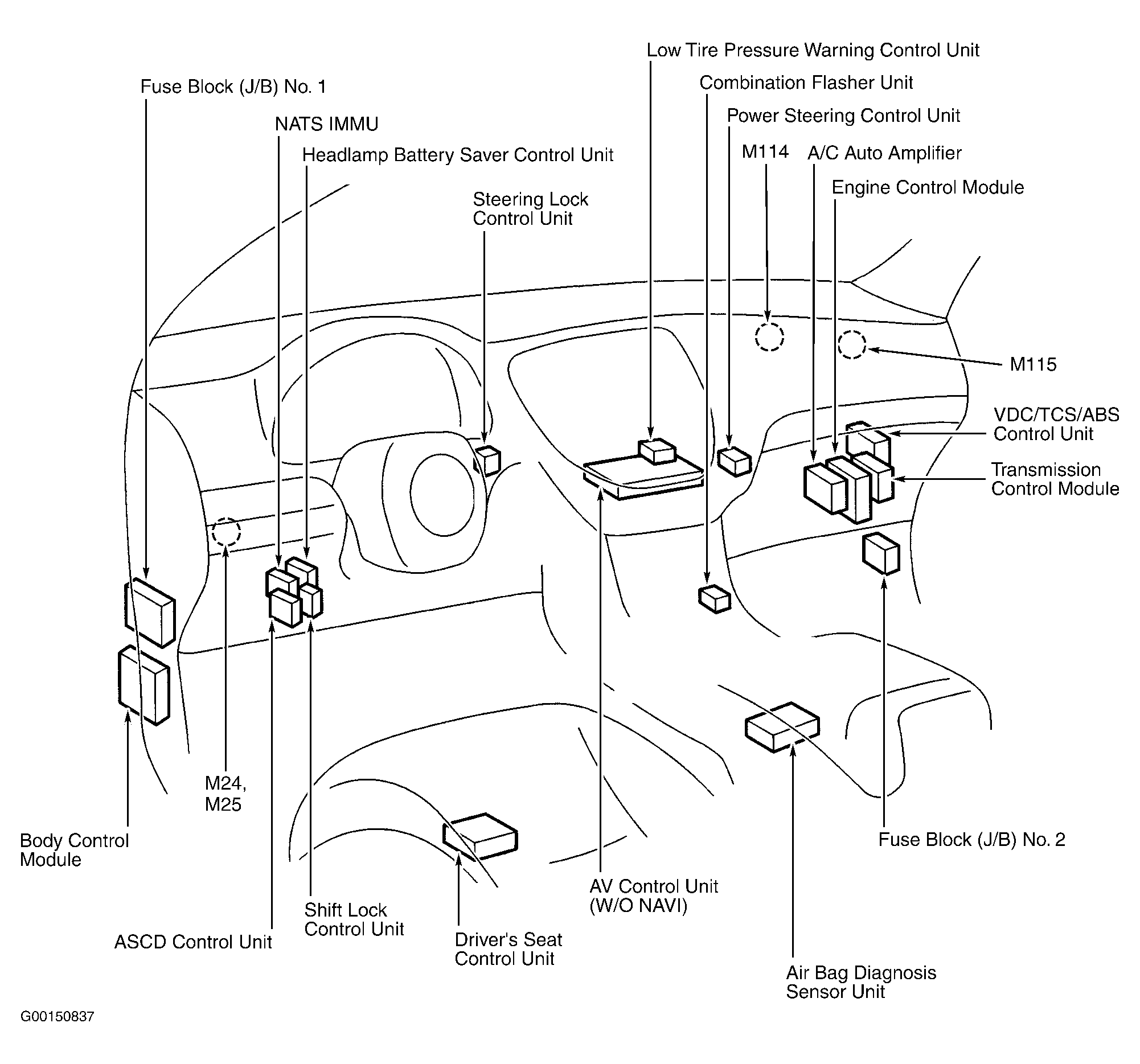

Fig 6: Right Side Of Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.
