Connector Identification

Fig 1: Identifying ECM Harness Connector Terminals (Harness Side Of Connectors Shown)
G00064028Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Fuse Block No. 1 Connectors & Terminals (Under Left Side Of Instrument Panel)
G00064027Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Fuse Block No. 2 Connectors & Terminals (Under Right Side Of Instrument Panel)
G00064026Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Fuse, Fusible Link & Relay Block Connectors & Terminals (1 Of 2)
G00064057Courtesy of NISSAN MOTOR CO., U.S.A.

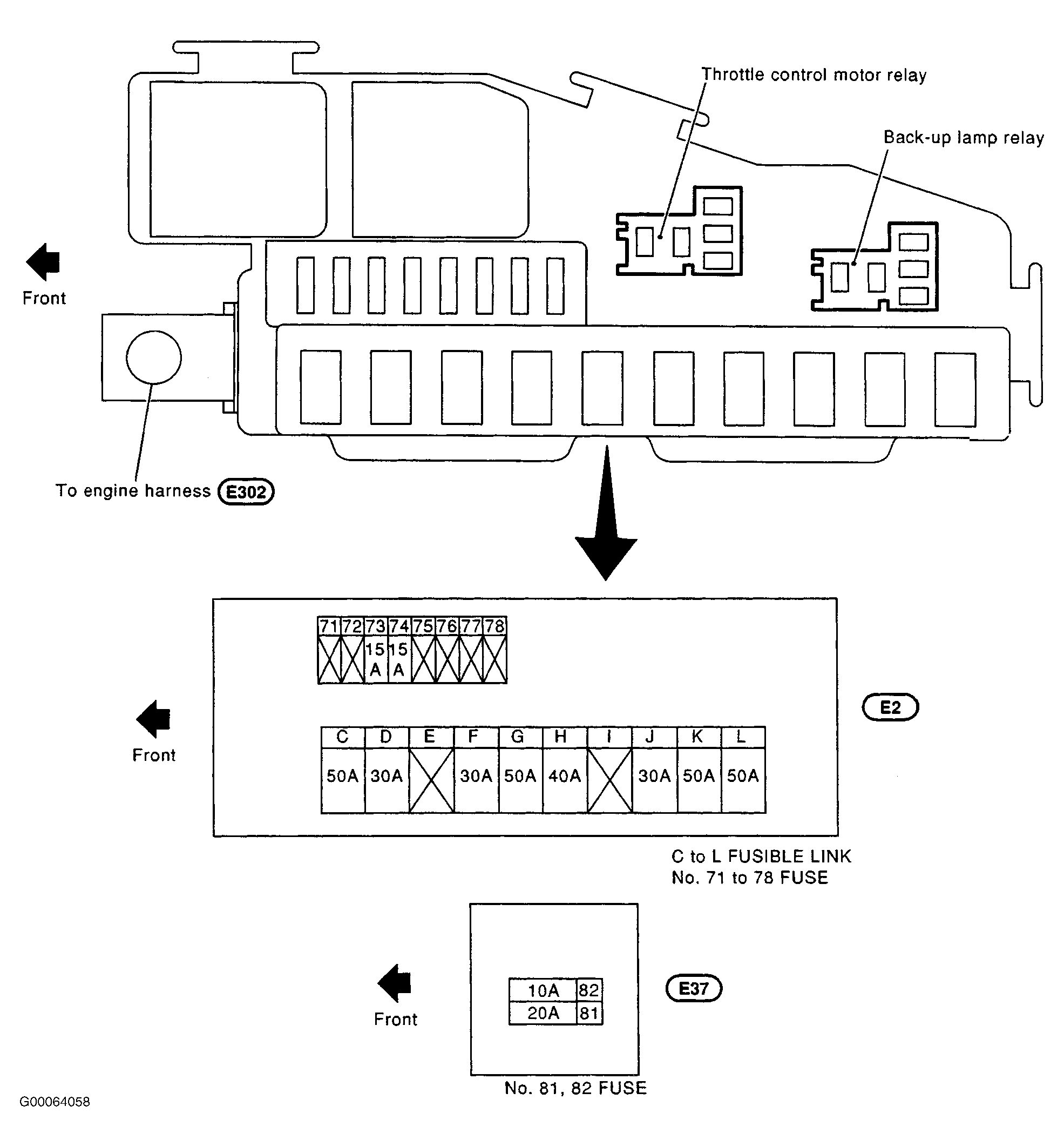

Fig 5: Identifying Fuse, Fusible Link & Relay Box Connectors & Terminals (2 Of 2)
G00064058Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 6: Identifying Super Multiple Junction (SMJ) Connectors F105 & M135 Terminals (Above Fuse Block No. 2)
G00064025Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Identifying Super Multiple Junction (SMJ) Connectors M15 & M141 Terminals (Above Fuse Block No. 2)
G00064048Courtesy of NISSAN MOTOR CO., U.S.A.
ENGINE CONTROL HARNESS CONNECTOR IDENTIFICATION

Connector Name (1) Color Number Of Pins Description
Engine Control Harness
F1 Gray 1 Oil Pressure Switch
F2 Black 1 Compressor
F3 Brown 2 Power Steering Solenoid Valve
F4 Black 3 Camshaft Position Sensor (Phase)
F5 Gray 10 To E315
F6 Black 2 Compressor (ECV Solenoid Valve)
F7 Gray 5 Mass Airflow Sensor
F8 ..... ..... Engine Ground
F9 ..... ..... Engine Ground
F12 Black 3 Intake Valve Timing Control Position Sensor (Bank 1)
F13 Green 2 Intake Valve Timing Control Solenoid Valve (Bank 1)
F14 Gray 2 Cooling Fan Speed Control Solenoid Valve
F15 Gray 3 Ignition Coil (With Power Transistor) No. 1
F16 Gray 3 Ignition Coil (With Power Transistor) No. 3
F17 Gray 3 Ignition Coil (With Power Transistor) No. 5
F18 Gray 3 Ignition Coil (With Power Transistor) No. 7
F19 Green 6 Electric Throttle Control Actuator
F20 Blue 6 Electric Throttle Control Actuator
F21 Green 6 To F201
F22 Green 4 Heated Oxygen Sensor 1 (Bank 1)
F23 Gray 2 Condenser
F24 Light Blue 2 To F261
F25 Blue 2 EVAP Canister Purge Volume Control Solenoid Valve
F26 Green 10 A/T Unit Assembly
F27 Green 8 A/T Unit Assembly
F28 Black 8 A/T Unit Assembly
F29 Black 2 VIAS Control Solenoid Valve
F30 Black 3 Intake Valve Timing Control Position Sensor (Bank 2)
F31 Green 2 Intake Valve Timing Control Solenoid Valve (Bank 2)
F32 Light Blue 8 To E32
F33 Gray 10 To E33
F34 Green 10 To E34
F35 Gray 3 Ignition Coil (With Power Transistor) No. 2
F36 Gray 3 Ignition Coil (With Power Transistor) No. 4
F37 Gray 3 Ignition Coil (With Power Transistor) No. 6
F38 Gray 3 Ignition Coil (With Power Transistor) No. 8
F40 Dark Green/Yellow 4 To F241
F41 Green 6 To F221
F42 Green 4 Heated Oxygen Sensor 1 (Bank 2)
F43 Gray 3 Absolute Pressure Sensor (If Equipped)
F101 White 96 ECM
F102 White 54 ECM
F103 White 24 TCM
F104 Gray 24 TCM
F105 White 46 To M135
F106 Pink 20 Joint Connector No. 28
F107 Pink 20 Joint Connector No. 29
F108 Blue 12 Joint Connector No. 30
Engine Control Sub-Harness No. 1
F201 Green 6 To F21
F202 Gray 2 Injector No. 1
F203 Gray 2 Injector No. 3
F204 Gray 2 Injector No. 5
F205 Gray 2 Injector No. 7
Engine Control Sub-Harness No. 2
F221 Green 6 To F41
F222 Gray 2 Injector No. 2
F223 Gray 2 Injector No. 4
F224 Gray 2 Injector No. 6
F225 Gray 2 Injector No. 8
Engine Control Sub-Harness No. 3
F241 Black 4 To F40
F242 Gray 2 Knock Sensor (Bank No. 1)
F243 Gray 2 Knock Sensor (Bank No. 2)
Engine Control Sub-Harness No. 4
F261 Light Blue 2 To F24
F262 Gray 2 ECT Sensor
(1) For locations, see Fig 8 .

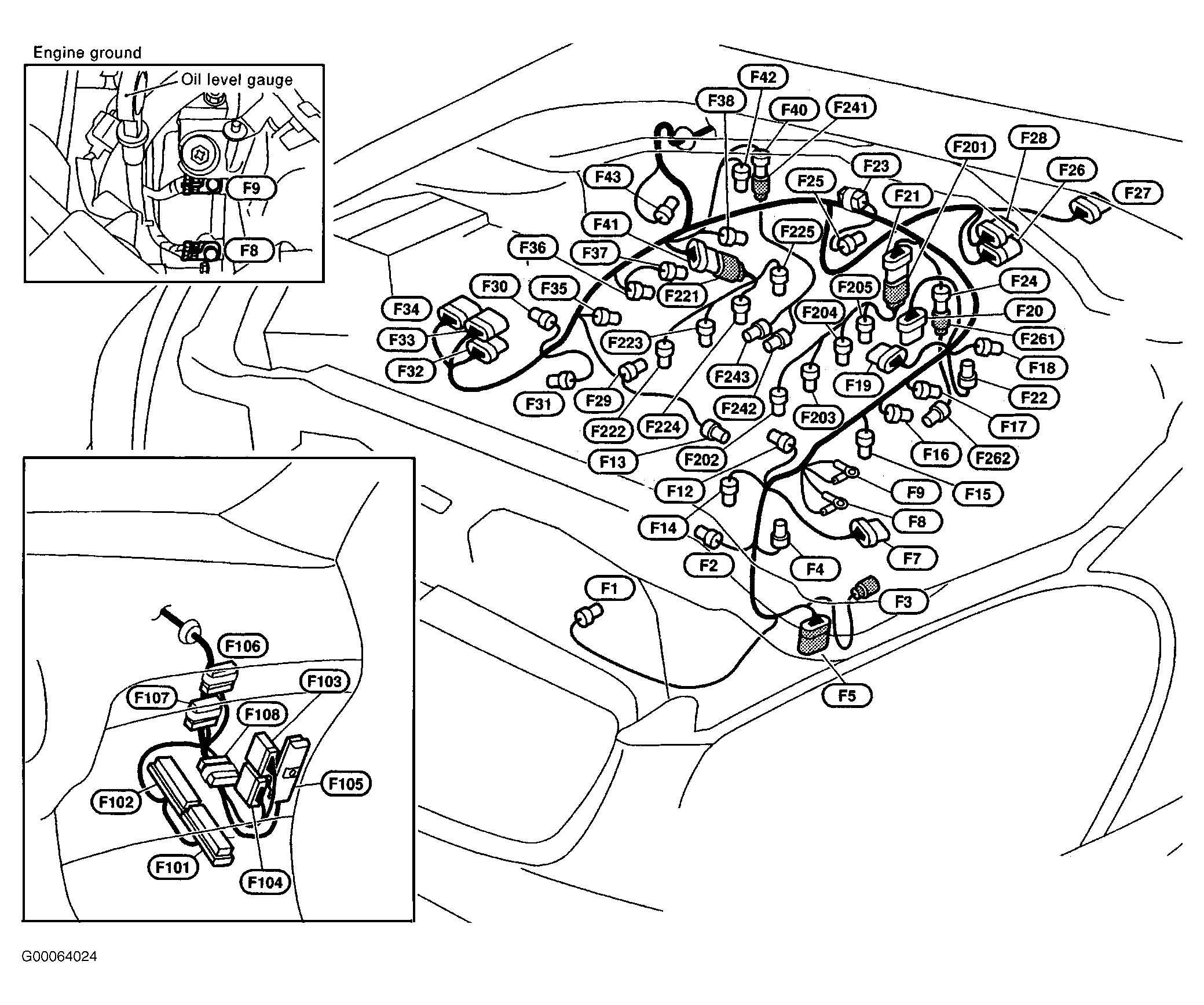

Fig 8: Identifying Engine Control Harness Routing (Under Hood)
G00064024Courtesy of NISSAN MOTOR CO., U.S.A.

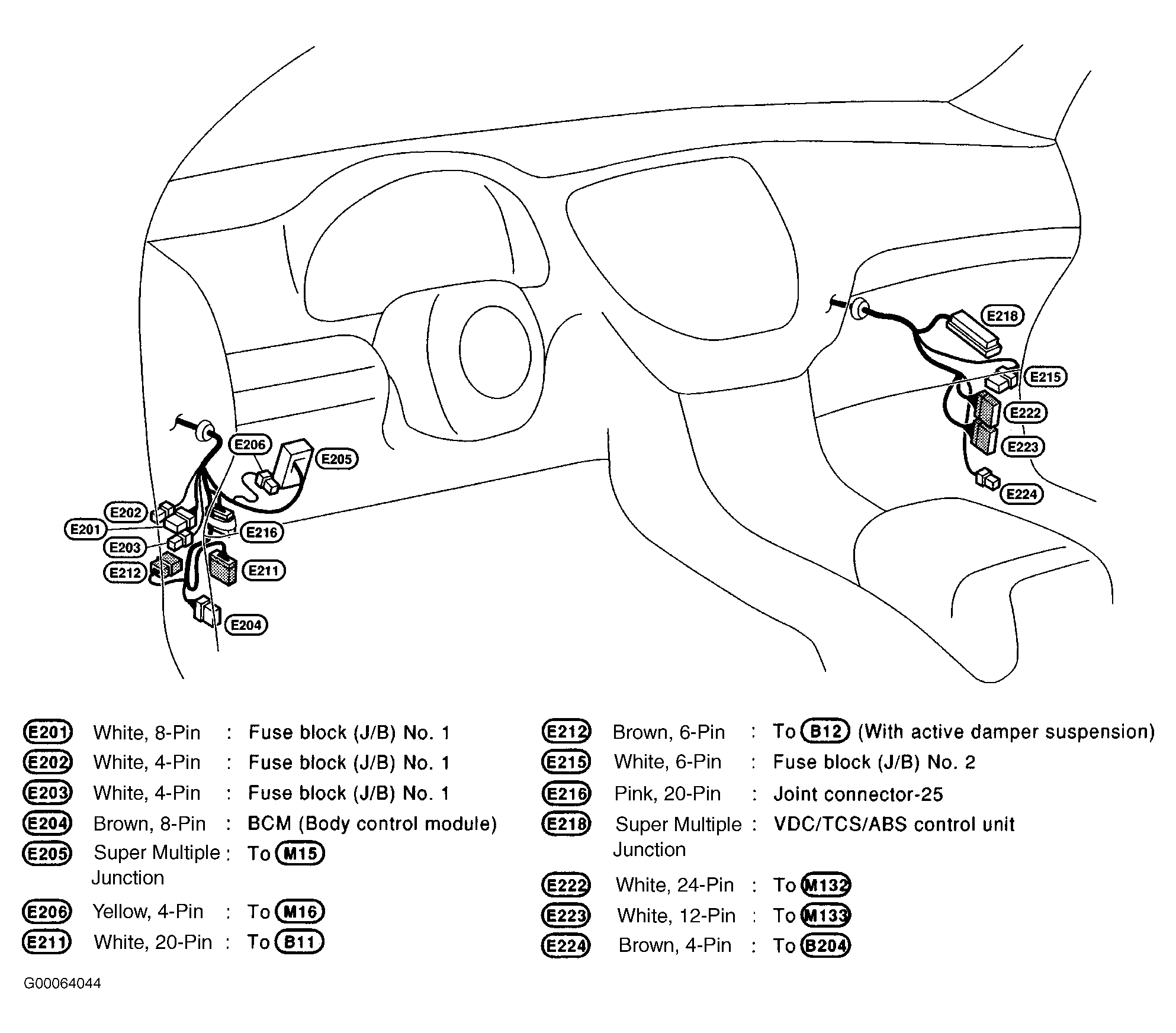

Fig 9: Identifying Engine Control Harness Routing (Under Instrument Panel)
G00064044Courtesy of NISSAN MOTOR CO., U.S.A.

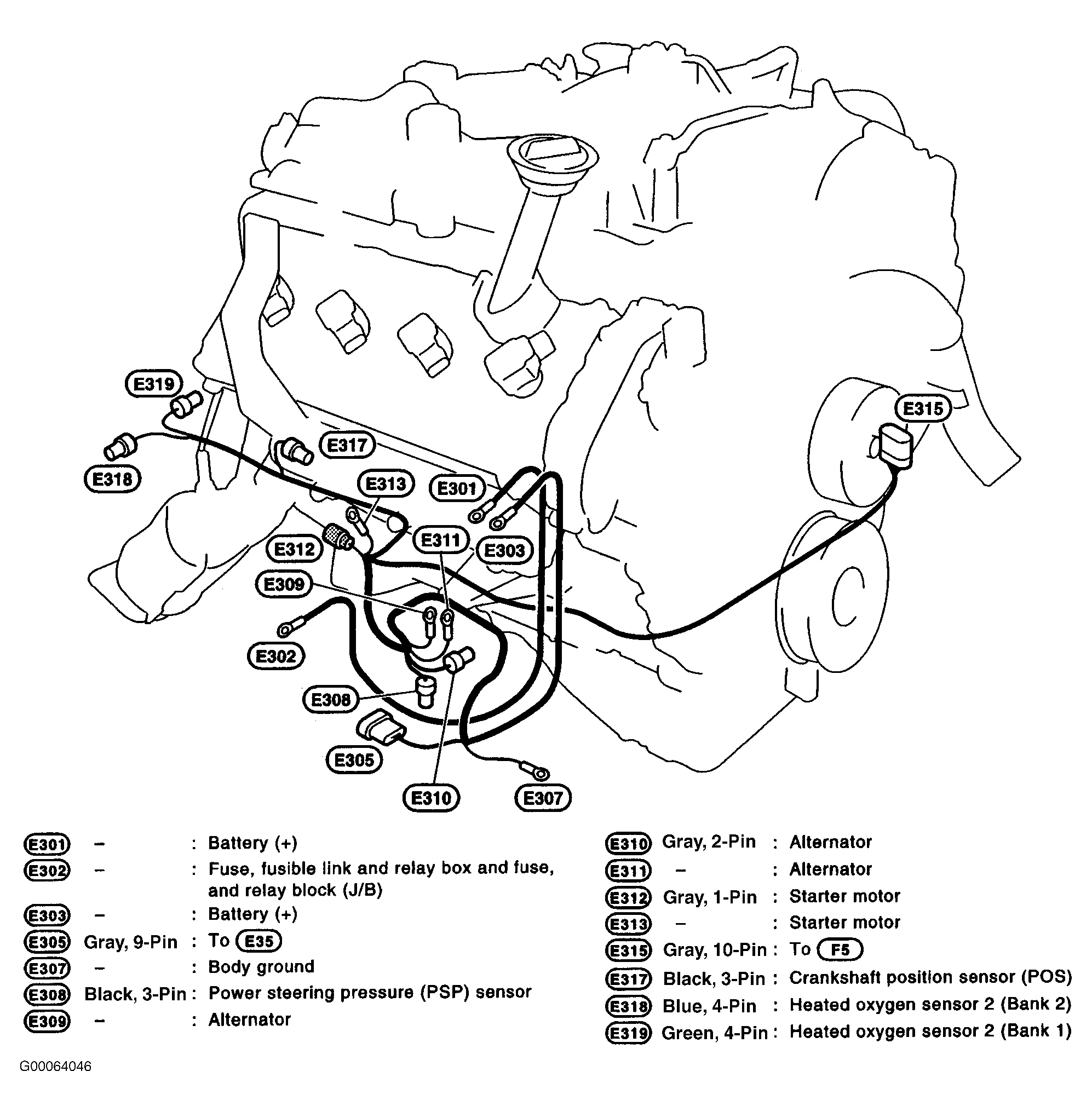

Fig 10: Identifying Engine Harness Routing (Right Side Of Engine)
G00064046Courtesy of NISSAN MOTOR CO., U.S.A.
MAIN HARNESS CONNECTOR IDENTIFICATION

Connector Name (1) Color Number Of Pins Description
Main Harness
M1 SMJ 60 Fuse Block No. 1
M4 SMJ 118 Body Control Module
M5 SMJ 46 To B5
M6 Gray 24 To B6
M7 White 24 To B7 (With NAVI & For Canada With Rear Control Switch)
M8 Black 1 Parking Brake Switch
M9 Pink 20 Joint Connector No. 1
M10 Black 20 Joint Connector No. 2
M11 SMJ 39 To D1
M12 White 8 Shift Lock Control Unit
M13 Gray 6 VDC OFF Switch
M15 SMJ 69 To E205
M16 Yellow 4 To E206
M17 White 3 Illumination Control Switch
M18 White 4 Headlamp Aiming Switch
M19 White 10 Door Mirror Remote Control Switch (With Memory Mirror)
M20 Gray 4 Active Damper Suspension Control Switch
M21 Gray 20 Joint Connector No. 3
M22 Blue 20 Joint Connector No. 4
M23 White 18 To R3
M24 ..... ..... Body Ground
M25 ..... ..... Body Ground
M28 White 10 Door Mirror Remote Control Switch (Without Memory Mirror)
M29 White 2 Low Tire Pressure Warning Check Switch
M31 White 16 Data Link Connector
M32 White 16 NATS IMMU
M33 White 6 Headlamp Battery Saver Control Unit
M34 White 8 Headlamp Battery Saver Control Unit
M35 Brown 24 ASCD Control Unit
M36 White 2 Diode
M37 White 3 ICC Warning Chime (With ICC)
M38 Pink 20 Joint Connector No. 5
M39 White 8 To M40
M40 White 8 To M39
M41 Brown 20 Instrument Cluster
M42 Brown 24 Instrument Cluster
M43 White 24 Instrument Cluster
M44 Black 2 Sunload Sensor
M45 White 6 Joint Connector No. 6
M46 Black 20 Joint Connector No. 7
M47 Gray 20 Joint Connector No. 8
M48 Black 20 Joint Connector No. 9
M49 Orange 20 Joint Connector No. 10
M50 Gray 3 AV Control Unit (Except Canada With Rear Control Switch)
M51 Gray 6 ADP Steering Switch
M52 White 8 Steering Wheel Angle Sensor
M53 Gray 8 Combination Switch (Spiral Cable)
M54 Yellow 6 Combination Switch (Spiral Cable)
M55 White 12 Combination Switch (Lighting Switch)
M56 Gray 12 Combination Switch (Front Wiper Switch)
M57 White 3 Tilt Sensor
M58 White 2 Tilt Motor
M59 White 3 Telescopic Sensor
M60 White 2 Telescopic Motor
M61 White 4 To M401
M64 White 4 Key Switch & Key Lock Solenoid
M65 White 6 NATS Antenna Amp.
M68 White 2 In-Vehicle Sensor
M69 Gray 4 Steering Lock Control Unit
M70 Black 5 Ignition Switch
M71 White 4 Hazard Switch
M72 White 2 Ignition Key Hole Illumination
M73 Brown 2 Microphone
M74 White 3 Warning Chime
M75 White 4 Clock
M77 Gray 24 AV Control Unit (Without NAVI)
M78 White 24 AV Control Unit (Without NAVI)
M79 Green 20 Joint Connector No. 11
M80 Red 20 Joint Connector No. 12
M81 Pink 20 Joint Connector No. 13
M82 Gray 24 Display
M83 White 20 Multi-Function Switch
M84 White 16 Tire Pressure Warning Control Unit
M86 White 12 Audio Unit
M87 White 16 Audio Unit
M88 White 12 Audio Unit
M89 Brown 2 Antenna Amp. (Via Sub-Harness)
M90 White 6 Cooling Unit Assembly
M91 White 8 Combination Flasher Unit
M92 White 3 Front Cigarette Lighter Socket
M93 Black 6 Rear Vent Door Motor
M94 White 6 Heated Seat Switch (Driver Side)
M95 Brown 6 Heated Seat Switch (Passenger Side)
M96 White 4 Handset (Optional)
M97 White 12 A/T Device
M99 Black 6 Yaw Rate Side/G Sensor
M100 Black 2 Front Power Socket
M101 White 24 To B501
M102 White 2 Console Box Lamp
M103 Yellow 28 Air Bag Diagnosis Sensor Unit
M106 White 3 Mode Door Motor (Passenger Side)
M107 White 3 Air Mix Door Motor (Passenger Side)
M108 White 8 Power Steering Control Unit
M109 White 16 CD Auto Changer
M110 White 3 Optical Sensor
M111 White 6 To M411
M112 White 6 Blower Motor
M114 ..... ..... Body Ground
M115 ..... ..... Body Ground
M116 White 2 Glove Box Lamp
M117 White 2 Trunk Lid Opener Cancel Switch
M118 White 3 Intake Door Motor
M119 Gray 20 A/C Auto Amp.
M120 Gray 16 A/C Auto Amp.
M121 Yellow 4 Front Passenger Air Bag Module
M123 Blue 20 Joint Connector No. 14
M124 Black 20 Joint Connector No. 15
M125 Black 20 Joint Connector No. 16
M126 Black 20 Joint Connector No. 17
M127 Orange 20 Joint Connector No. 18
M128 Orange 20 Joint Connector No. 19
M129 Black 20 Joint Connector No. 20
M130 White 6 Joint Connector No. 21
M132 White 24 To E222
M133 White 12 To E223
M135 SMJ 46 To F105
M137 White 3 To B207 (With Rear View Camera)
M138 Brown 24 To B209
M139 White 4 To B209 (With Rear View Camera Or Rear Heated Seat)
M140 SMJ 6 To B210
M141 SMJ 69 To B211
M142 SMJ 39 To D31
M143 White 10 Fuse Block No. 2
M144 White 8 Fuse Block No. 2
M145 White 8 Fuse Block No. 2
Main Sub-Harness No. 1
M401 White 4 To M61
M402 Black 2 Stop Lamp Switch
M403 Brown 2 ASCD Brake Switch
M404 Brown 2 ICC Brake Switch (With ICC)
Main Sub-Harness No. 2
M411 White 6 To M111
M412 Brown 2 Left Instrument Speaker
M413 Brown 2 Center Instrument Speaker
M414 Brown 2 Right Instrument Speaker
(1) For connector locations, see Fig 11 .
Fig 11: Identifying Main Harness Connector Locations
G00103710Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 12: Identifying Continuity Of Joint Connectors
G00103722Courtesy of NISSAN MOTOR CO., U.S.A.
