Input/Output Signal Chart

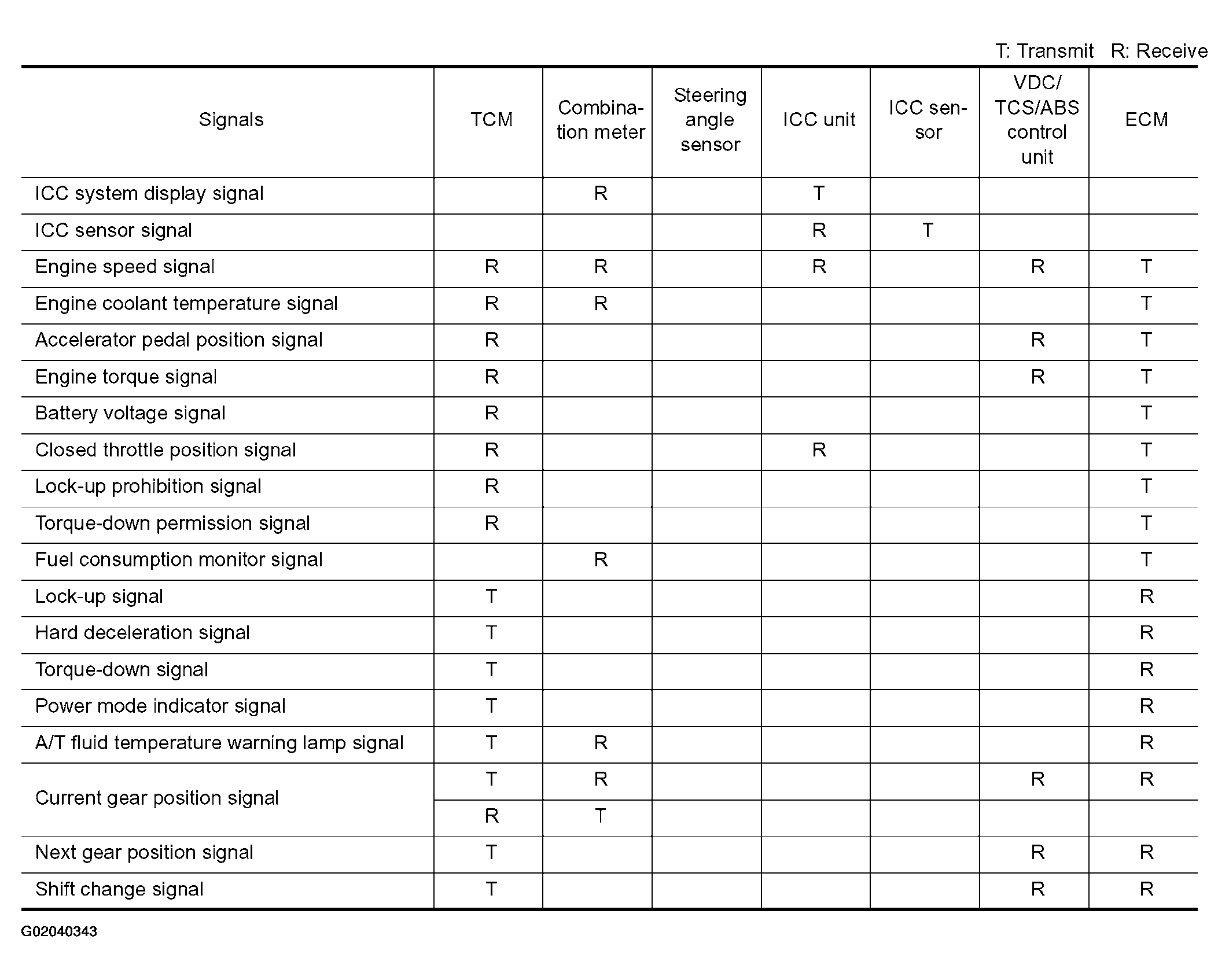

Fig 1: CAN Communication System Input/Output Signal Chart (ICC Model) (1 Of 2)
G02040343Courtesy of NISSAN MOTOR CO., U.S.A.

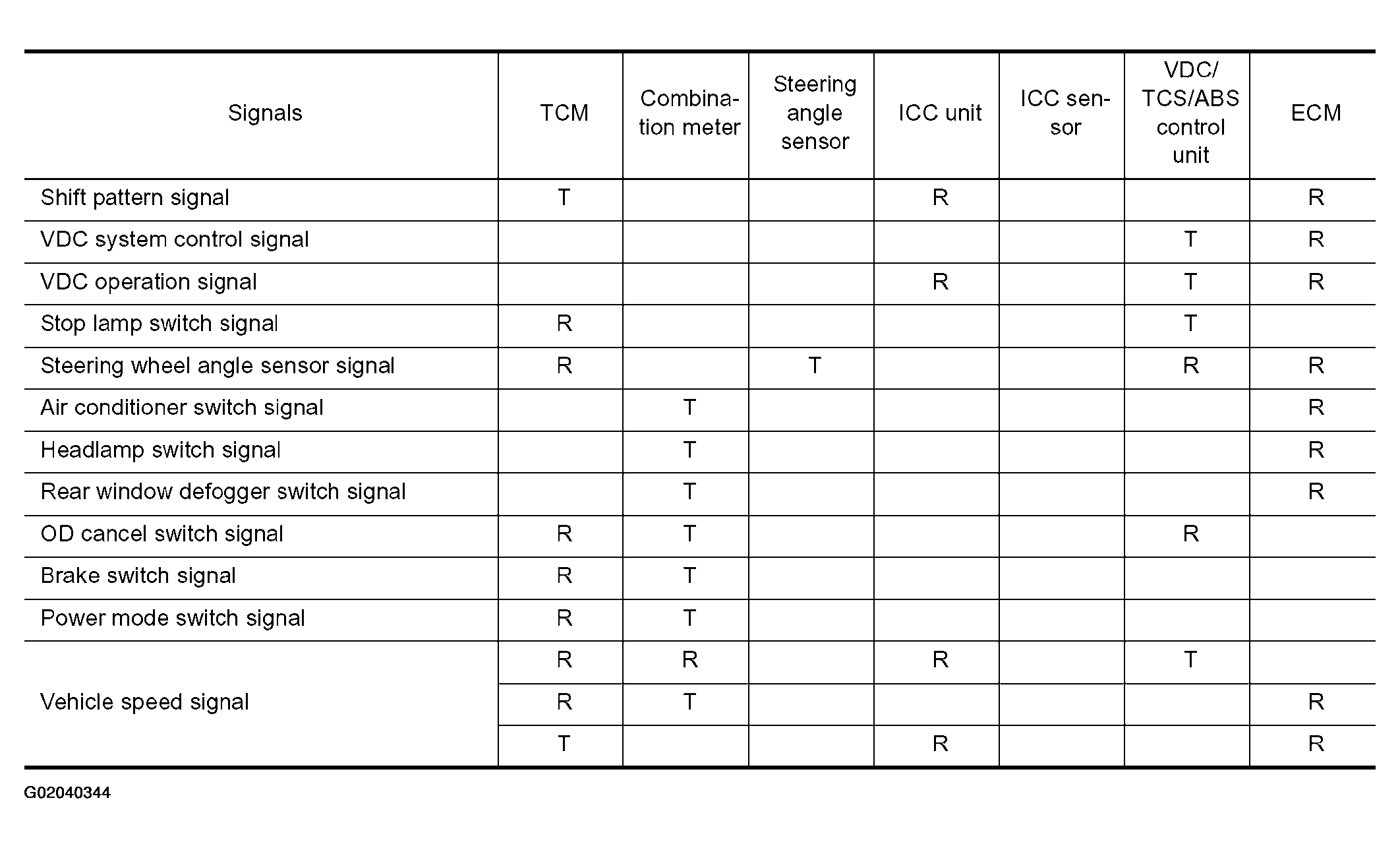

Fig 2: CAN Communication System Input/Output Signal Chart (ICC Model) (2 Of 2)
G02040344Courtesy of NISSAN MOTOR CO., U.S.A.
