Input/Output Signal of TCM

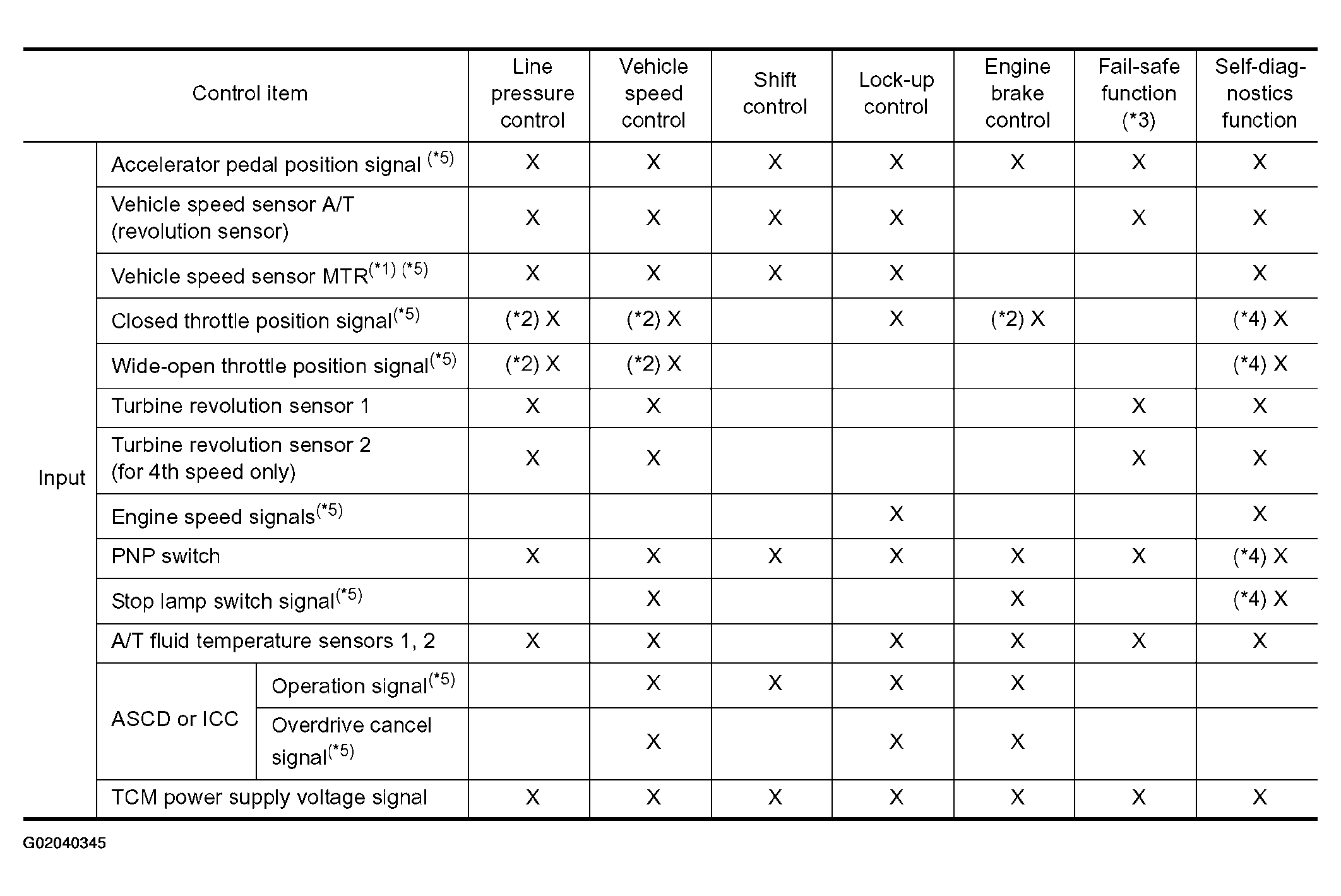

Fig 1: TCM Input/Output Signal Chart (1 Of 2)
G02040345Courtesy of NISSAN MOTOR CO., U.S.A.

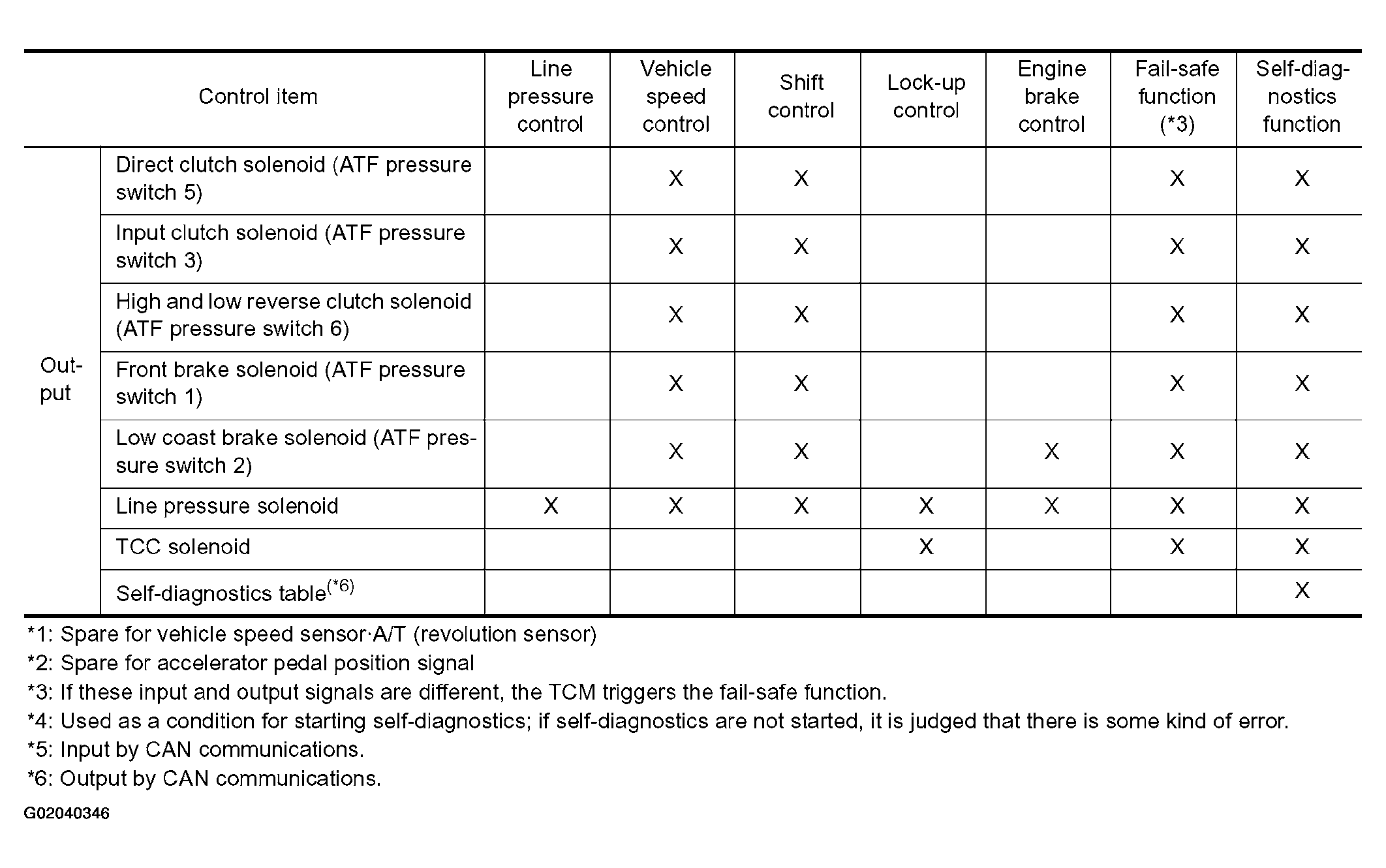

Fig 2: TCM Input/Output Signal Chart (2 Of 2)
G02040346Courtesy of NISSAN MOTOR CO., U.S.A.
