Control Valve Assembly: Installation

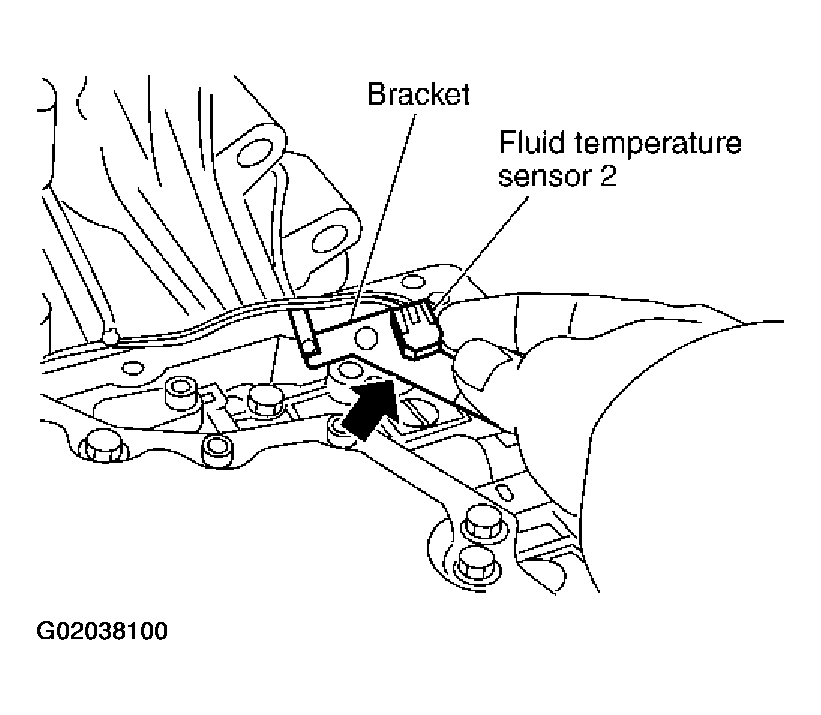

Install fluid temperature sensor 2 in bracket.

Fig 1: Installing On-Vehicle Service Control Valve Assembly (1 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

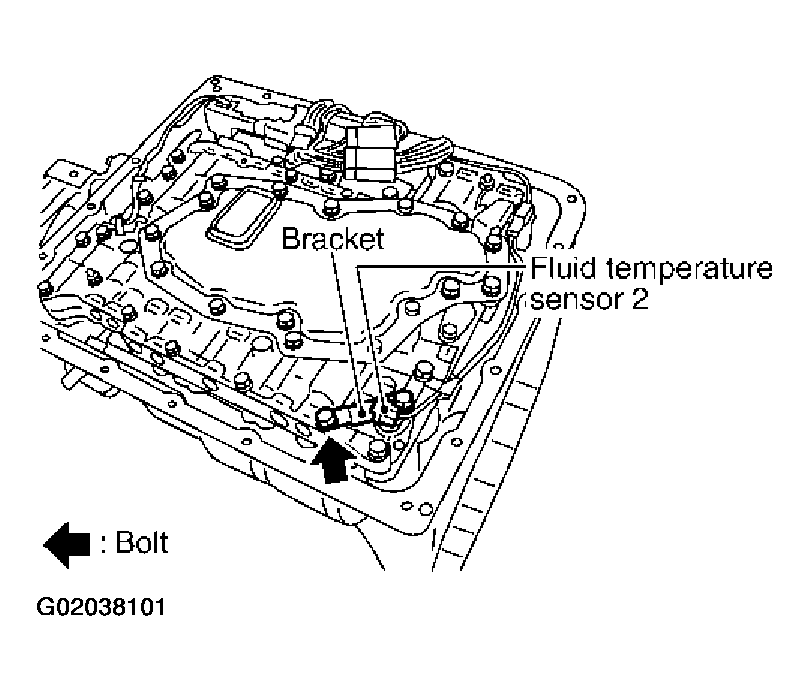

Install fluid temperature sensor 2 in control valve assembly. (With bracket.)
1. : 6.9 - 8.8 N.m (0.71 - 0.89 kg-m, 61 - 77 in-lb)
Fig 2: Installing On-Vehicle Service Control Valve Assembly (2 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

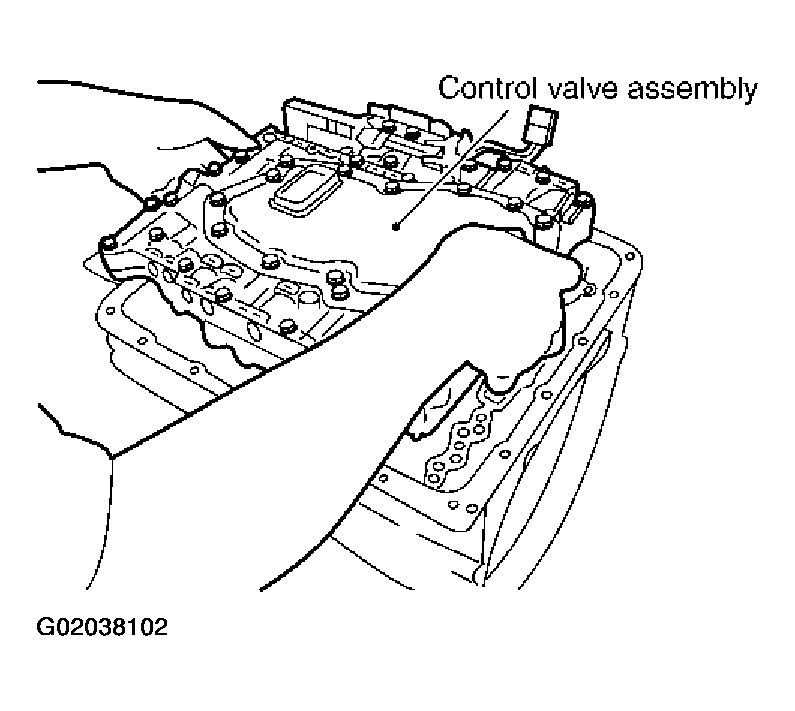

Install control valve assembly.
1. Install control valve assembly in transmission case.

  Fig 3: Installing On-Vehicle Service Control Valve Assembly (3 Of 13)
  Courtesy of NISSAN MOTOR CO., U.S.A.
  CAUTION:
  - Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve assembly.
  - Make sure that turbine sensor securely installs turbine sensor hole.

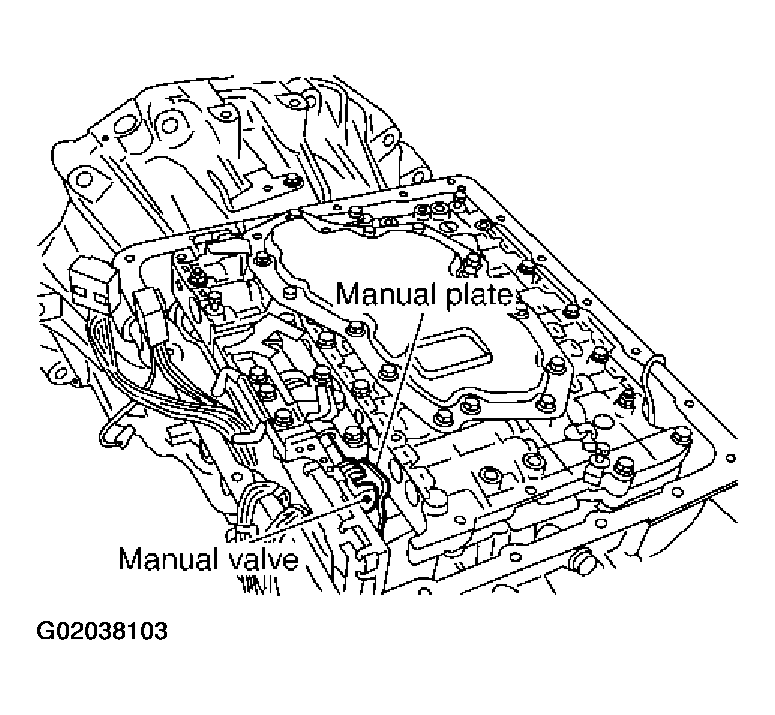

  - Assemble it so that manual valve cutout is engaged with manual plate projection.
  Fig 4: Installing On-Vehicle Service Control Valve Assembly (4 Of 13)
  Courtesy of NISSAN MOTOR CO., U.S.A.

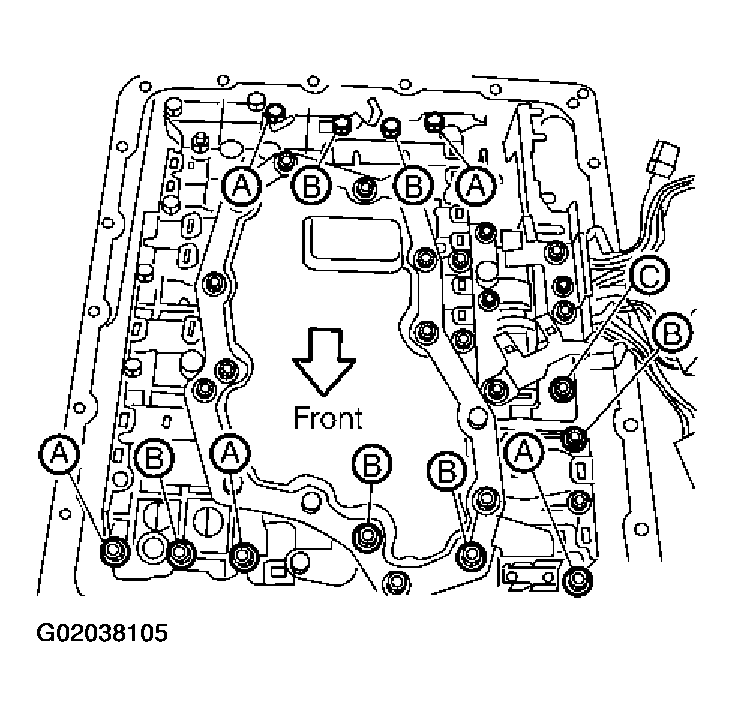

Install bolts A, B and C in control valve assembly.

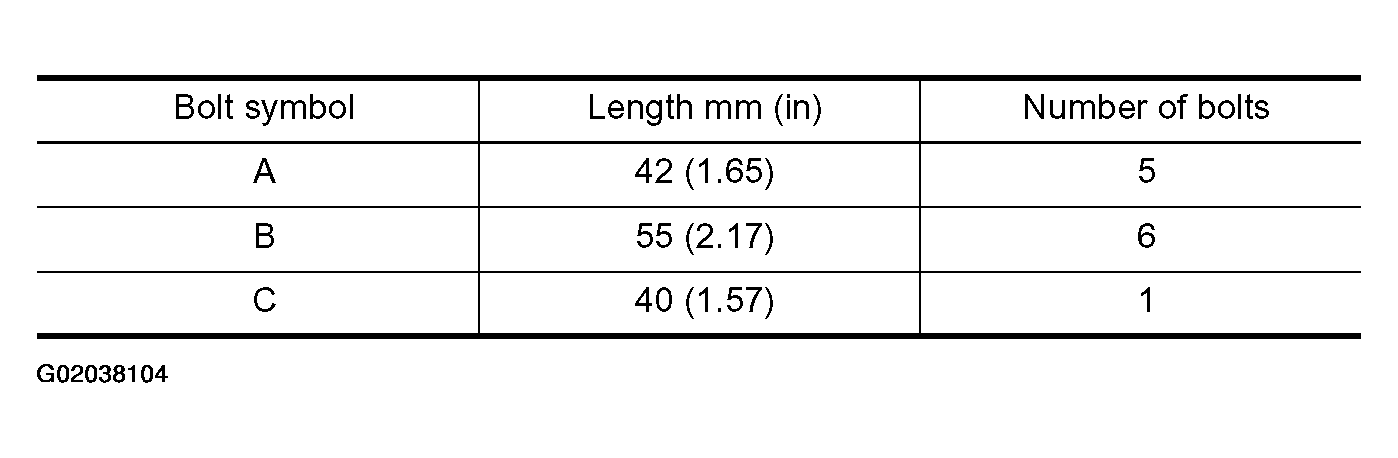

Fig 5: Installing Bolts A, B And C In Control Valve Assembly Table
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Installing On-Vehicle Service Control Valve Assembly (5 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

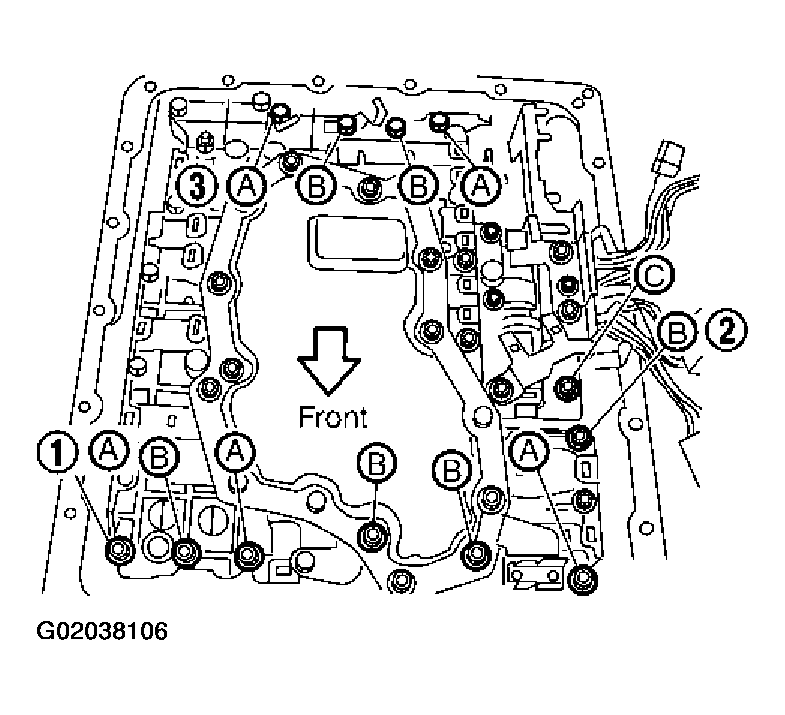

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
1. : 6.9 - 8.8 N.m (0.71 - 0.89 kg-m, 61 - 77 in-lb)
Fig 7: Installing On-Vehicle Service Control Valve Assembly (6 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

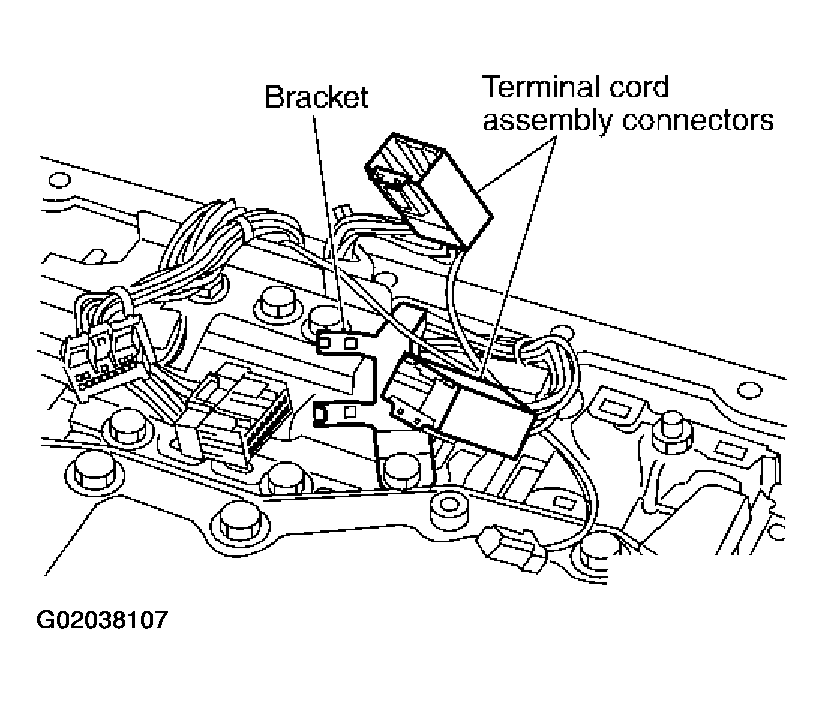

Install terminal cord assembly connectors in bracket.

Fig 8: Installing On-Vehicle Service Control Valve Assembly (7 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

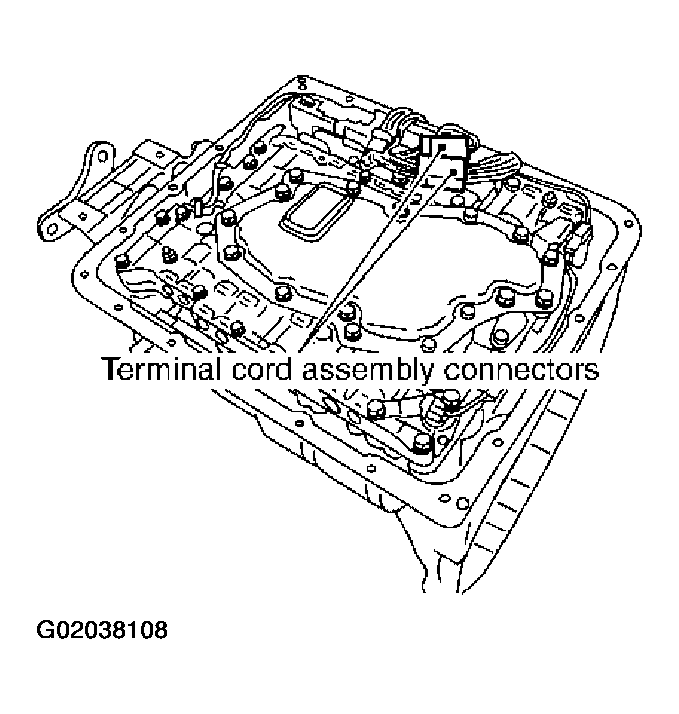

Connect terminal cord assembly connectors.

Fig 9: Installing On-Vehicle Service Control Valve Assembly (8 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect fluid temperature sensor 2 connector.

Fig 10: Installing On-Vehicle Service Control Valve Assembly (9 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

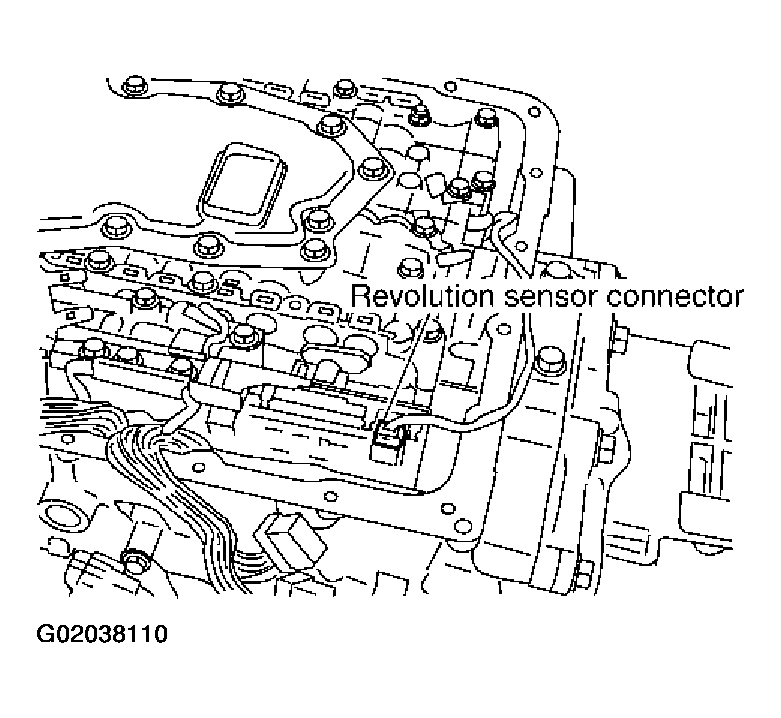

Connect revolution sensor connector.

Fig 11: Installing On-Vehicle Service Control Valve Assembly (10 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.

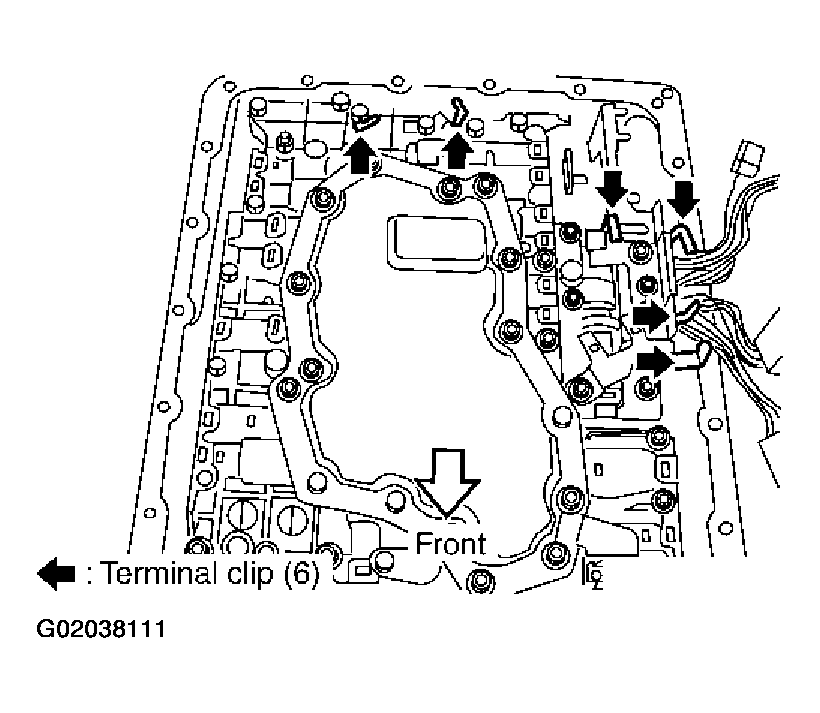

Securely fasten terminal harness with clip.

Fig 12: Installing On-Vehicle Service Control Valve Assembly (11 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan in transmission case.
1. Install oil pan gasket in transmission case.
  CAUTION:
  - Do not reuse oil pan gasket.
  - Install it in the direction to align hole positions.
2. Install oil pan in transmission case.
  CAUTION:
  - Install it so that drain plug comes to the position as shown in the figure.
  - Be careful not to pinch harnesses.
  Fig 13: Installing On-Vehicle Service Control Valve Assembly (12 Of 13)
  Courtesy of NISSAN MOTOR CO., U.S.A.

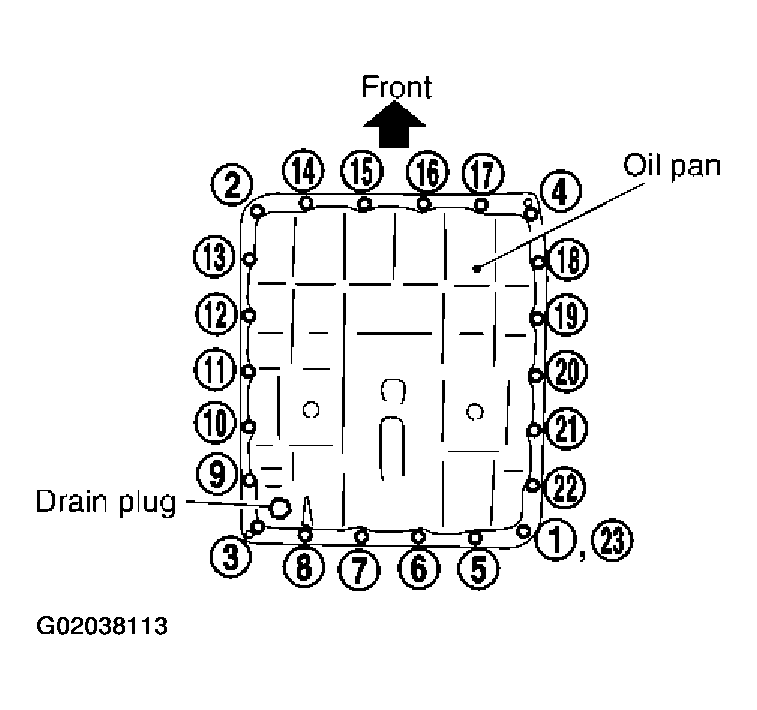

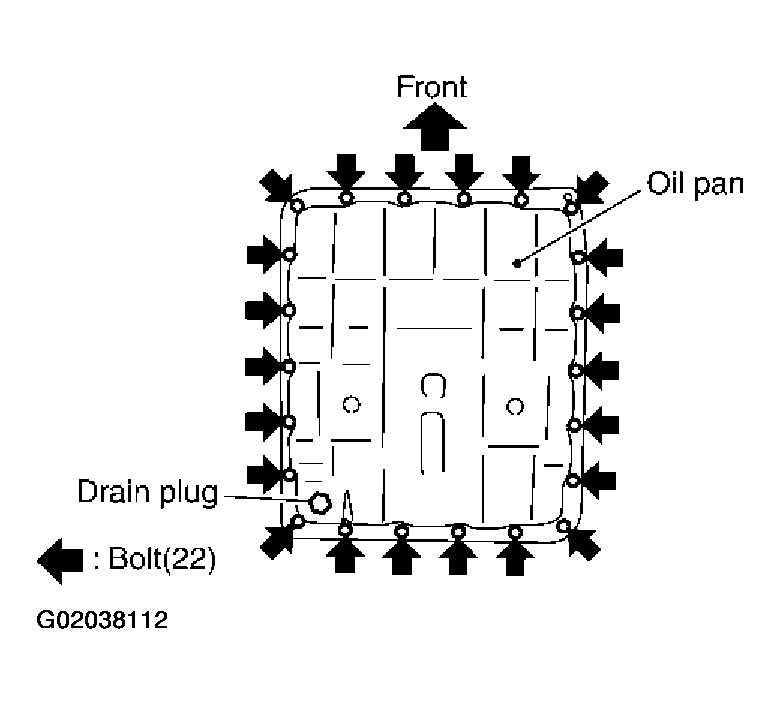

3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
  CAUTION:
  Do not reuse oil pan mounting bolts.
  1. : 6.9 - 8.8 N.m (0.71 - 0.89 kg-m, 61 - 77 in-lb)
Install drain plug in oil pan.
CAUTION:
Do not reuse drain plug gasket.
1. : 29 - 39 N.m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)
Fig 14: Installing On-Vehicle Service Control Valve Assembly (13 Of 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Pour ATF into transmission assembly.
Connect heated oxygen sensor 2 harness connector.
Connect the negative battery terminal
