A/T Interlock Coupling Pattern Table: Notes

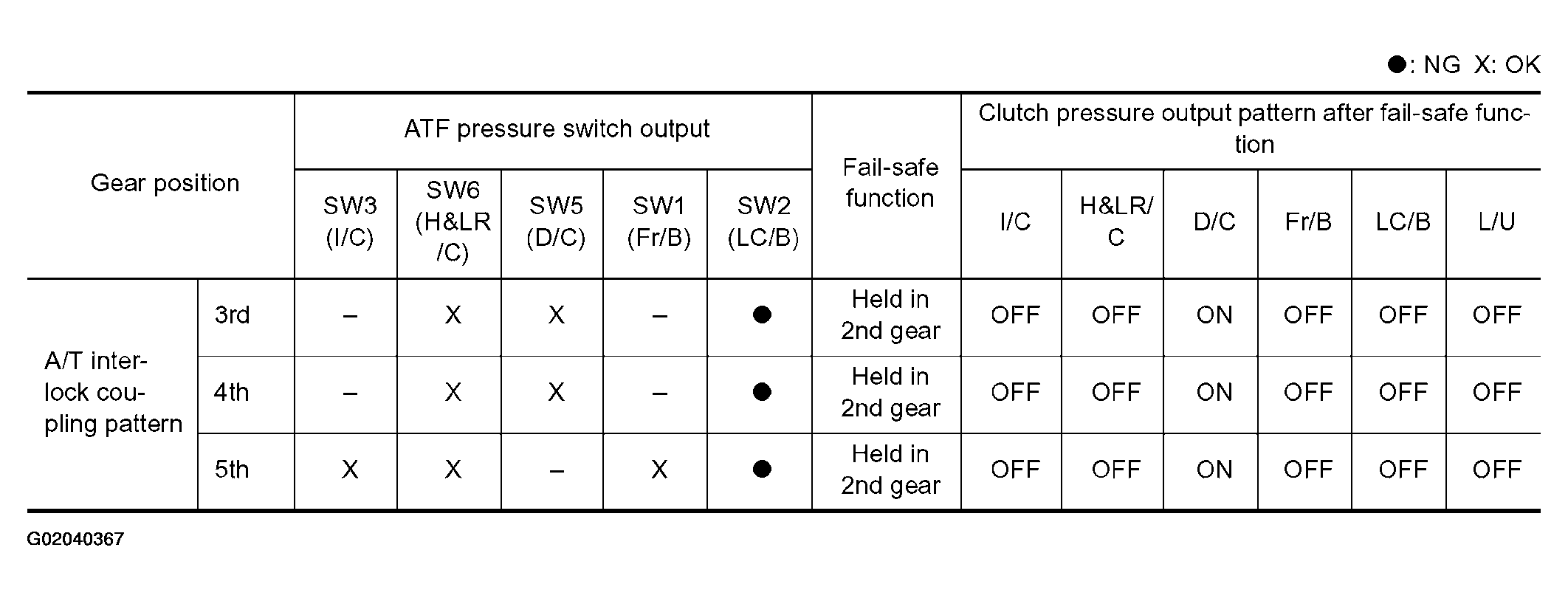

Fig 1: Automatic Transmission Interlock Coupling Pattern
G02040367Courtesy of NISSAN MOTOR CO., U.S.A.
