Engine Compartment Harness

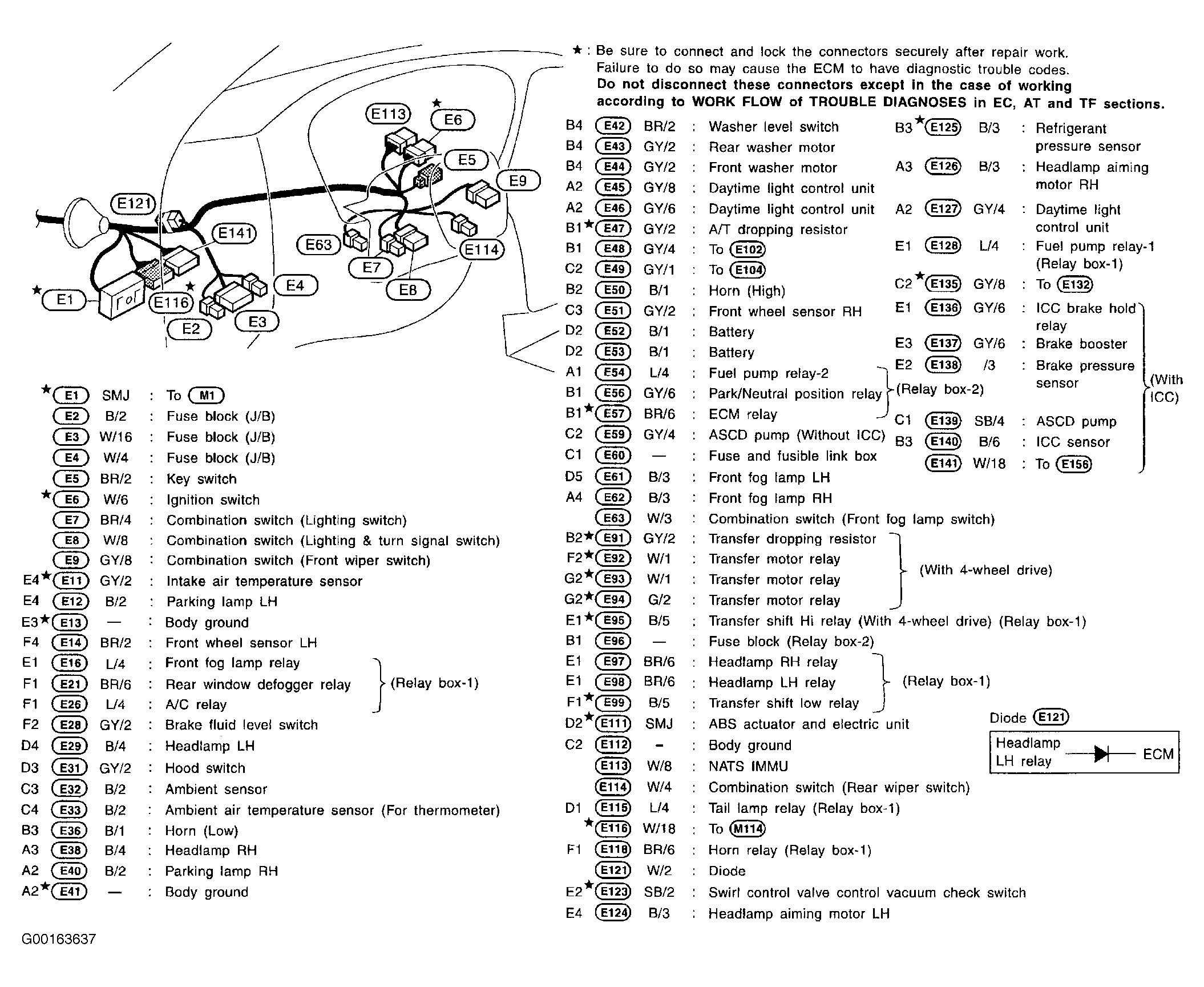

Fig 1: Identifying Underhood Fuse & Relay Boxes Components
Courtesy of NISSAN MOTOR CO., U.S.A.

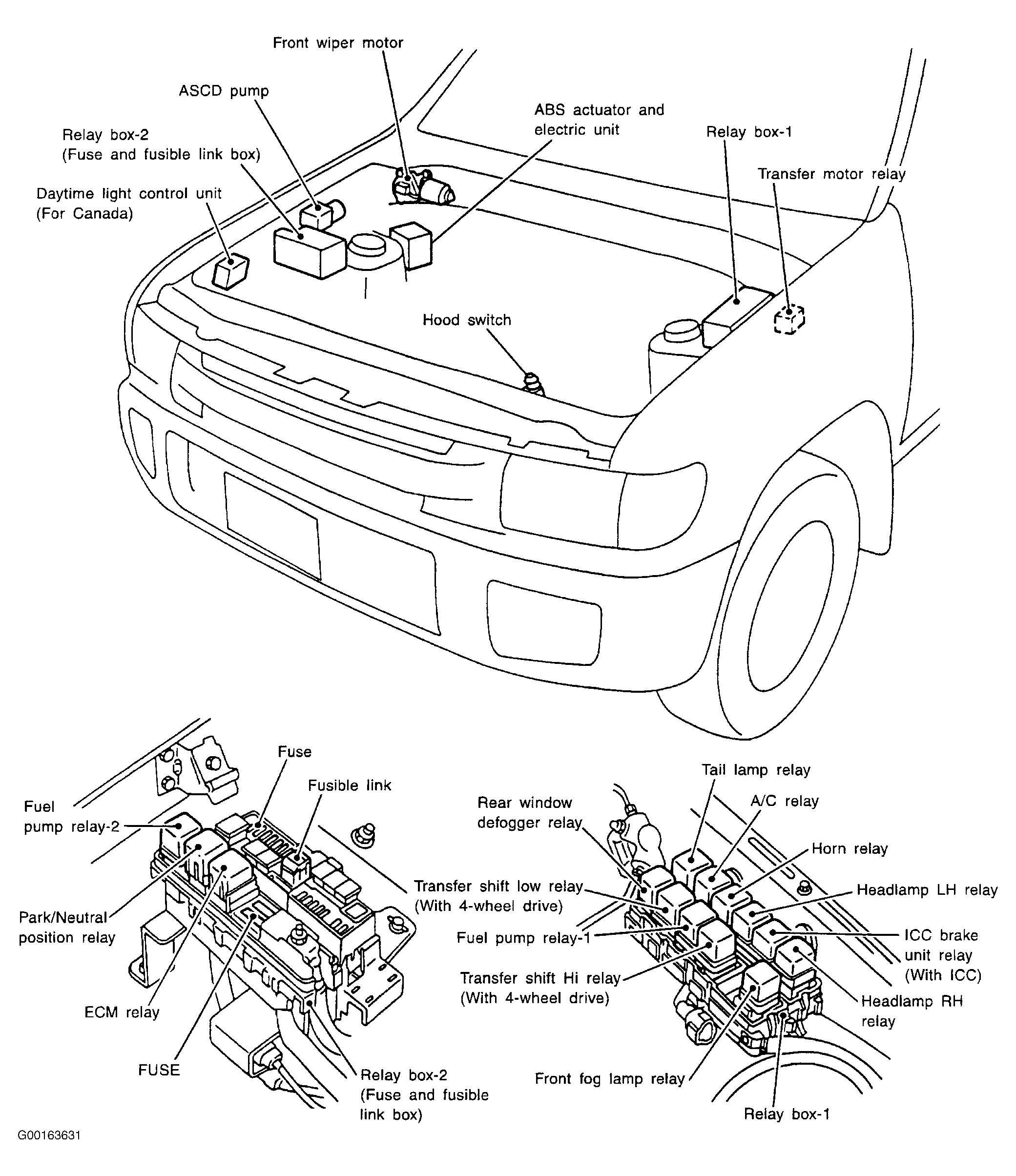

Fig 2: Identifying Engine Room Harness Routing (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

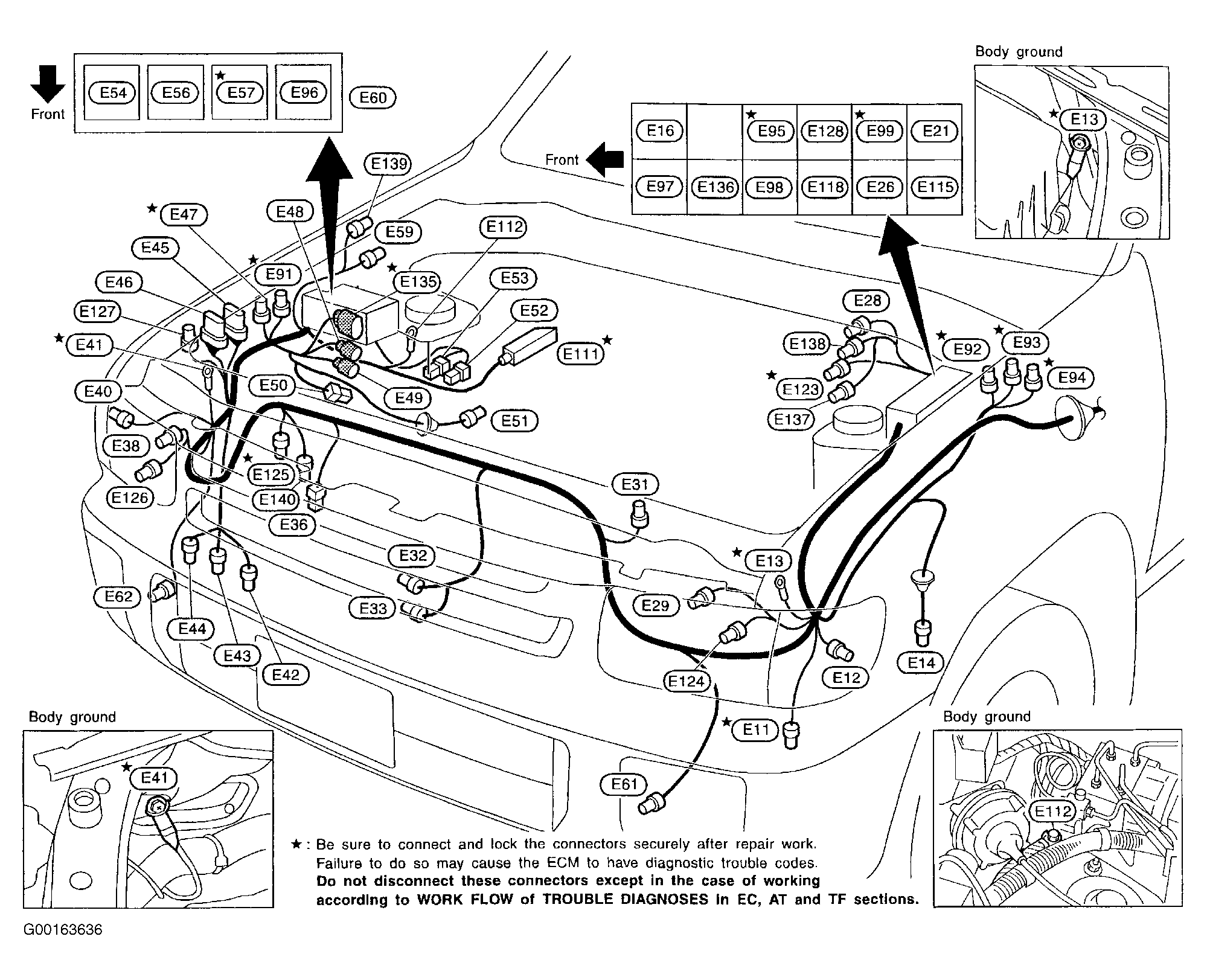

Fig 3: Identifying Engine Room Harness Routing (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
