Engine Performance Harness Connectors

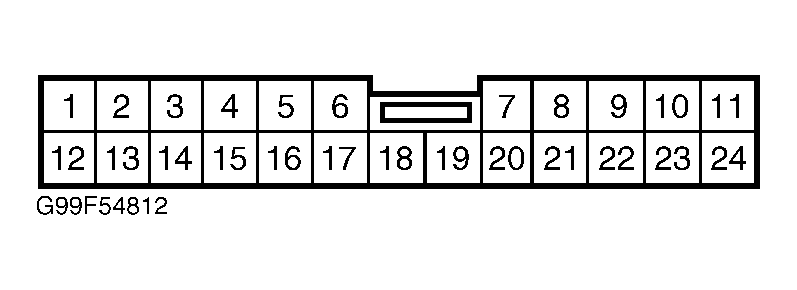

Fig 1: Identifying In-Line Harness Connector M32/F23 Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

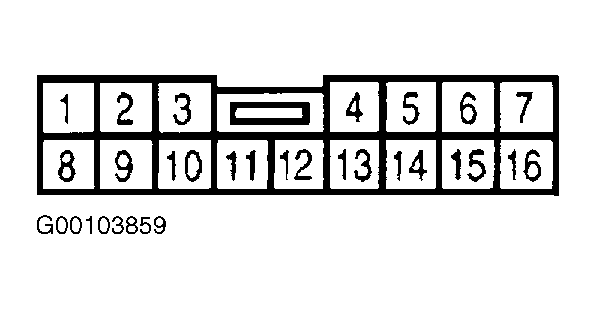

Fig 2: Identifying In-Line Harness Connector F22/M33 Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying In-Line Harness Connector E132/E135 Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

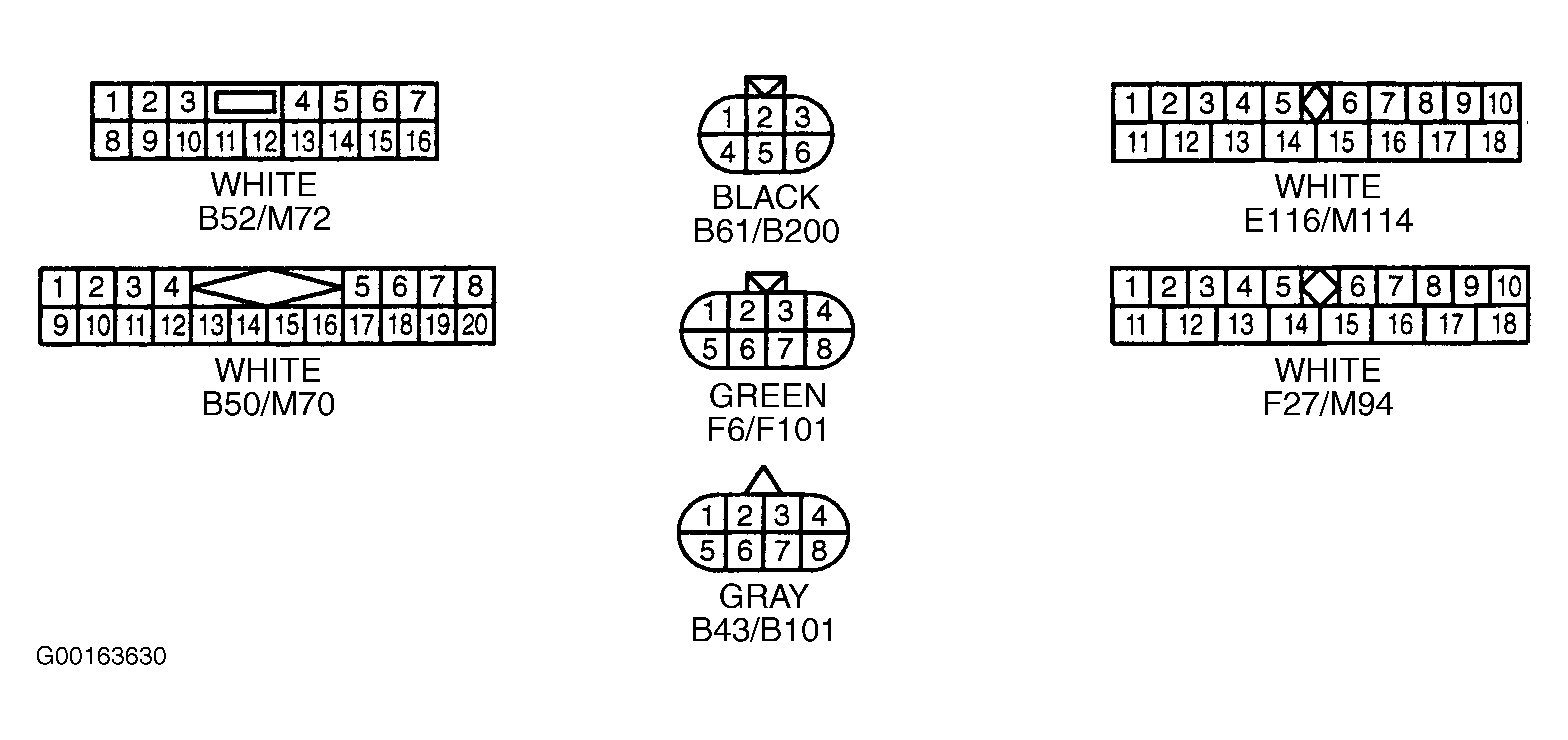

Fig 4: Identifying Various Engine Performance In-Line Harness Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.

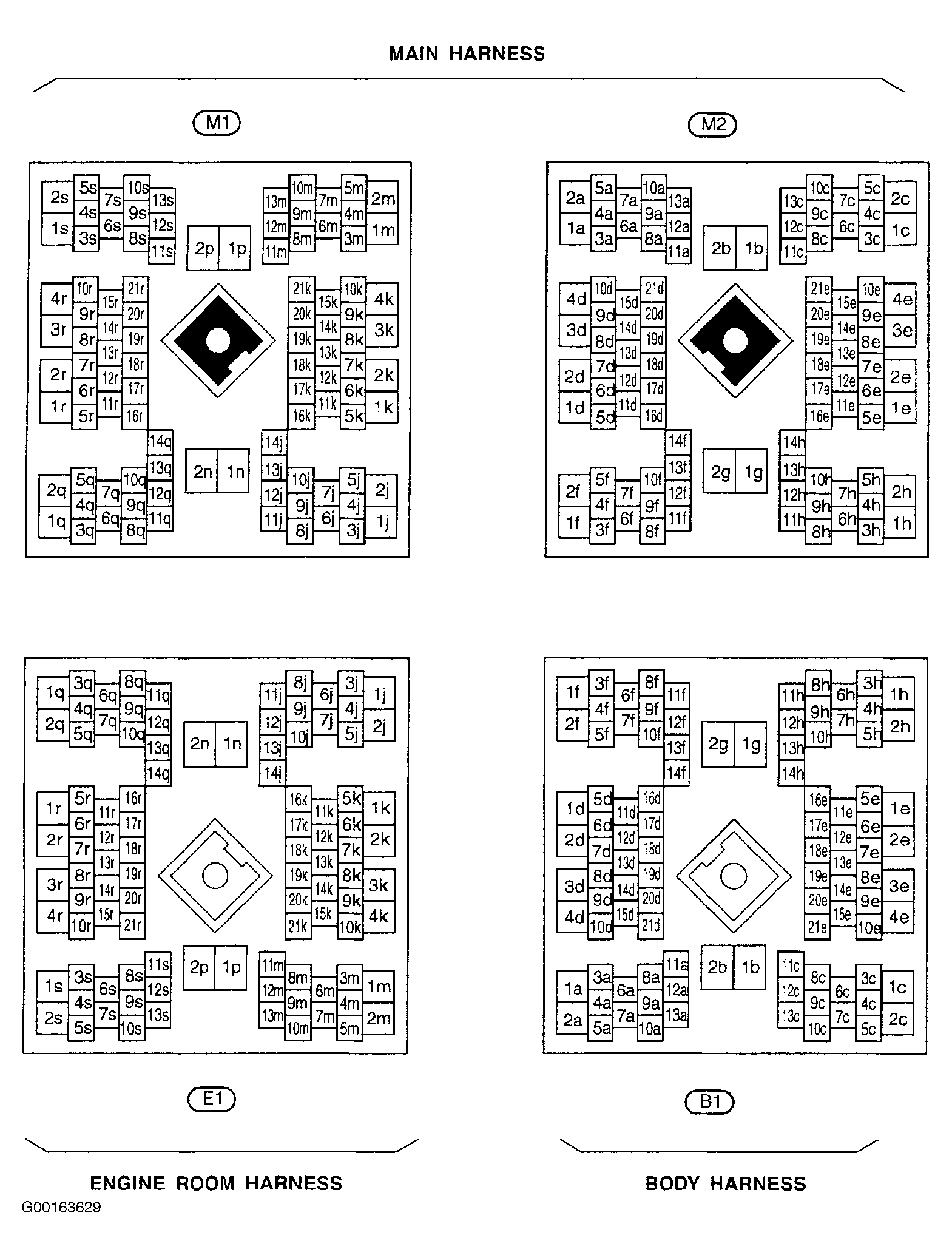

Fig 5: Identifying Main Super Multiple Junction Harness Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
