Data Monitor Mode

For DATA MONITOR mode descriptions, see Fig 1-Fig 4 .

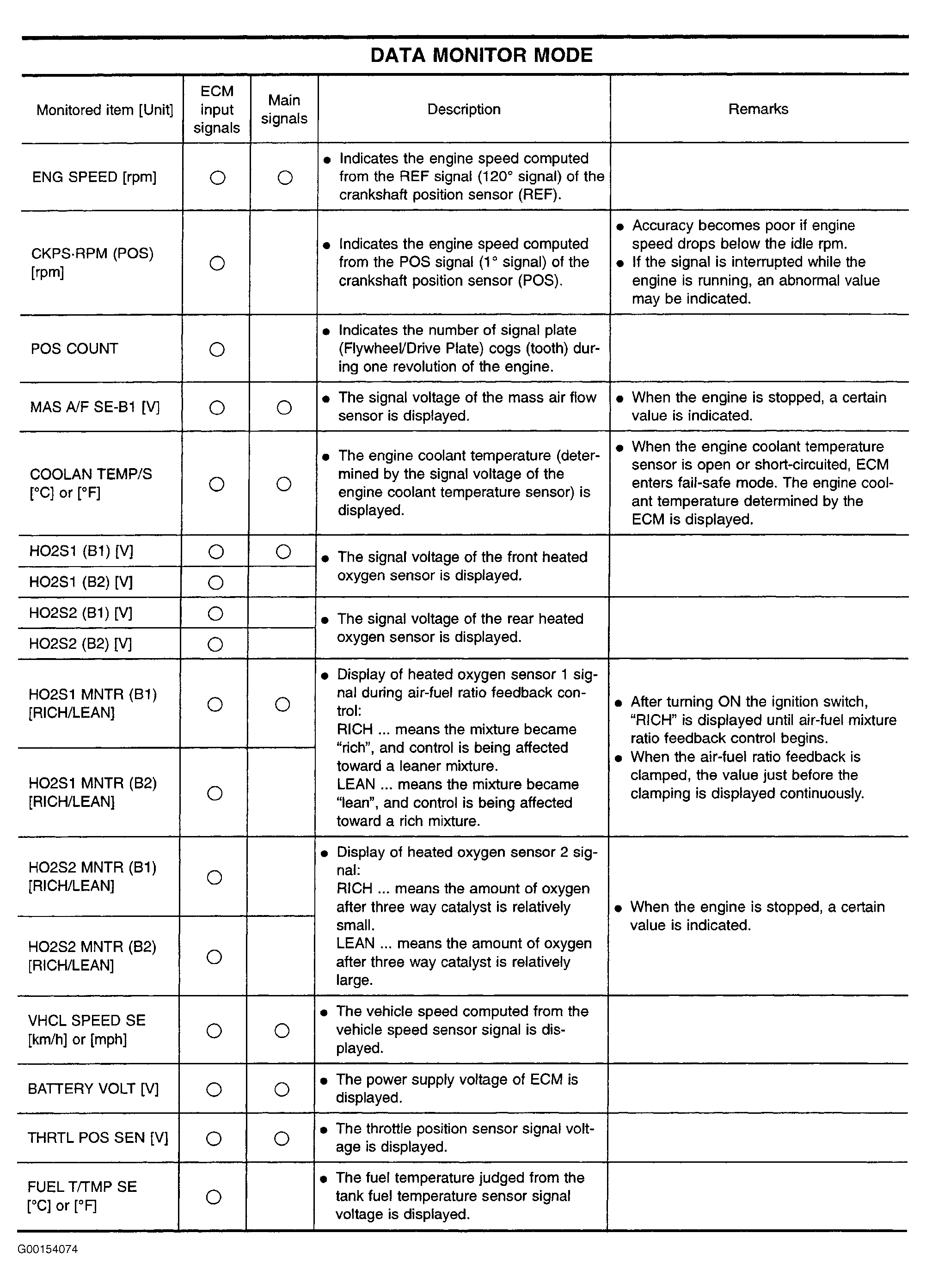

Fig 1: Data Monitor Mode Descriptions (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

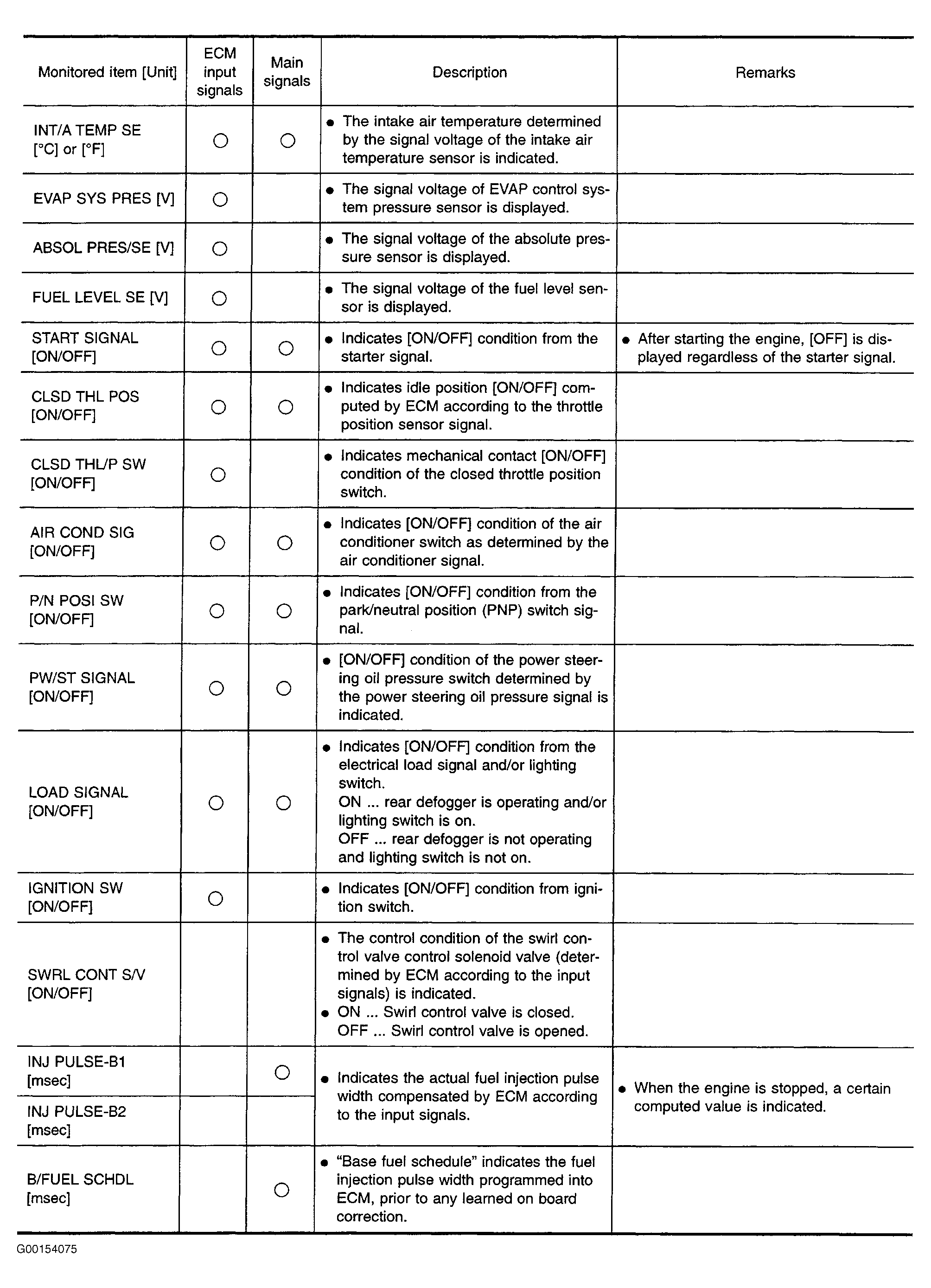

Fig 2: Data Monitor Mode Descriptions (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Data Monitor Mode Descriptions (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

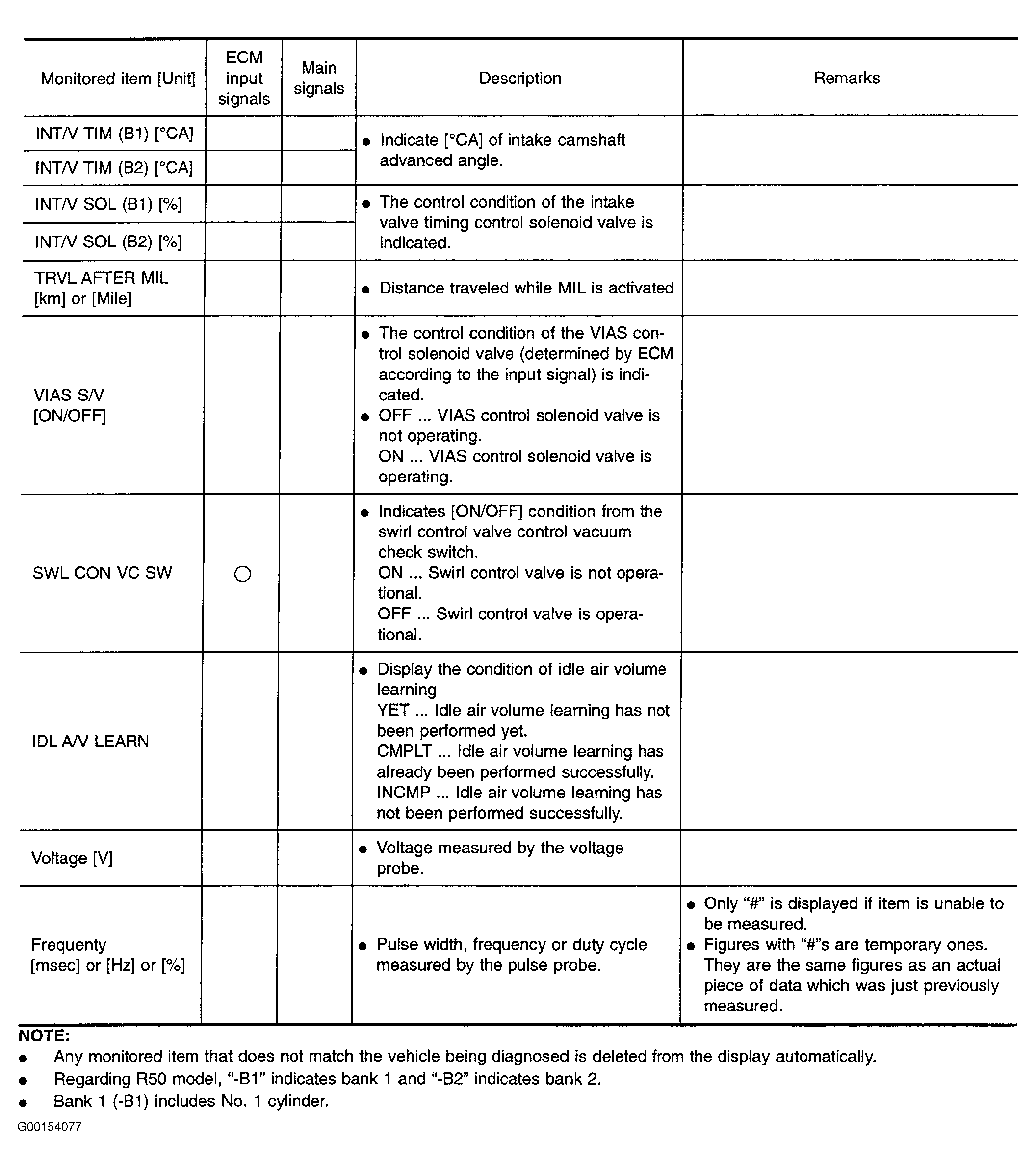

Fig 4: Data Monitor Mode Descriptions (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
