Data Monitor Mode Reference Values

Reference values are normal values for components monitored by scan tool. For scan tool reference values, see Fig 1-Fig 3 .

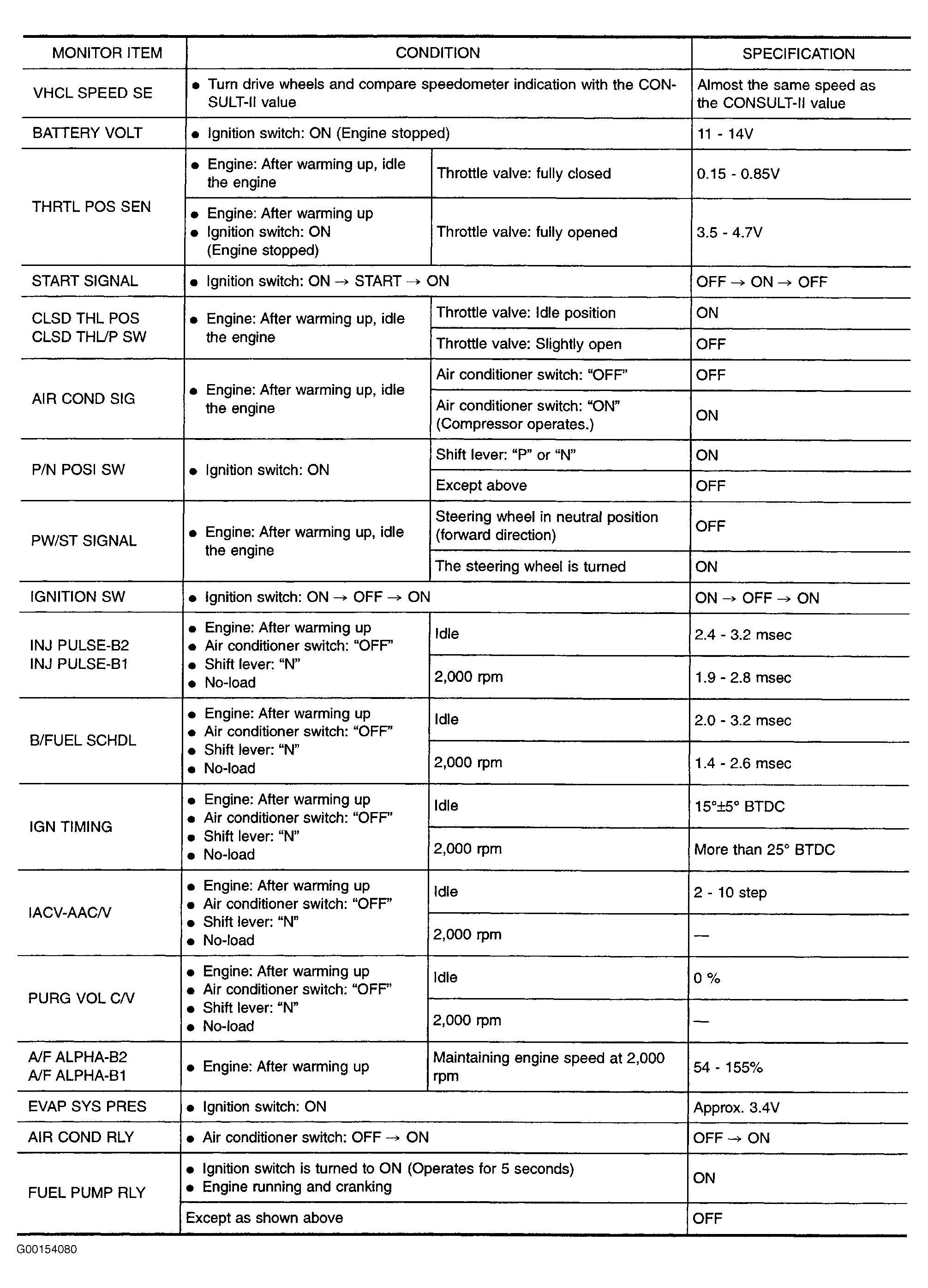

Fig 1: Data Monitor Mode Reference Values (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

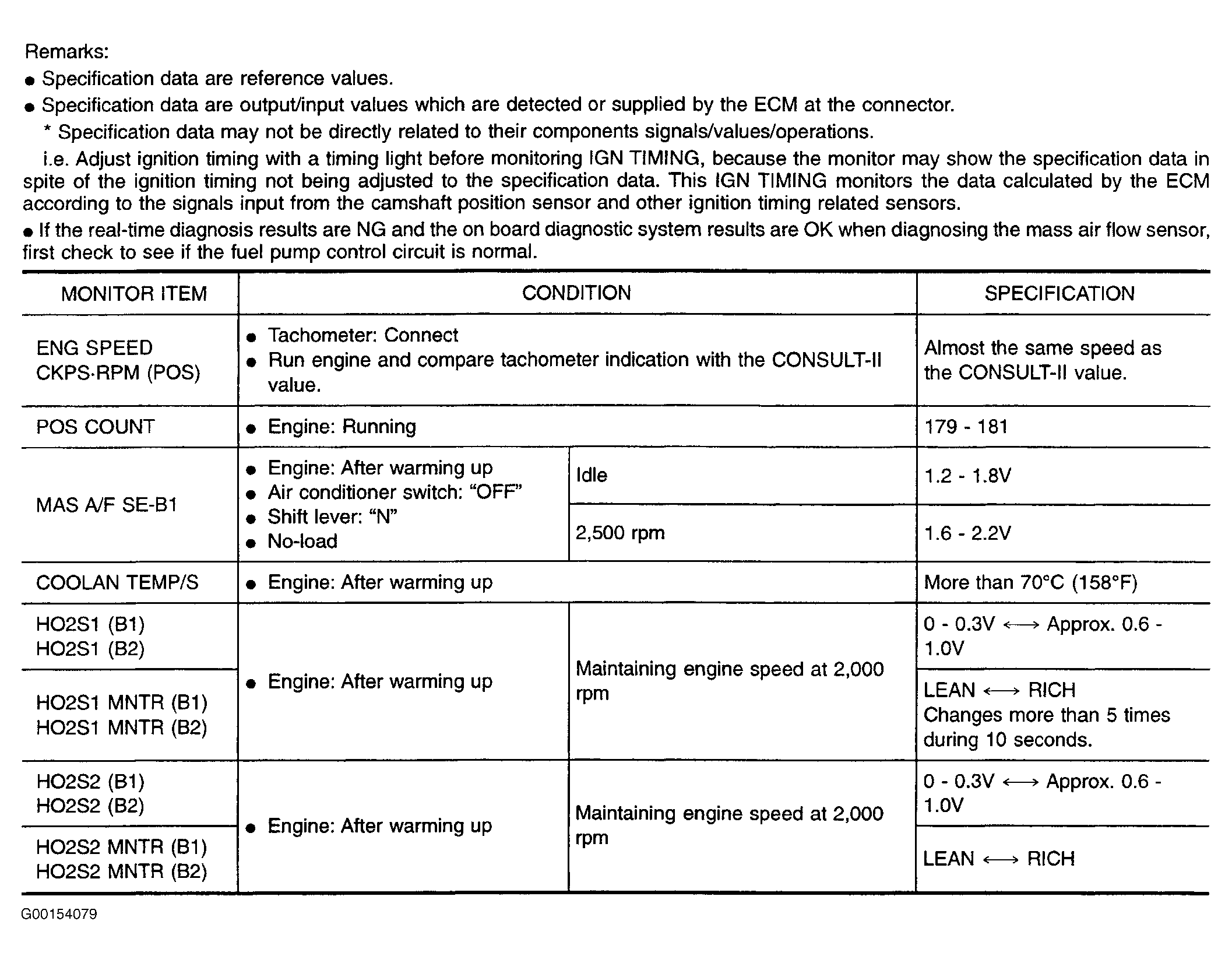

Fig 2: Data Monitor Mode Reference Values (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

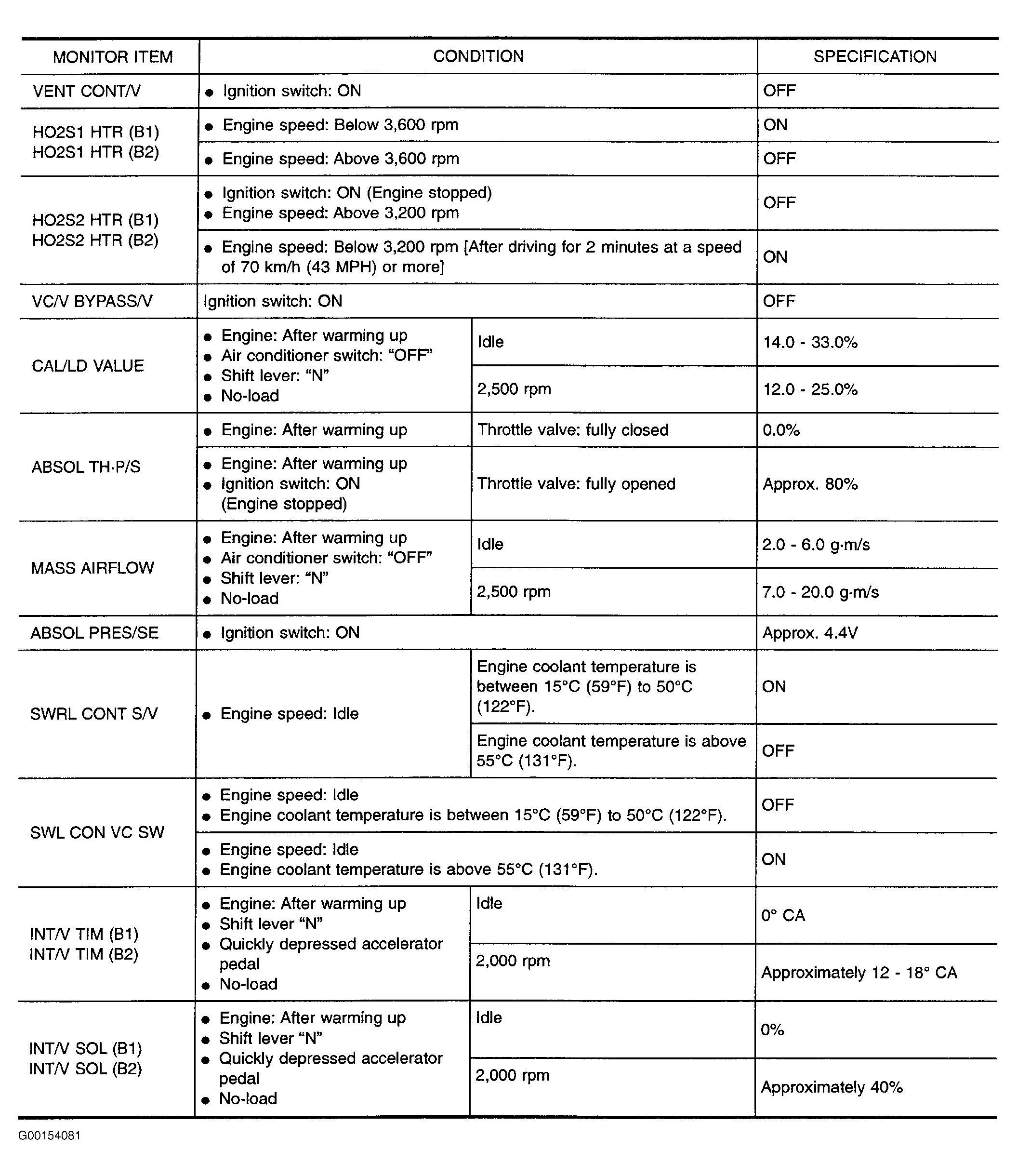

Fig 3: Data Monitor Mode Reference Values (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
