Data Monitor

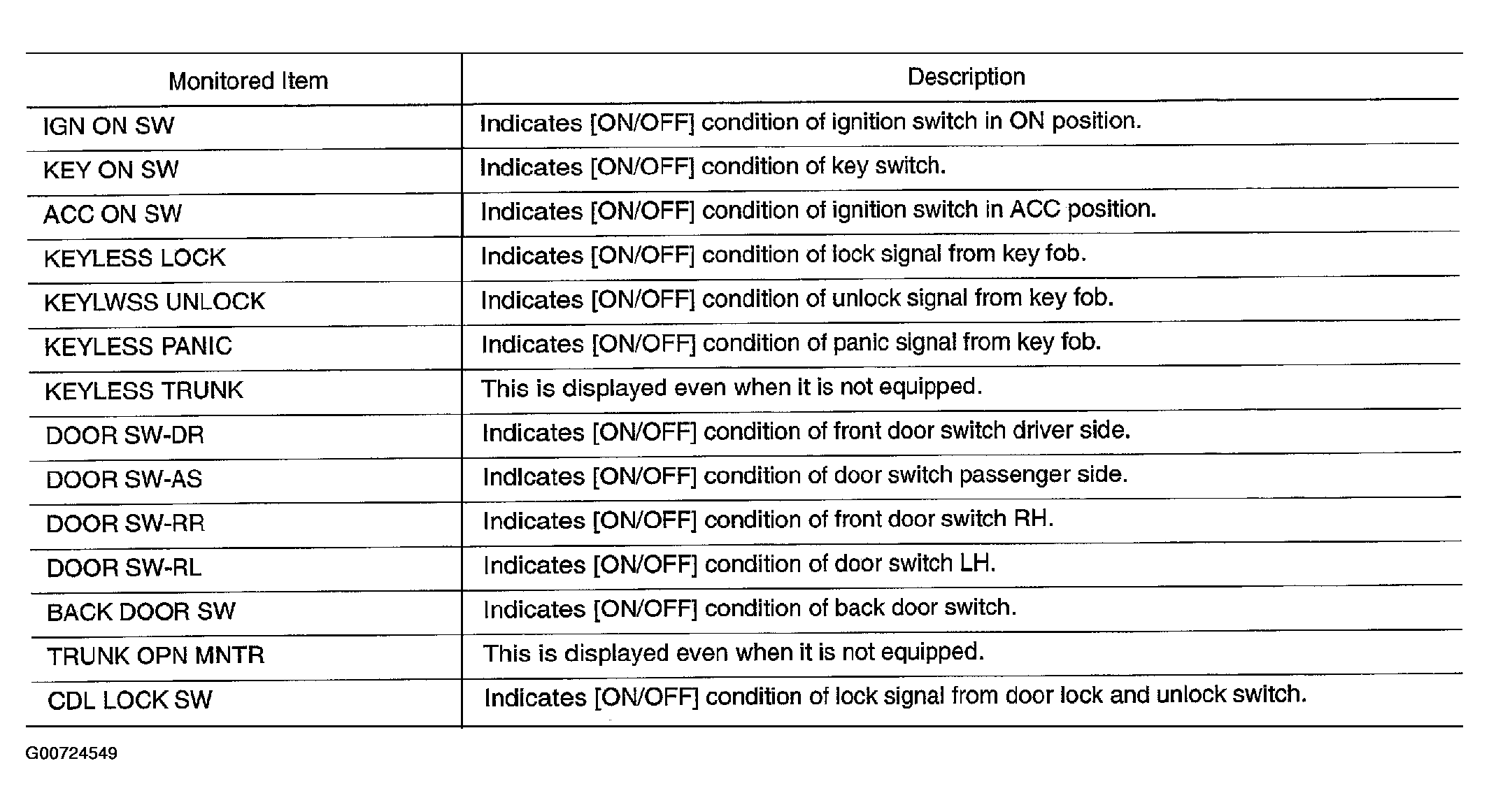

Fig 1: CONSULT-II Application Items Description Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

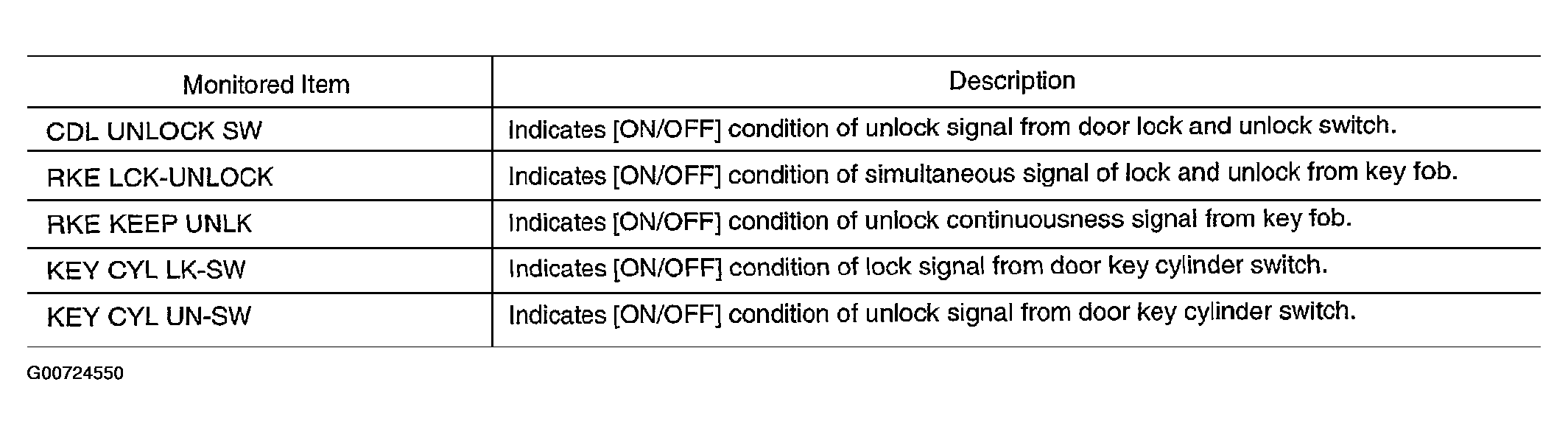

Fig 2: CONSULT-II Application Items Description Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
