Fuel Pressure Release

With CONSULT-II

1. Turn ignition switch ON.
2. Perform FUEL PRESSURE RELEASE in WORK SUPPORT mode with CONSULT-II.

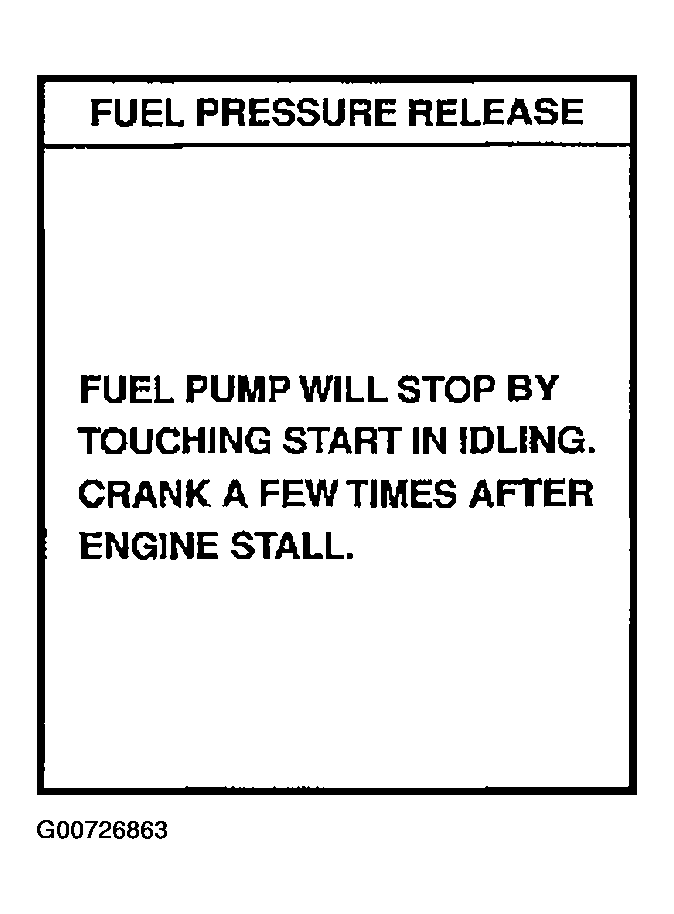

   Fig 1: Using CONSULT-II To Release Fuel Pressure

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.

Without CONSULT-II

1. Remove fuel pump fuse located in IPDM E/R.

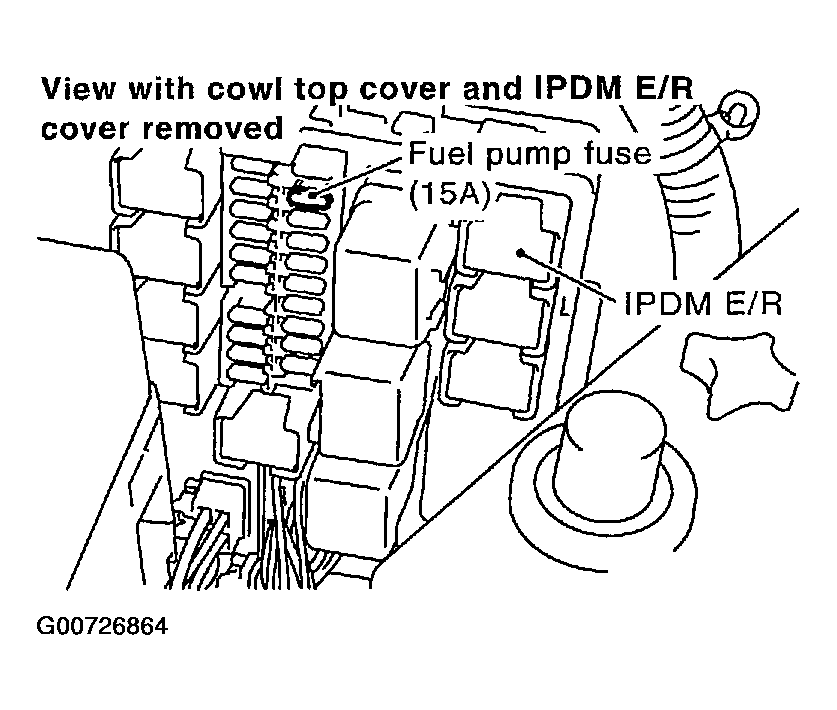

   Fig 2: Locating Fuel Pump Fuse

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.
