Method A

  1. Attach timing light to loop wire as shown in Fig 1.

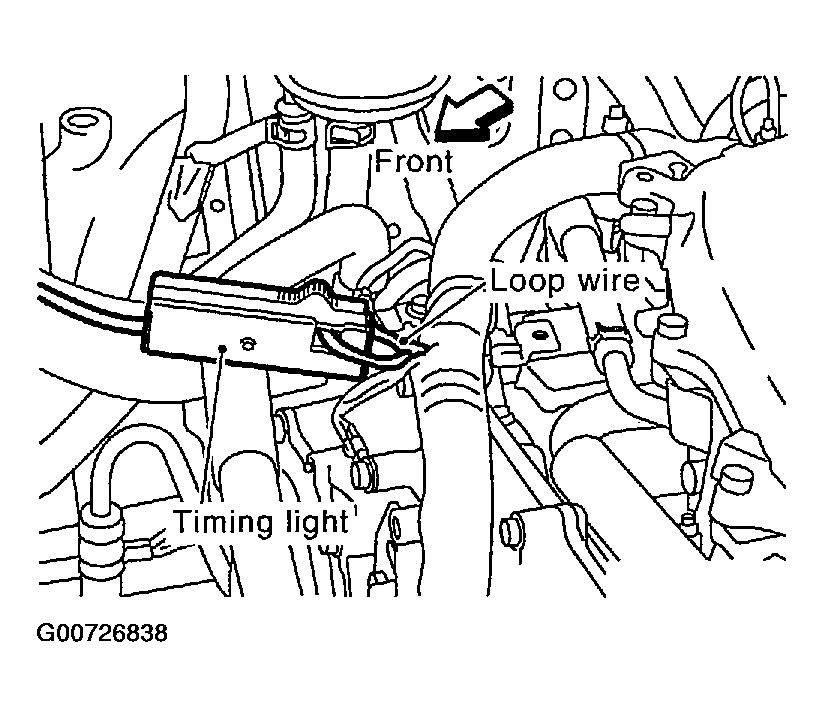

    Fig 1: Attaching Timing Light
    G00726838Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

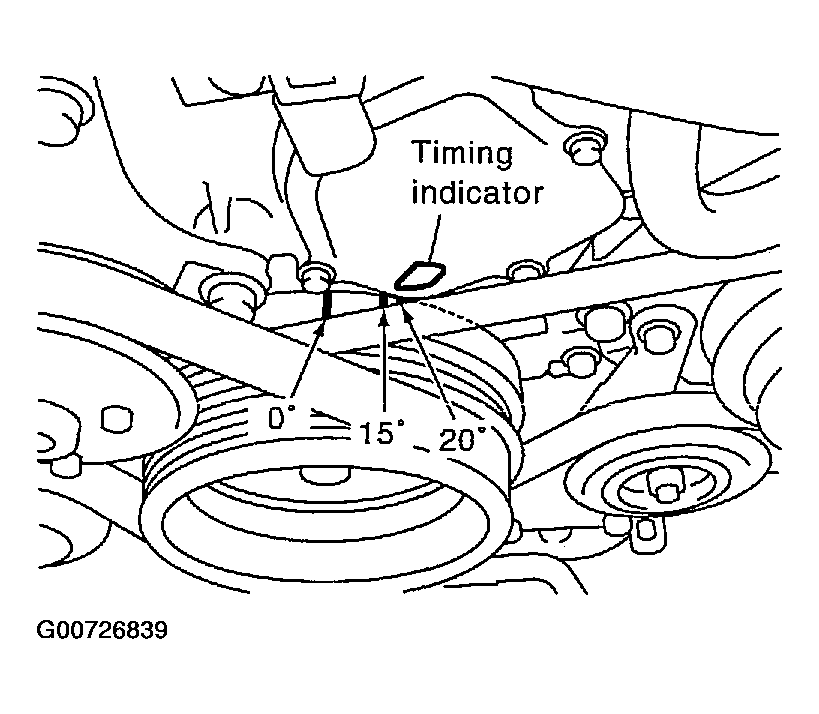

    Fig 2: Locating Timing Indicator
    G00726839Courtesy of NISSAN MOTOR CO., U.S.A.
