Overall Inspection Sequence: Notes

NOTE: If a vehicle contains a part which is operating outside of design specifications with no MIL illumination, the part shall not be replaced prior to emission testing unless it is determined that the part has been tampered with or abused in such a way that the diagnostic system cannot reasonably be expected to detect the resulting malfunction.

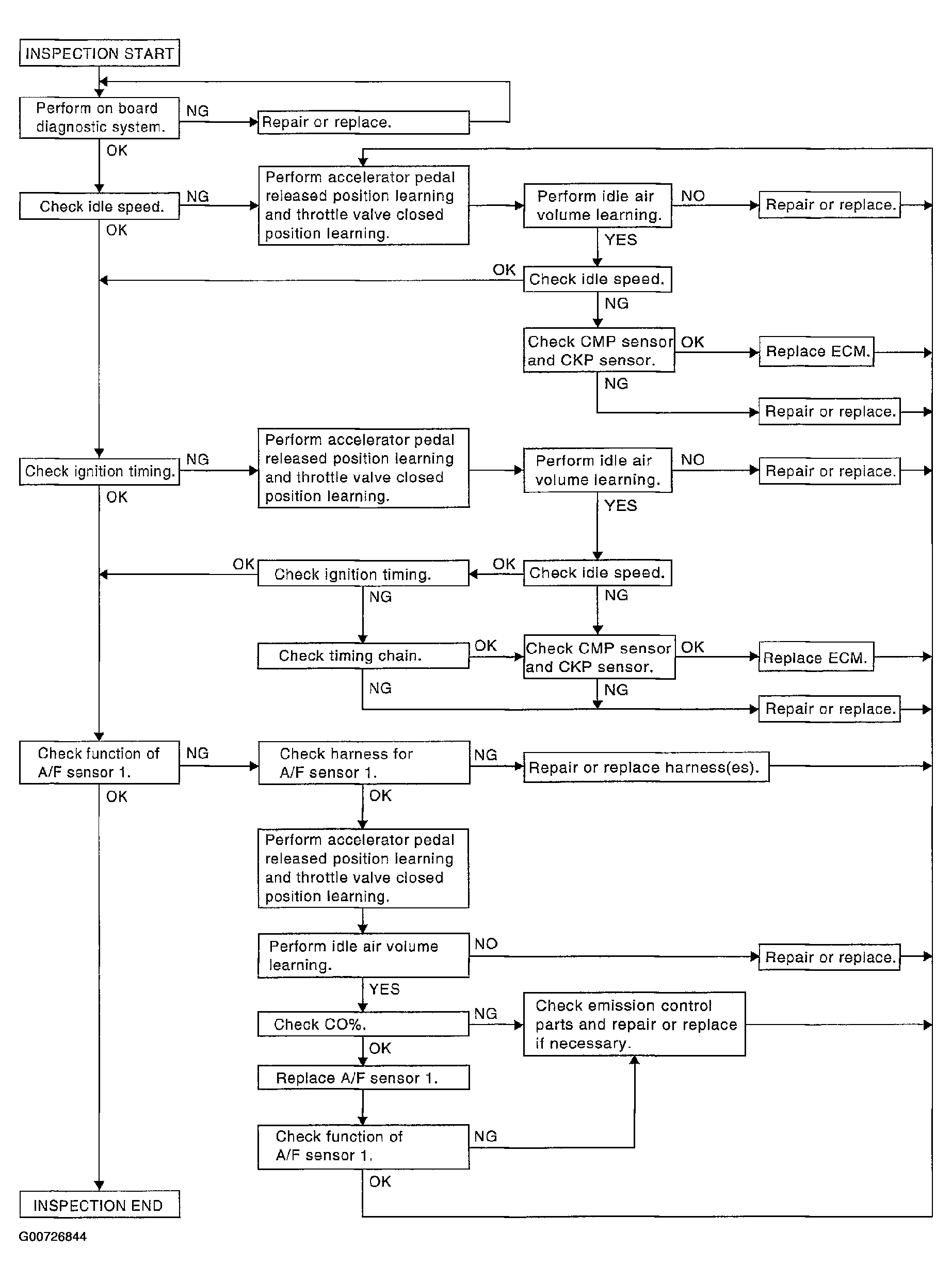

Fig 1: Performing Engine Control Inspection
G00726844Courtesy of NISSAN MOTOR CO., U.S.A.
