Inspection Procedure: Notes

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the hood opener handle.

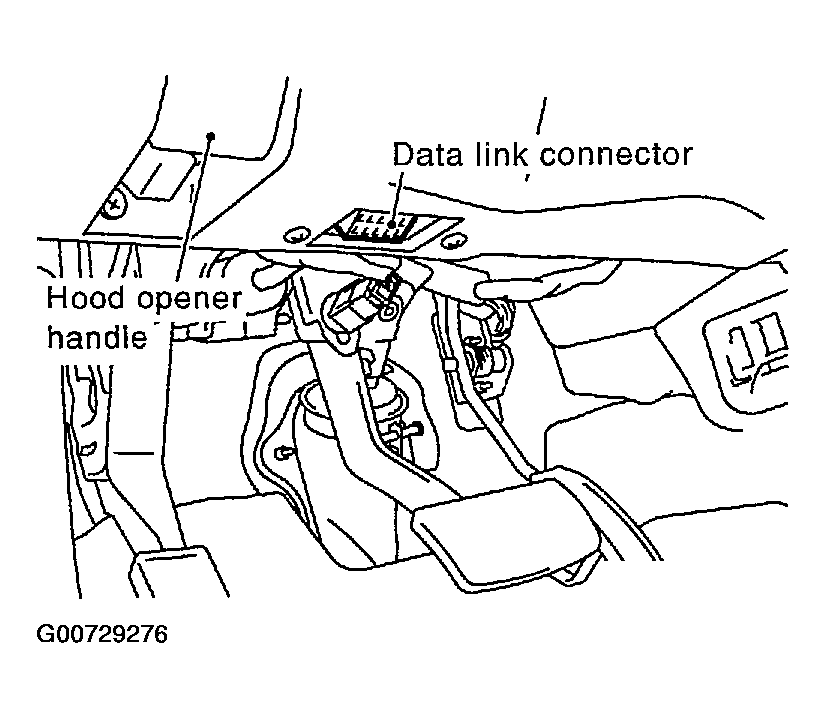

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

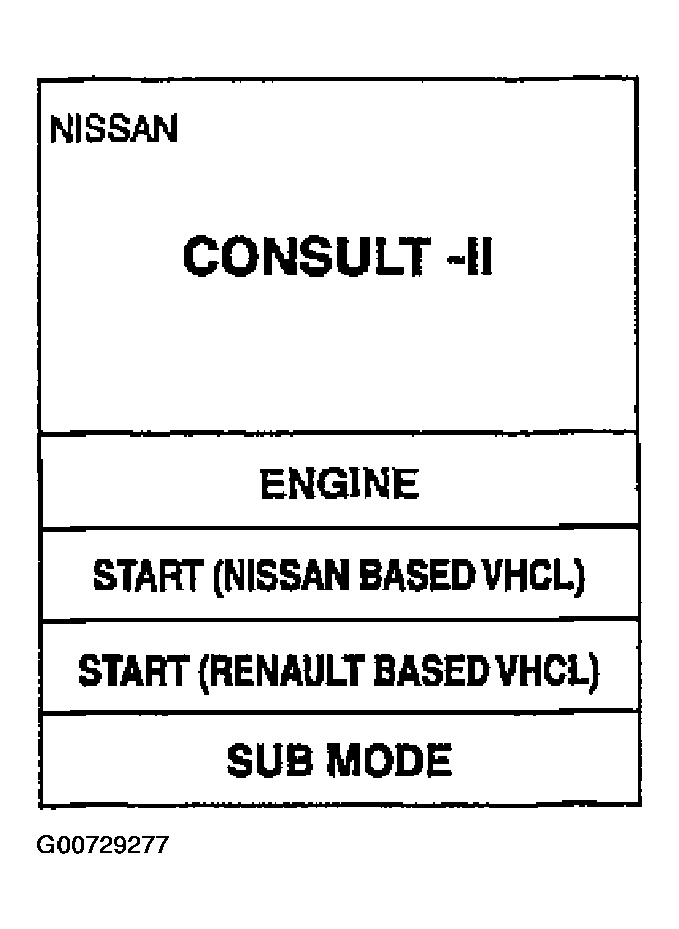

Fig 2: Displaying CONSULT-II Main Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch ENGINE.
If ENGINE is not indicated, Go to , CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

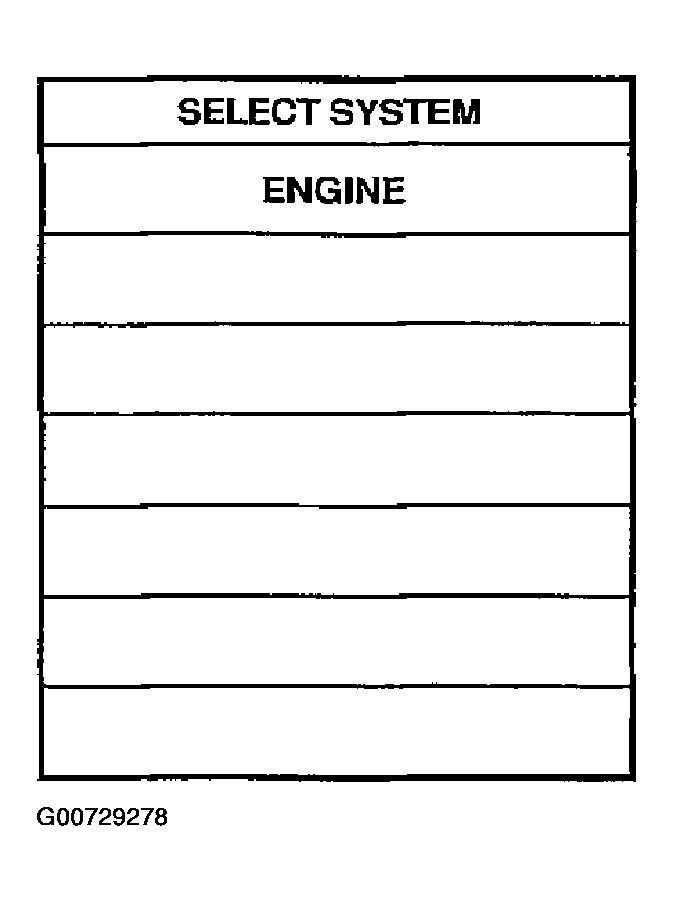

Fig 3: Displaying Engine As Selected From CONSULT-II Main Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.

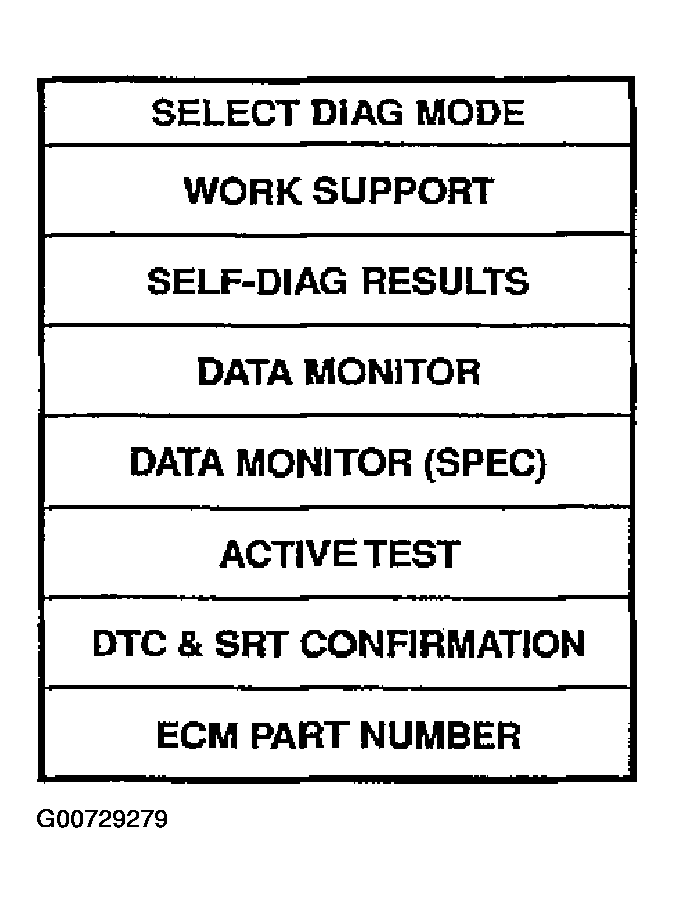

Fig 4: Displaying Diagnostic Test Modes Supported By CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

For further information, see the CONSULT-II Operation Manual .
