Intake Air Temperature Sensor

Check resistance between mass air flow sensor terminals 5 and 6 under the following conditions. See Fig 1 and Figure.

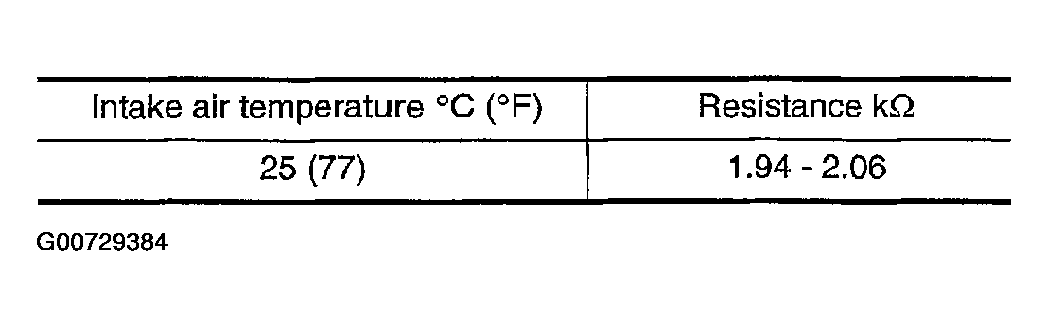

Fig 1: Intake Air Temperature Sensor Specifications (Low Ambient Temperature)
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor). See Figure.
