Engine Coolant Temperature Sensor

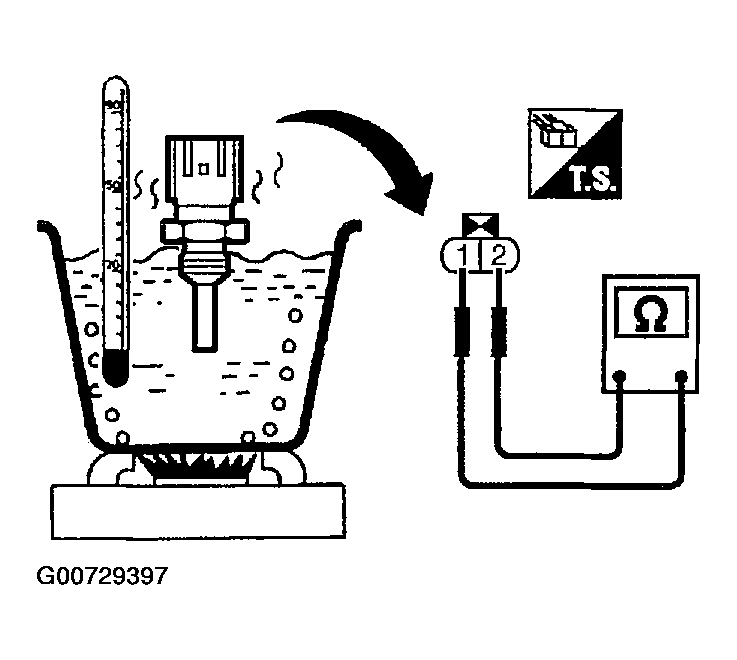

  1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure. See Figure.

    Reference data

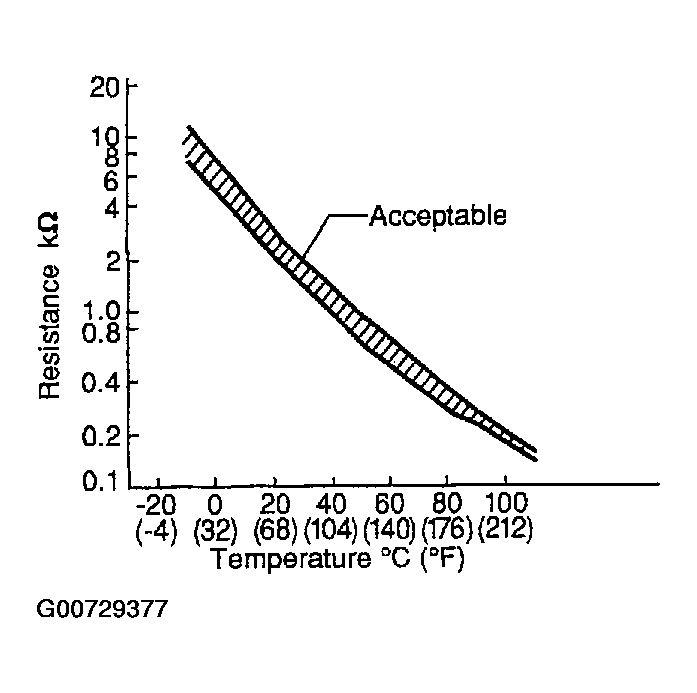

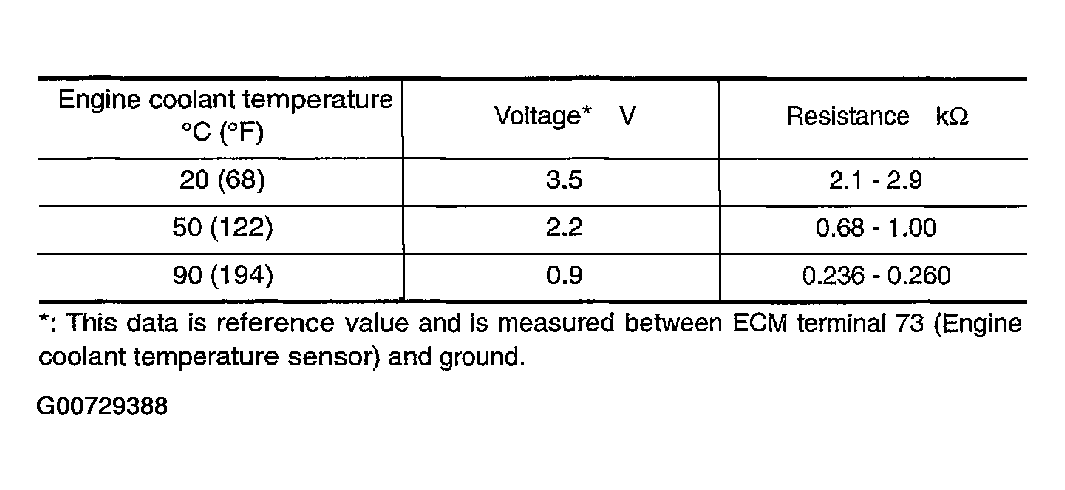

    For engine coolant temperature sensor specifications, see Figure and for graph of thermistor performance, see Figure.

  2. If NG, replace engine coolant temperature sensor.
