Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 5 and 6, see Figure, under the following conditions. See Fig 1.

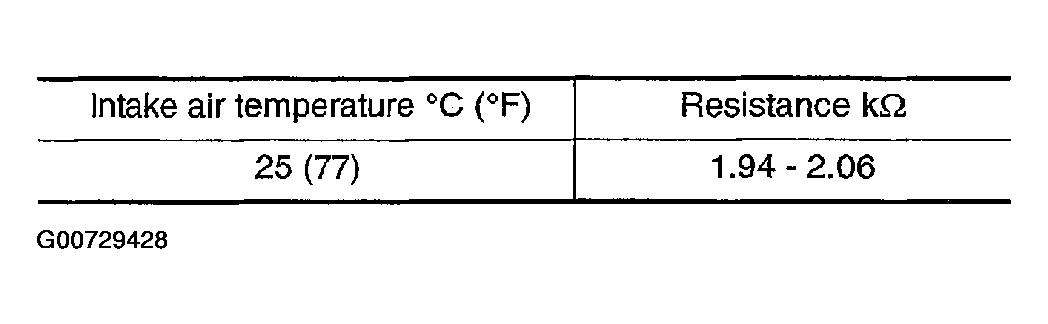

Fig 1: Intake Air Temperature Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor). See Figure.
