Fuel Tank Temperature Sensor

  1. Remove fuel level sensor unit.
  2. Check resistance between fuel level sensor unit and fuel pump terminals 4 and 5, see Fig 1, by heating with hot water or heat gun as shown in Fig 2.

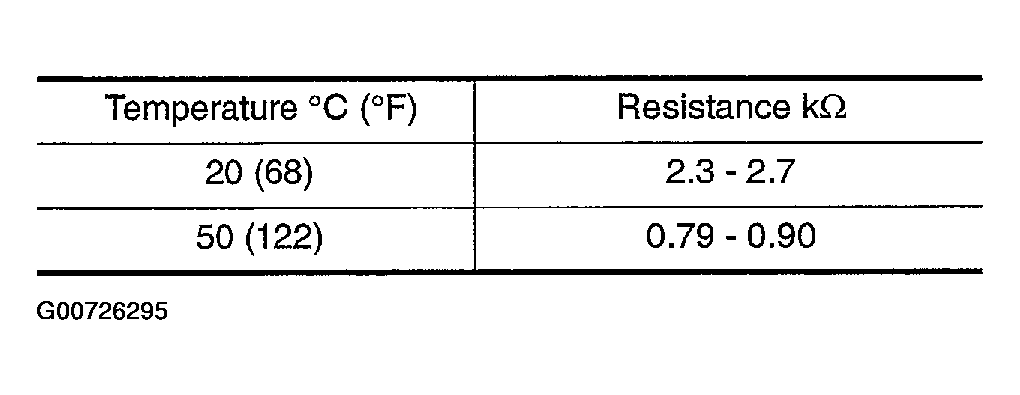

Fig 1: Identifying FTT Sensor Testing Specifications
G00726295Courtesy of NISSAN MOTOR CO., U.S.A.

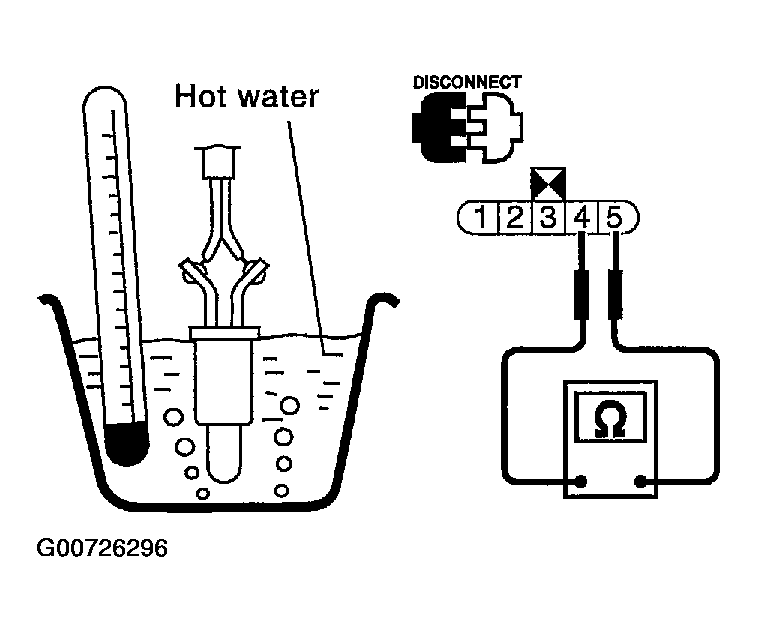

Fig 2: Testing Fuel Level Sensor Unit Resistance
G00726296Courtesy of NISSAN MOTOR CO., U.S.A.
