Testing Condition

Step 1 and 2 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test is expected to be easier, it is unnecessary to lift the vehicle.

With CONSULT-II

1. Start engine (TCS switch or VDC switch OFF).
2. Read VHCL SPEED SE in DATA MONITOR mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

   If NG, Go to DIAGNOSTIC PROCEDURE .

   If OK, Go to following step.

3. Select DATA MONITOR mode with CONSULT-II.

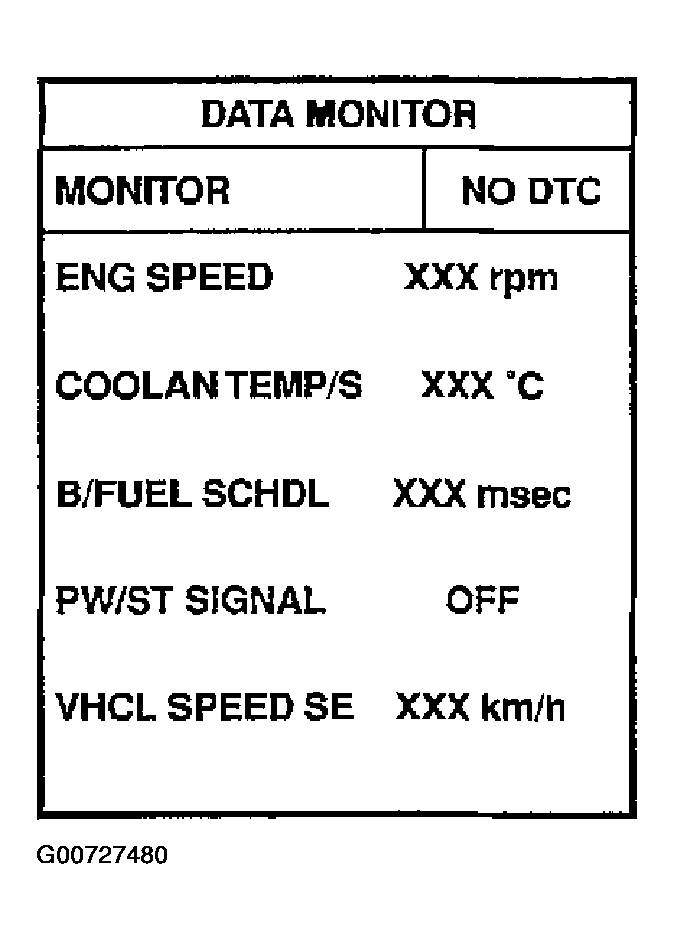

   Fig 1: Displaying VHCL Speed Sensor Results In Data Monitor Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Warm engine up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive seconds.

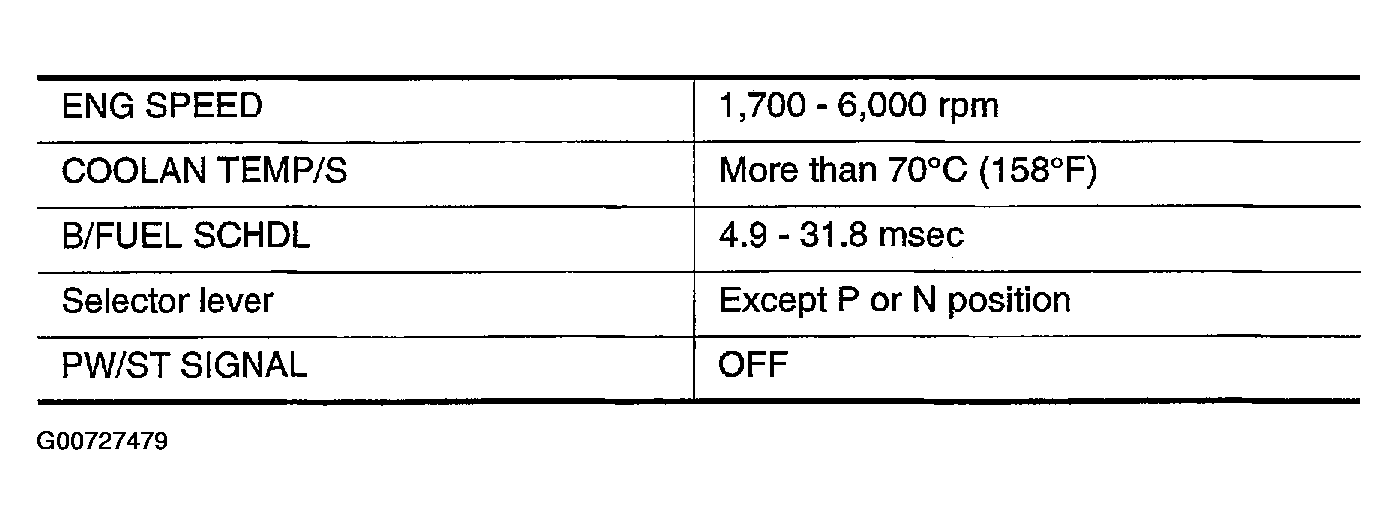

   Fig 2: Identifying Specified Conditions For Testing VHCL Speed Sensor (CONSULT-II)

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. If 1st trip DTC is detected, Go to DIAGNOSTIC PROCEDURE .
