Diagnostic Procedure

Check Ground Connections
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. See Figure. Refer to GROUND INSPECTION .
OK or NG
1. OK: Go to 2.
2. NG: Repair or replace ground connections.
Check PSP Sensor Power Supply Circuit
1. Disconnect PSP sensor harness connector. See Figure.
2. Turn ignition switch ON.
3. Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester.
  Voltage: Approximately 5V
OK or NG
1. OK: Go to 3.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

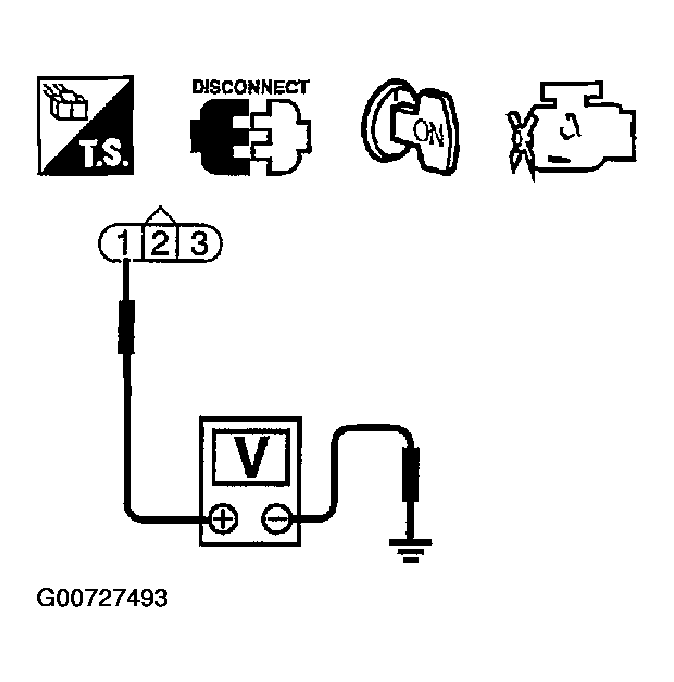

  Fig 1: Testing PSP Sensor Reference Voltage (DVOM)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Check PSP Sensor Ground Circuit For Open And Short
1. Turn ignition switch OFF.
2. Disconnect ECM harness connectors.

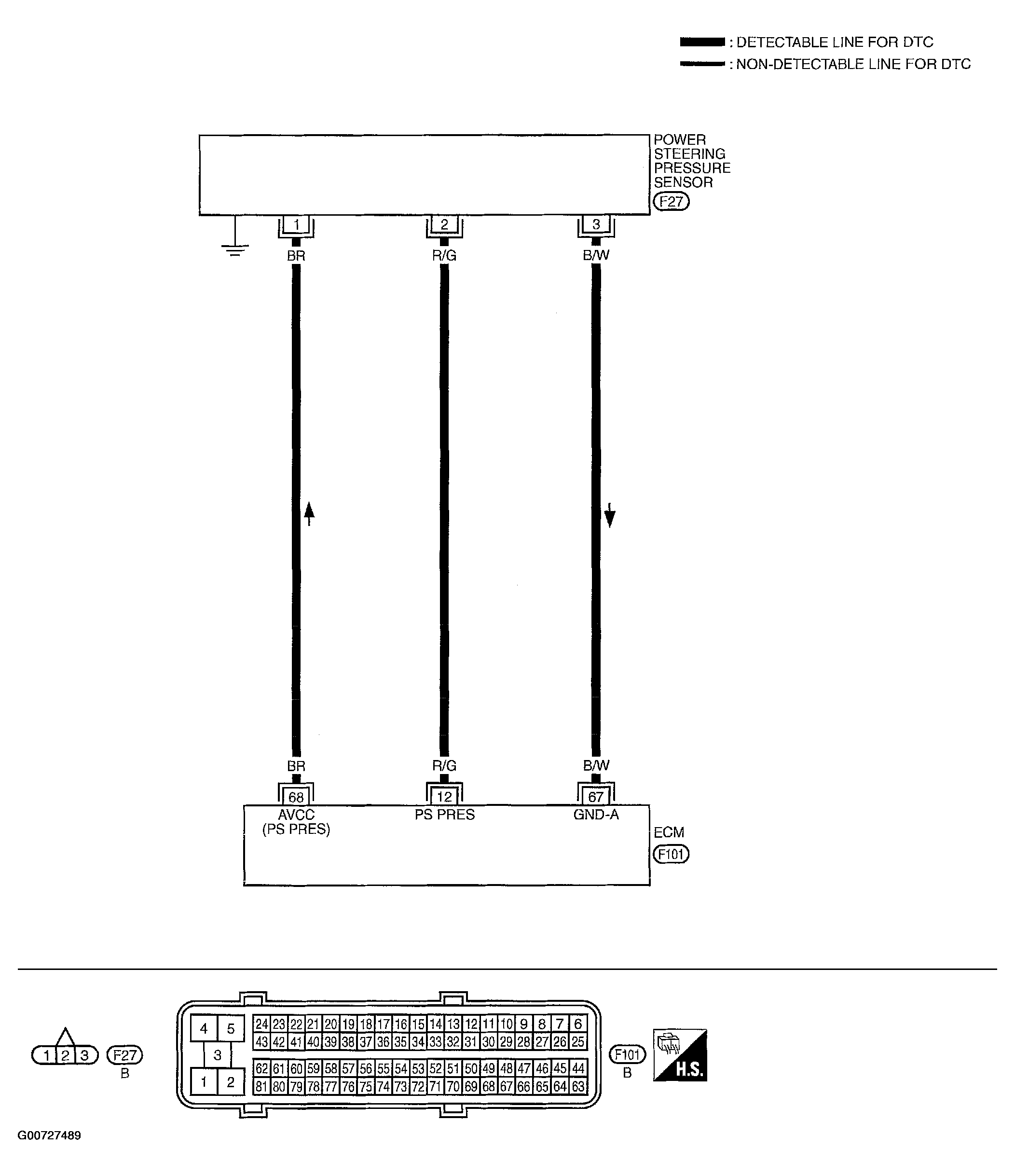

3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67. Refer to wiring diagram. See Figure.
  Continuity should exist .
4. Also check harness for short to ground and to power.
OK or NG
1. OK: Go to 4.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
Check PSP Sensor Input Signal Circuit For Open And Short
1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2.
  Continuity should exist .
2. Also check harness for short to ground and short to power.
OK or NG
1. OK: Go to 5.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
Check PSP Sensor
Refer to COMPONENT INSPECTION .

OK or NG
1. OK: Go to 6.
2. NG: Replace PSP sensor.
Check Intermittent Incident
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
1. Inspection end
