Throttle Control Motor
- Disconnect electric throttle control actuator harness connector .

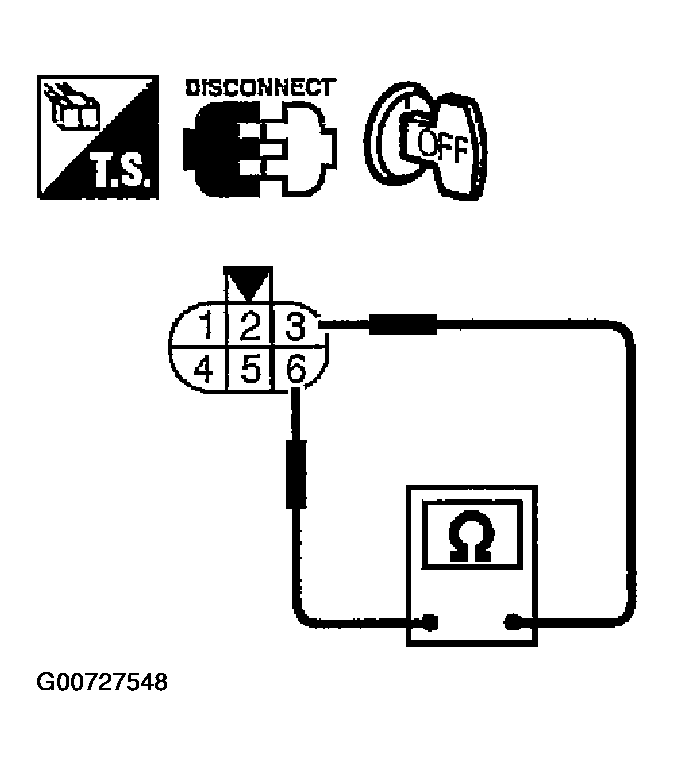

- Check resistance between terminals 3 and 6. See Figure.
Resistance: Approximately 1 - 15 ohm [at 25 ° C (77° F)]
- If NG, replace electric throttle control actuator and Go to next step.
- Perform THROTTLE VALVE CLOSED POSITION LEARNING .
- Perform IDLE AIR VOLUME LEARNING .
