DTC Confirmation Procedure
NOTE:
If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
With CONSULT-II
- Turn ignition switch ON and wait at least 2 seconds.

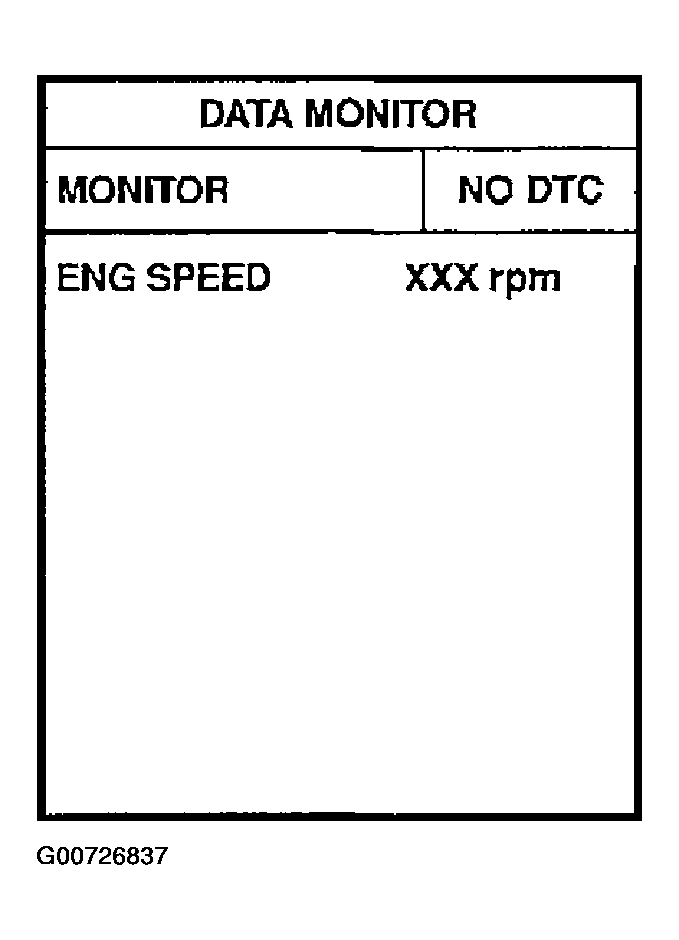

- Select DATA MONITOR mode with CONSULT-II. See Figure.
- Start engine and let it idle for 5 seconds.
- If DTC is detected, Go to DIAGNOSTIC PROCEDURE .
With GST
Follow the procedure with CONSULT-II above.
