DTC P1128 Throttle Control Motor: Wiring Diagram
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
NOTE:
These are circuit specific wiring diagrams. For system wiring diagrams, see SYSTEM WIRING DIAGRAMS
. For wiring diagram references to PG-POWER
, see POWER DISTRIBUTION
. For component locations, see ELECTRICAL COMPONENT LOCATOR
.
For Electric Throttle Control Actuator Circuit, see Figure.

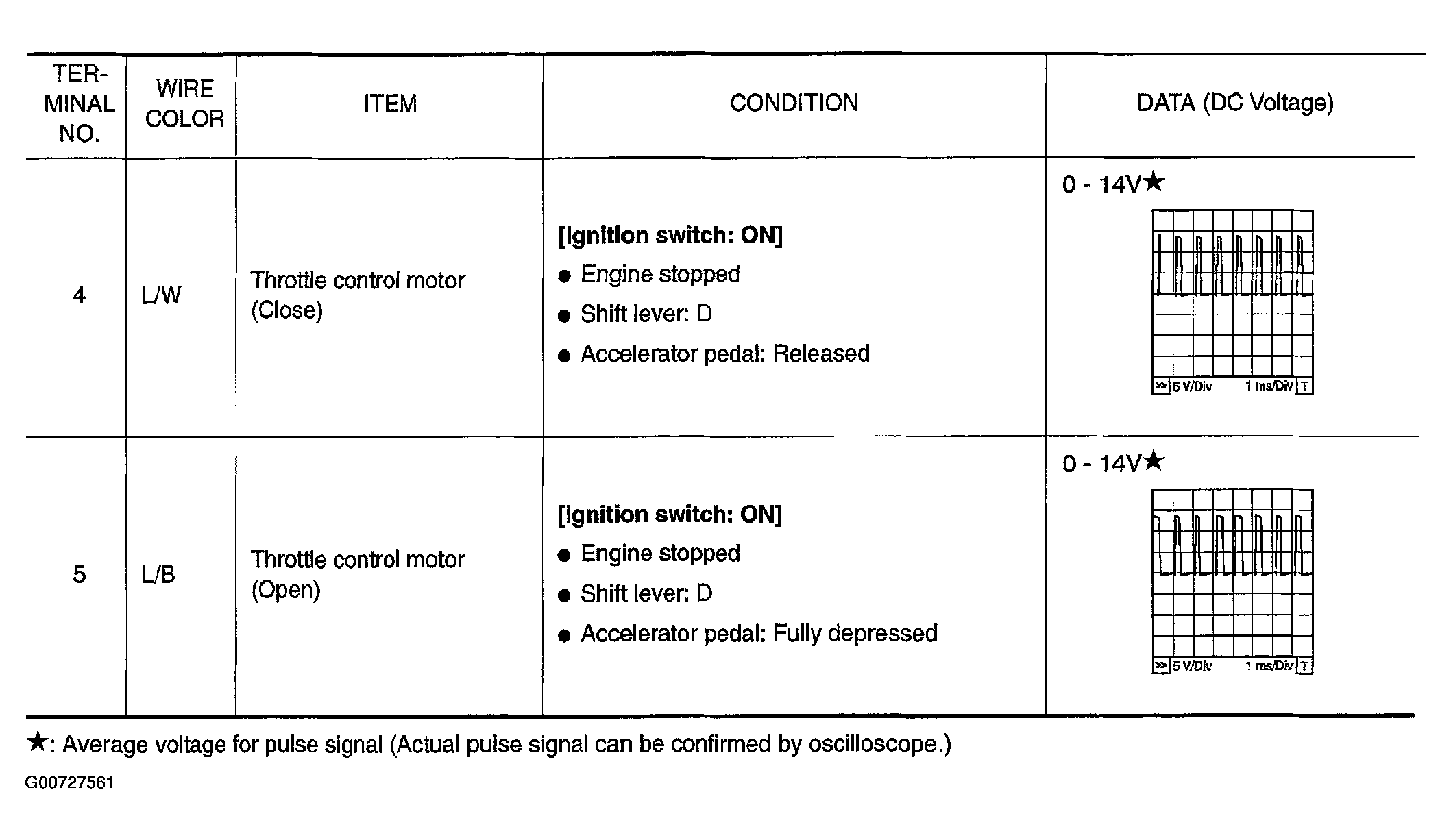

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.
