DTC P1217 Engine Over Temperature: Wiring Diagram

NOTE: These are circuit specific wiring diagrams. For system wiring diagrams, see SYSTEM WIRING DIAGRAMS . For wiring diagram references to PG-POWER  , see POWER DISTRIBUTION . For component locations, see ELECTRICAL COMPONENT LOCATOR .

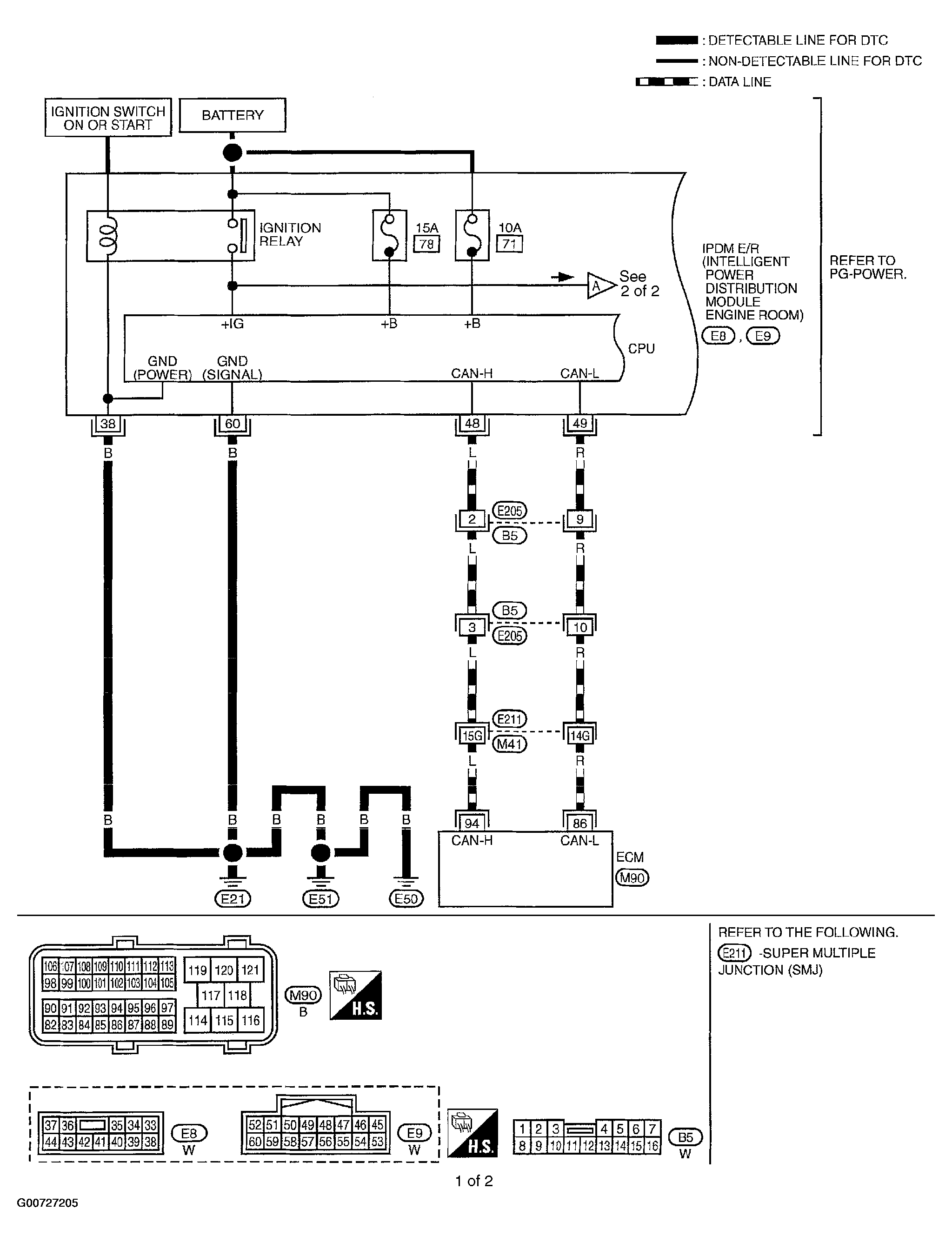

Fig 1: Cooling Fan Relay Circuit (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

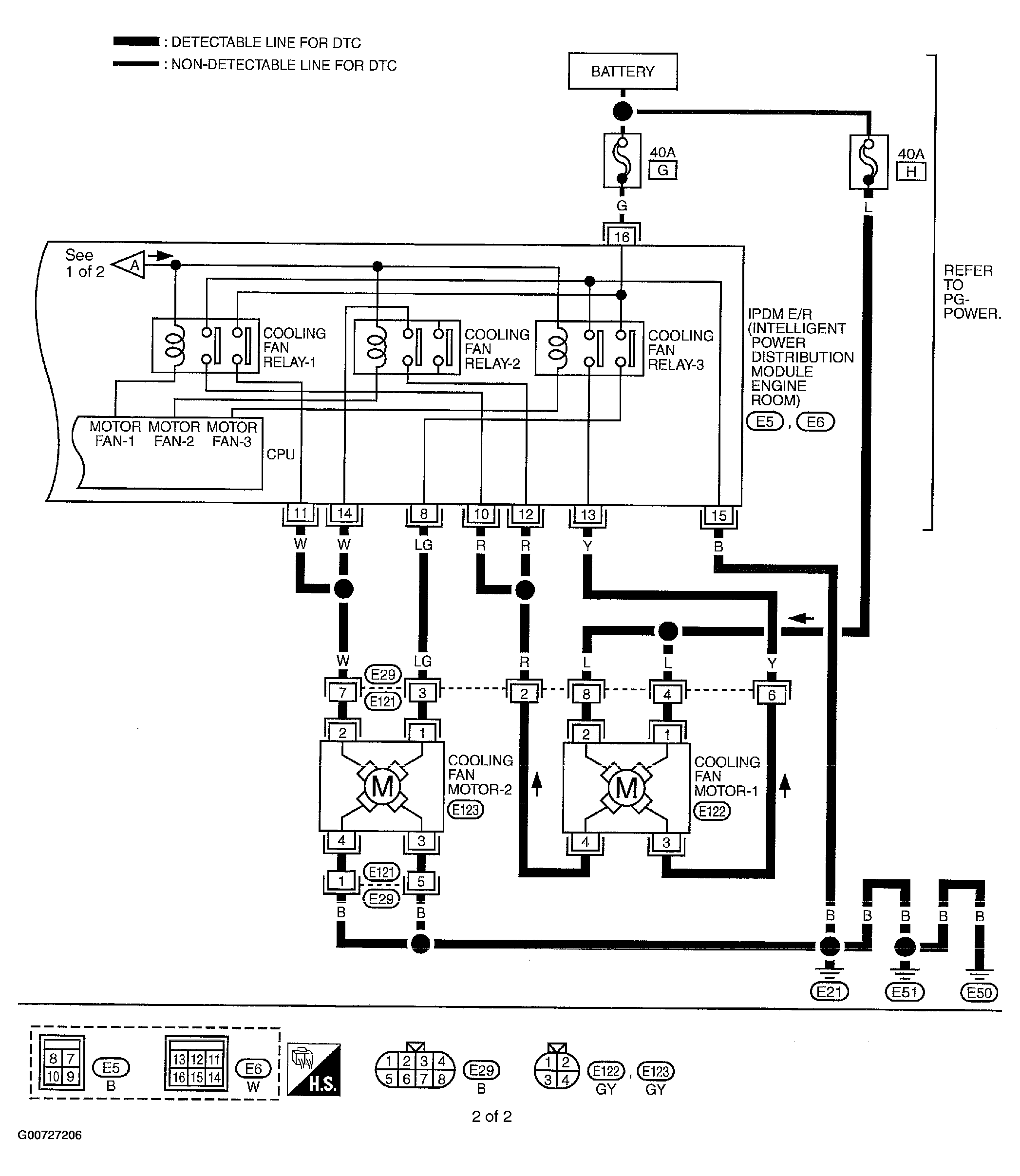

Fig 2: Cooling Fan Relay Circuit (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
