ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

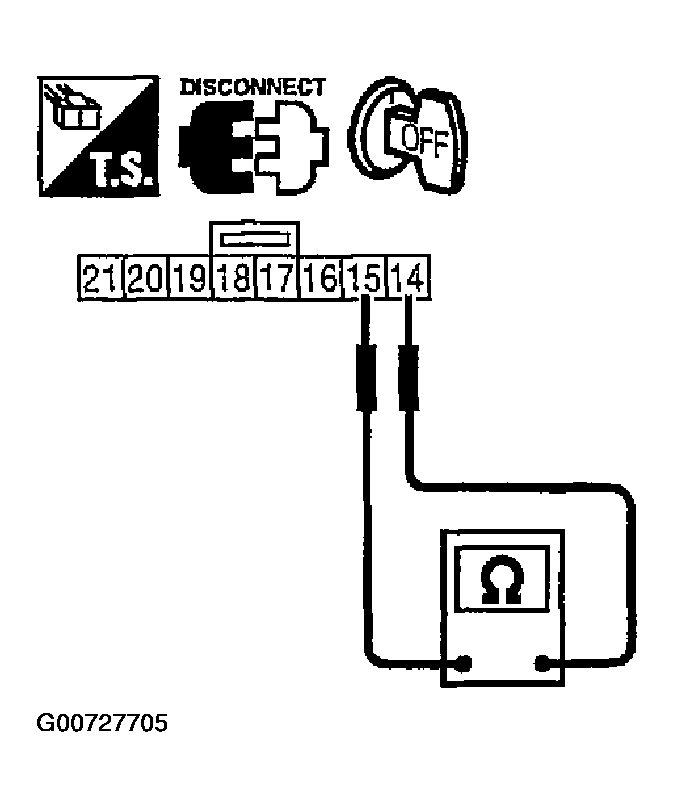

    Fig 1: ASCD Steering Switch Resistance Specifications (W/DVOM)
    G00727705Courtesy of NISSAN MOTOR CO., U.S.A.

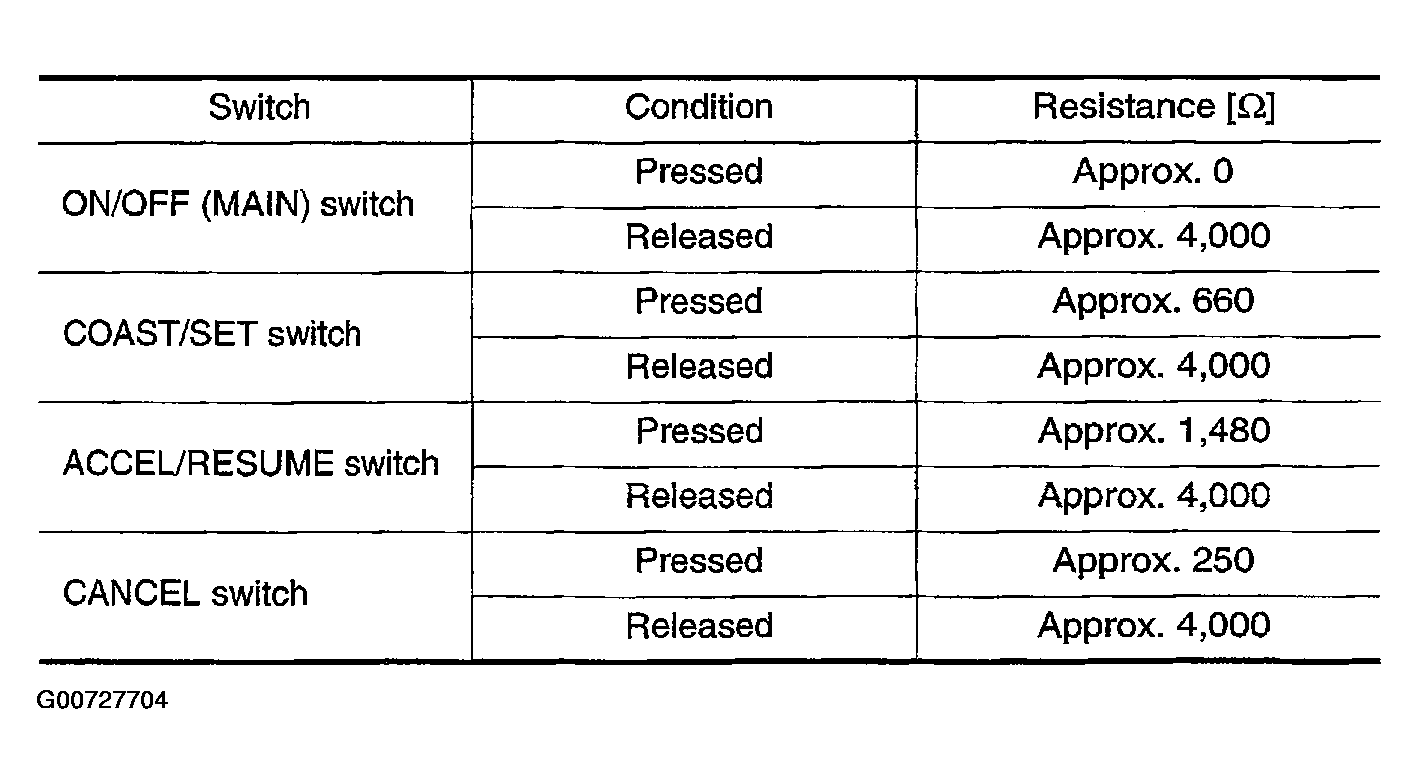

    Fig 2: ASCD Steering Switch Resistance Specifications (W/DVOM)
    G00727704Courtesy of NISSAN MOTOR CO., U.S.A.
