Component Description

ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

Refer to INTELLIGENT CRUISE CONTROL SYSTEMS for the ICC function.

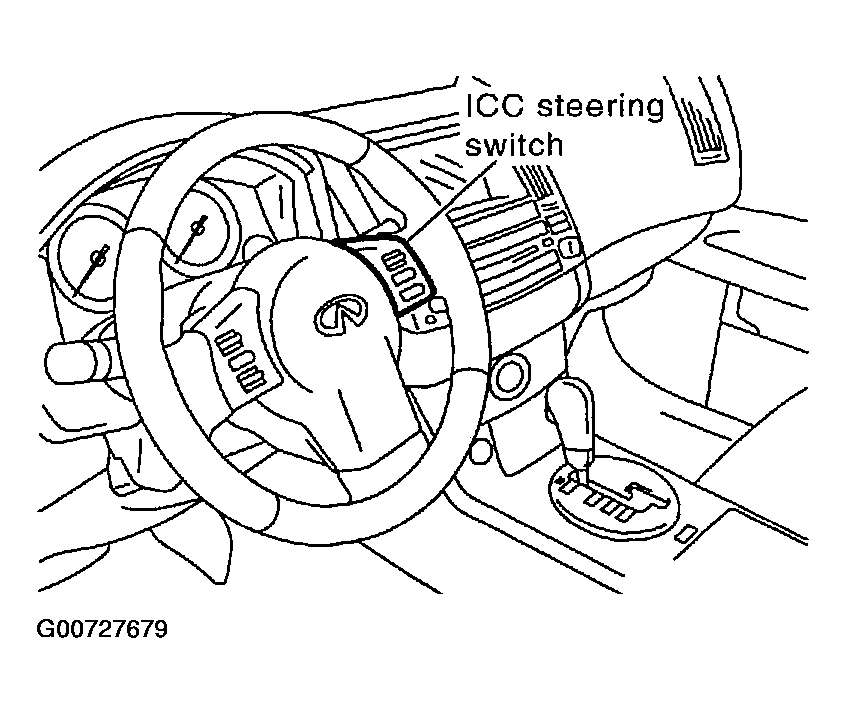

Fig 1: Locating ICC Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
